EFCO CORPORATION 1/2013 PART NO. Y001 Page 24 of 94
Series 401,402, & 403 Installation Instructions
Misc. Parts:
Drawings on this page are not to scale.

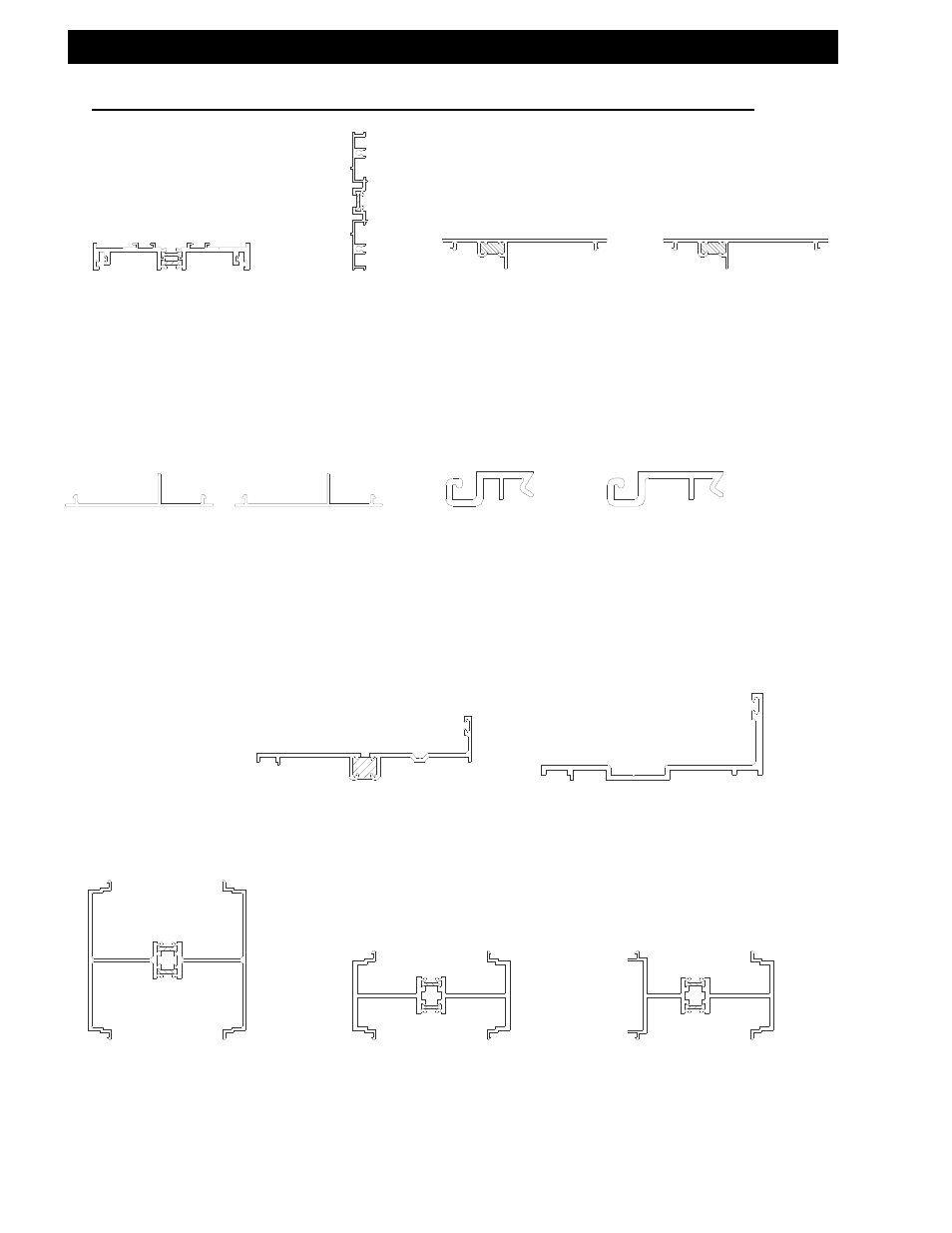

SECTION II: C. S403 PARTS IDENTIFICATION
1G13
Adjustable Side
Lite Base
Horizontal W/
BRK. MTL.
Use W/ 1G14
Use 9229 Glass
Stop
Use W104
Weathering
1G14
Adjustable Side
Lite Base
Vertical W/ BRK.
MTL.
Use W/ 1G13
4420
Stock Length
Open Back Filler
Open Back
Frames
(See FU99)
FU99
3” Perimeter
Adaptor Clip
Open Back
Frames
(See 4420)
L132
120” Lightweight
PVC Perimeter
Adaptor
Use W/ 9320,
9345 & 9347
FV59
3” Perimeter
PVC Adaptor
Clip
Use W/ 9320,
9345 & 9347
9260
Glazing Adaptor
For ½” Glass in
1” Glazing
Pocket
9261
Glazing Adaptor
for ¼” Glass in 1”
Glazing Pocket
9938
Shadowline
Window Adaptor
Equal Leg
Use W104
Weathering
8643
System II
Window Adaptor
Equal Leg
Use W104
Weathering
1G15
Horiz. / Vert.
Stack Adaptor
4” Sightline
1G69
Horiz. / Vert.
Stack Adaptor
2” Sightline
1G68
Horiz. / Vert.
Stack Adaptor
2” Sightline
W/ Revel
