Page 17
EFCO CORPORATION 1/2013 PART NO. Y001
Page 17 of 94
Series 401,402, & 403 Installation Instructions

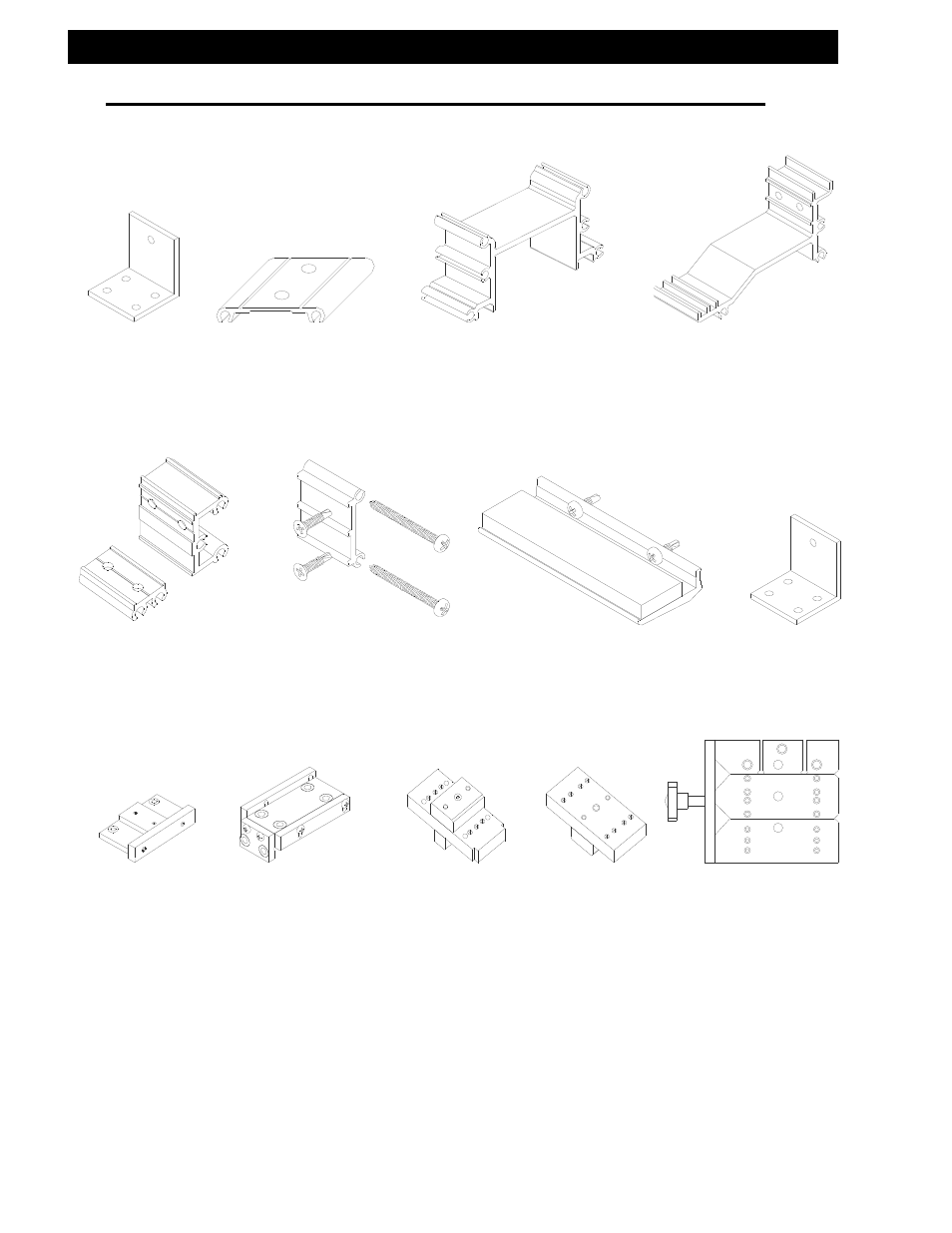

Shear Blocks & Drill Jigs
Drawing on this page are not to scale
SECTION II: B. S402 PARTS IDENTIFICATION
K124
(clr)
K125
(brz)
O.P. & Butt
Hinge
Screws Included
K126
C.O.C.
Threshold Clip
Pkg.
Screws Included
K129
(clr)
K130
(brz)
Header Shear
Block
Pkg.Screws
Included
K173
Horizontal
Shear Block
Pkg.
Screws Included
Use W/ 9236,
9247 or 9248
K358
H.D. Horizontal
Shear Block
Pkg.
Use W/ 9270
Screws Included
DJ01
Shear Block
Drill Fixture
(Head Members
To Shear
Blocks)
DJ02
Shear Block
Drill Fixture
(Horizontals to
Shear Blocks)
H700
Economy Drill
Guides
(Shear Block to
Vertical)
H702
Economy Drill
Guides
(Screw Spline
Application)
H381
Shear Block /
Screw Spline
Drill Fixture
(At Verticals)
K153
(clr)
K154
(brz)
Threshold Clip
Pkg. for Conc.
Rod Panic
Screws Included
KN93
402 / 403 2-
Piece Horiz.
Setting Chair
Pkg.
KN92
402 / 403 2-
Piece Rolled
Head Shear
Block Pkg.
