EFCO CORPORATION 1/2013 PART NO. Y001 Page 12 of 94
Series 401,402, & 403 Installation Instructions
9236
Tubular Side Lite
Horizontal
Use W/ 9229
Glass Stop
9245
Head
Use W/ 9246
Adaptor
9247
Open Back Sill
or Horizontal
Use W/ 9229
Glass Stop
9246 adaptors
9248
4 ½” x 4 ½” Side
Lite Base
Use W/ 9229
Glass Stop
9246 or 9221
Adaptors or Use
9149 Anchor
9268
Open Back Head
for Round Tops
Use W/ 9269
Glass Stop
FS93 Peri. Adpt.
9149
4 ½” x 4 ½”
Side Lite Anchor
Base
Use W/ 9248
9270
Heavy-Duty
Tubular
Horizontal
Use W/ 9271
Glass Stop
Use K358 Shear
Block PKG.
9160
Adjustable Side
Lite Base
Horizontal W/
BRK. MTL.
Use W/ 9161
Use 9253 Glass
Stop
Use W104
Weathering
9231
8” Horizontal
Self-Mating
Use (2) K129
Shear Block
Use Removable
Stop Horizontals
Above & Below

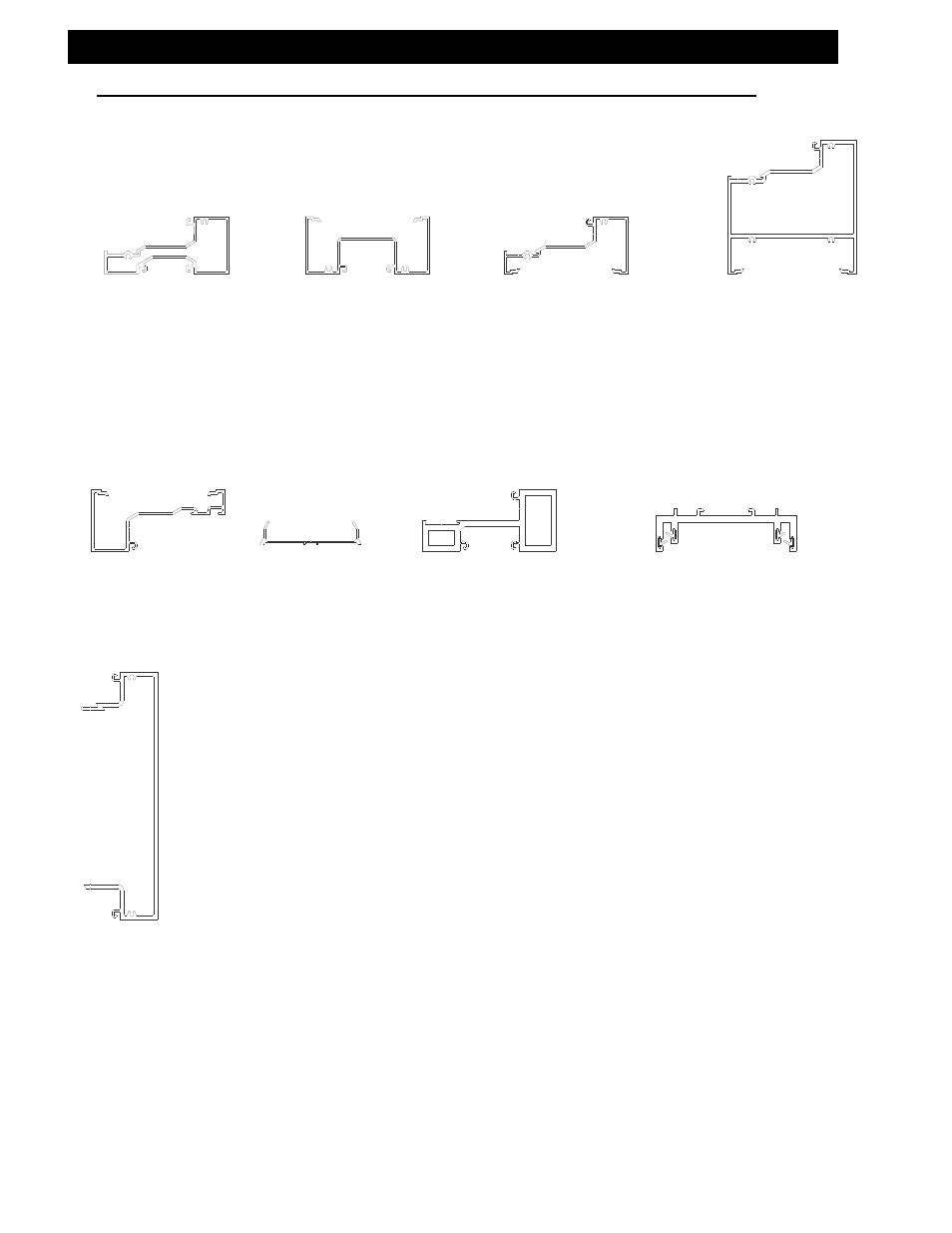

Horizontal Parts:
Drawings on this page are not to scale.
SECTION II: B. S402 PARTS IDENTIFICATION
