Series 401,402, & 403 Installation Instructions
Horizontal Parts:

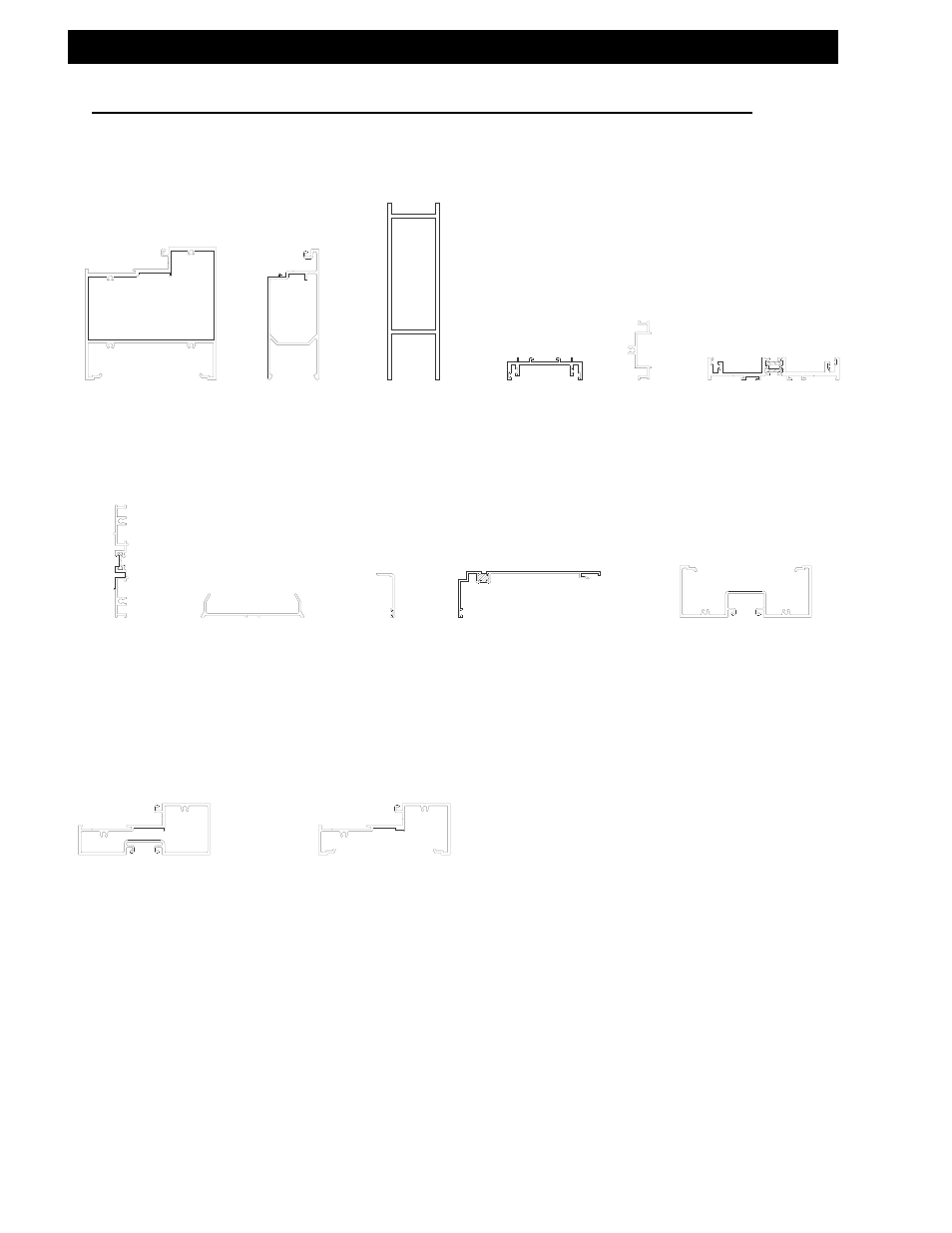

Drawings on this page are not to scale.
SECTION II: A. S401 PARTS IDENTIFICATION
9148
4 ½” x 4 ½” Side
Lite Base
Use W/9129
Glass Stop.
Use W/9121,
9146 or 9149
9131
4 7/16” Side
Lite Base
Use W/9132
Adaptor Foot
Use 9133 Glass
Stop
9137
7 11/16” Side
Lite Base
Use W/ 9133 &
9138, 9132
Adaptor Foot
9160
2 9/16” Deep
Adjustable Side
Lite Base Horiz.
W/ BRK. MTL.
Use W/9161
Vertical
Use (2) 9133
Glass Stops
Use W104
Weathering
9161
2 9/16” Deep
Adjustable Side
Lite Base
Vertical W/BRK.
MTL.
Use W/ 9160
Horizontal
1G13
4 ½” Deep
Adjustable Side
Lite Base
Horizontal
W/BRK. MTL.
Use W 1G14
Vertical
Use (2) 9129
Glass Stops
Use W104
Weathering
1G14
4 ½” Deep
Adjustable Side
Lite Base
Vertical W/BRK.
MTL.
Use W/1G13
Horizontal
9149
4 ½” x 4 ½” Side
Lite Anchor Base
E178
Frame Receptor
Closure
Use W/1510
Use WA04
Weathering
1510
Frame Receptor
Use E178
Closure
Use WA04
Weathering
9145
Head
Use W/9146
Adaptor
9128
Intermediate
Horizontal
Use W/9129
Glass Stop
9147
Open Back Horizontal
w/ Sill Use W/9129
Glass Stop Use W/
9121 Glz. Adaptor or
FS92 / 9146 Filler
