Document #98219100 1 - 5
Computer Placement
The driver of the vehicle must be able to view the
computer monitor and the DynoWare EX+ during
a run. If you will be running both front and rear
wheel drive vehicles you will need to find a way
for the driver to see them both.

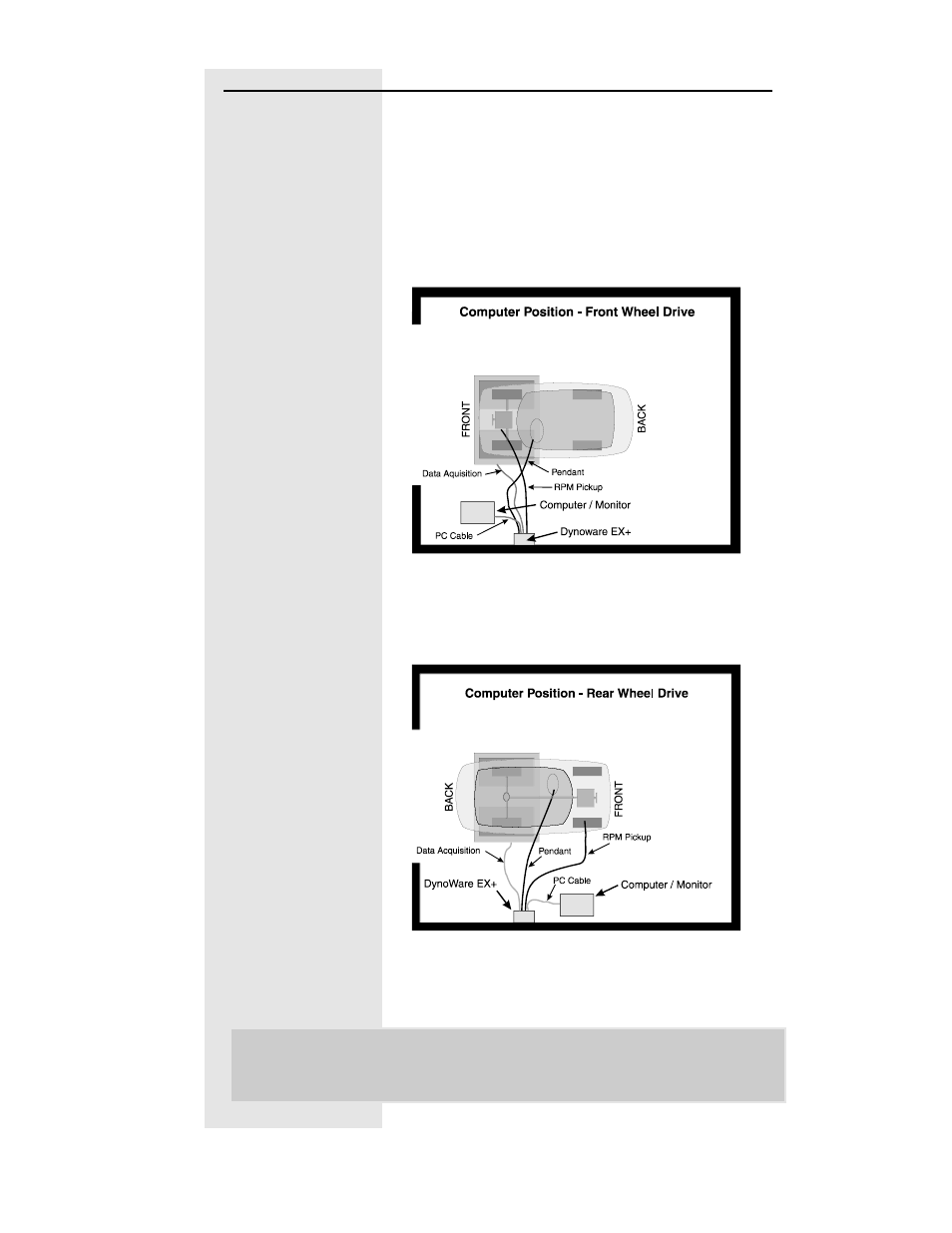

This image represents the location of the
computer and DynoWare EX+ for a front wheel
drive car.
This image represents the location of the
computer DynoWare EX+ for a rear wheel drive
car.
Note: A possible solution would be to place
the computer and the DynoWare EX+
modules on a movable cart.
