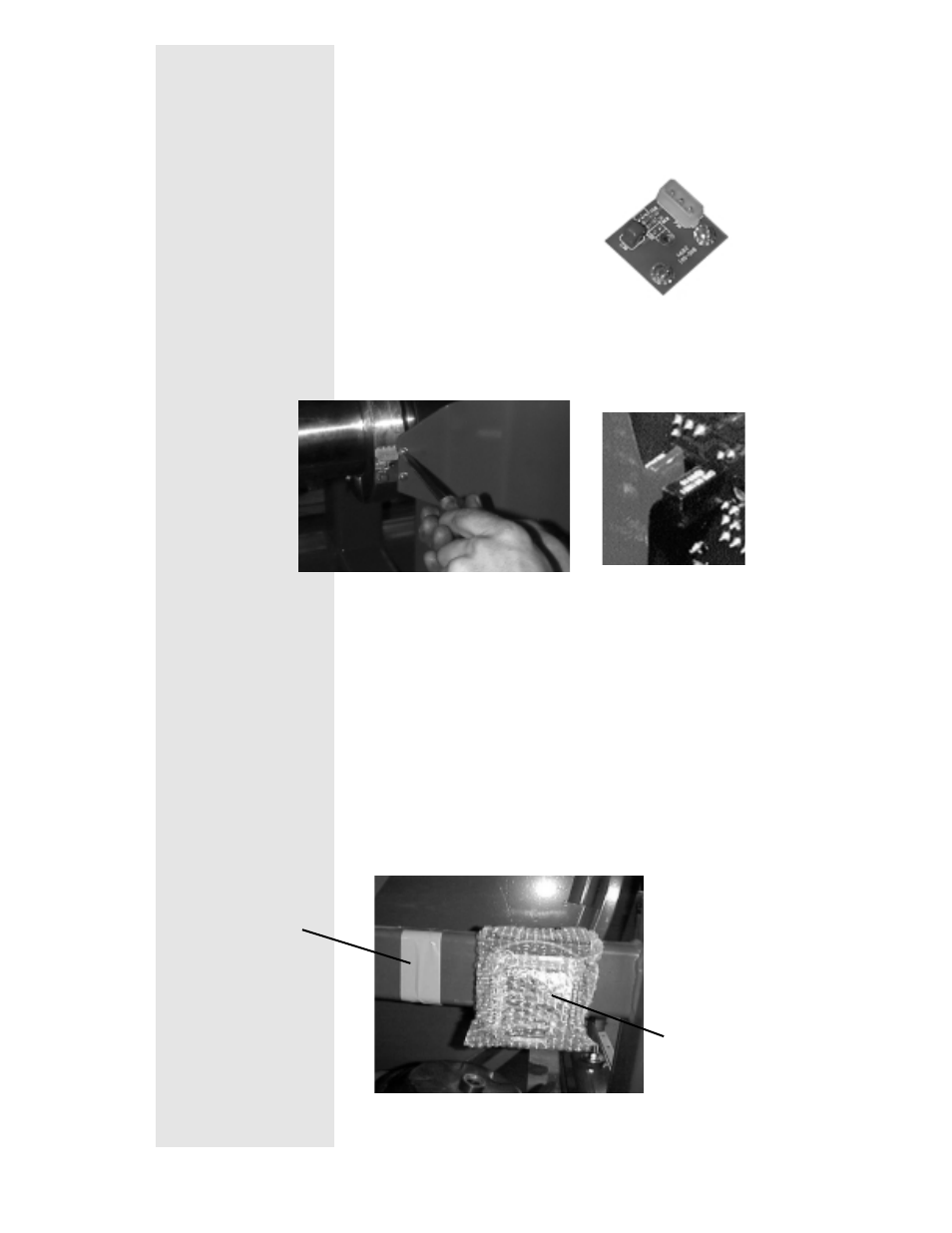

Step 1
Install the pickup card.
Remove the pickup card and the 2 screws
from the bubble bag.
Attach to the pickup bracket on the dyno so
the optical pickup is facing the axle and the 3
pronged plug is facing away.
Turn the drum carefully and check to see that
both pickup tabs on the dyno axle go through
the center of the optical pickup on the pickup
card.
Step 2
Prepare the Breakout Board
- Remove the Bubble Bag from the Breakout
Board and bracket.
This tape secures
the Pick Up Card to
the dyno during
shipping.
Break Out Board
