Step 2
Connect your shop air to the dyno.
Mount the Air Pressure Regulator on the wall
in the shop with the bracket provided.
Connect a supply air hose to the inlet of the
regulator from your shop air supply.
Note: Make sure the arrow on the regulator is
the same as the direction of the air flow!
Connect a 3/8" air hose to the outlet side of
the regulator. Connect the other end of the air
hose to the barbed inlet fitting on the Air
Control Switch (Standard Air) or the Booster
Valve Assembly (Proportional Air) on top of
the right air canister on the dyno.
Note: The regulator should be set to 60 psi.

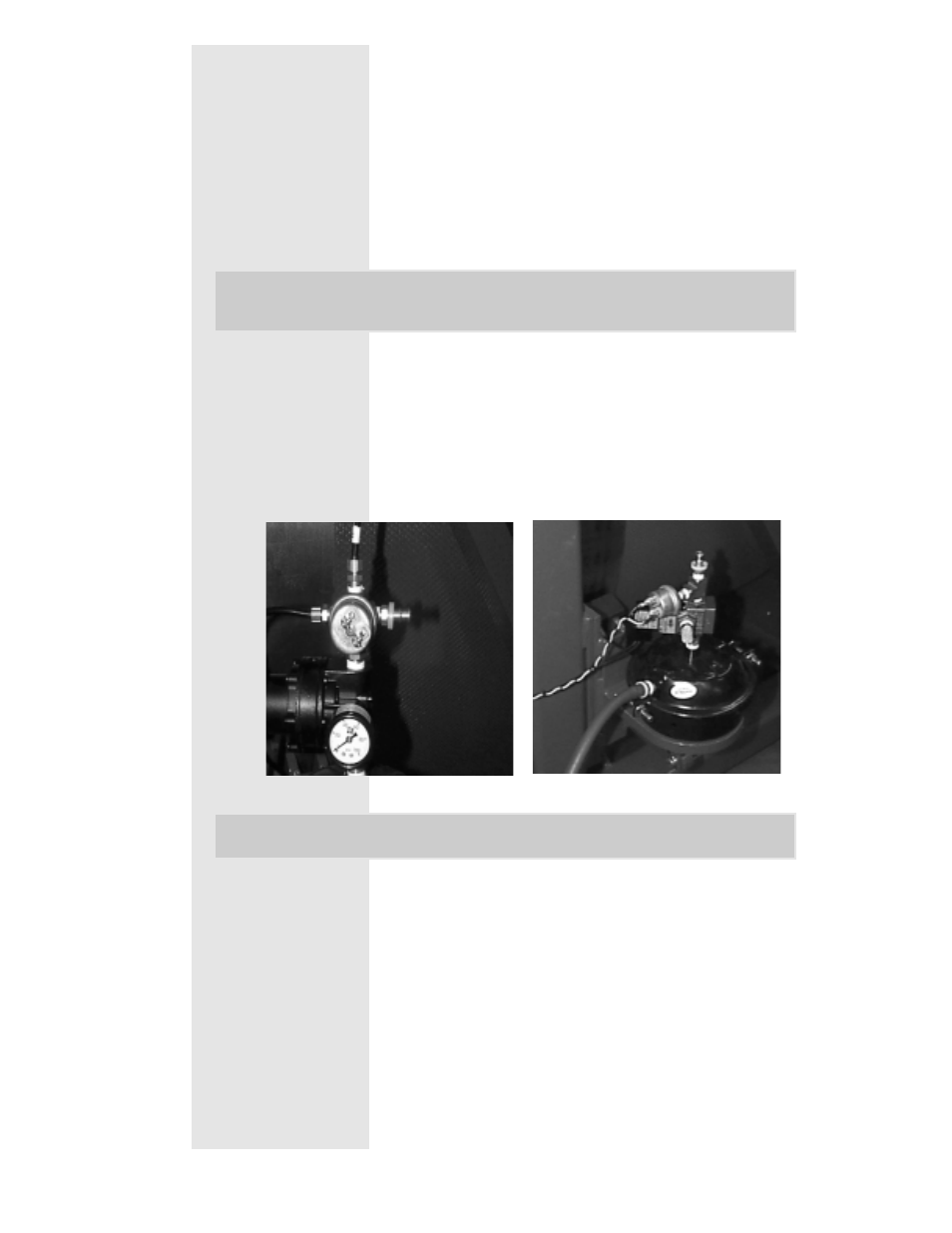

Proportional Air Standard Air
