Installing the Brakes
Use the following steps to install the brakes on
your Dynojet Dyno:
Step 1
Locate the brake hardware. You should have six
5/8" bolts, six lock washers, six flat washers, six
nuts (mounted on the dyno) and two brakes.
Step 2

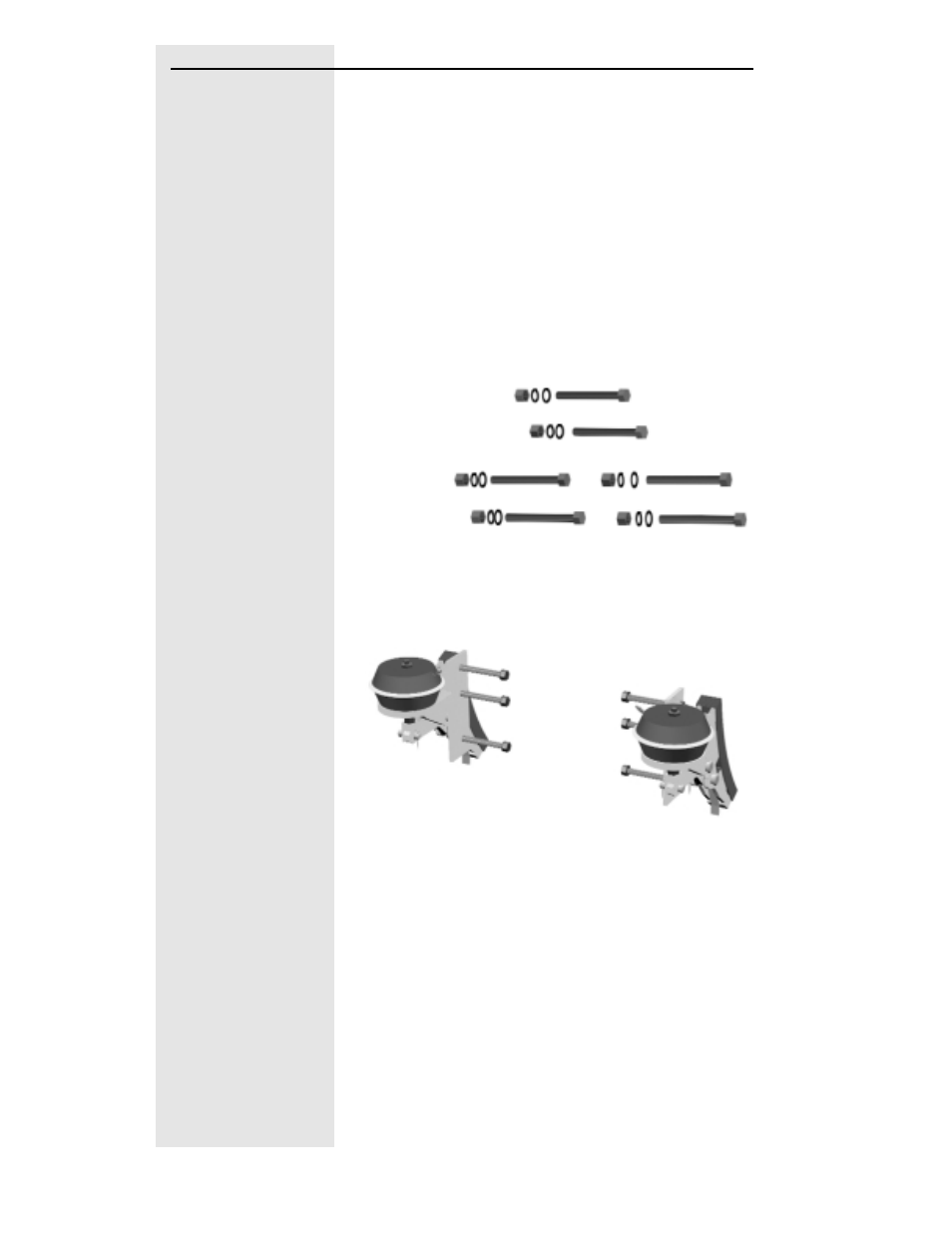

The brakes mount on the inside of the dyno
frame with the air canister on the top. Identify
the left and right brakes. As shown in the figure
above, the brakes can only be mounted one way.
Left
Right
