1 - 4 Document #98219100

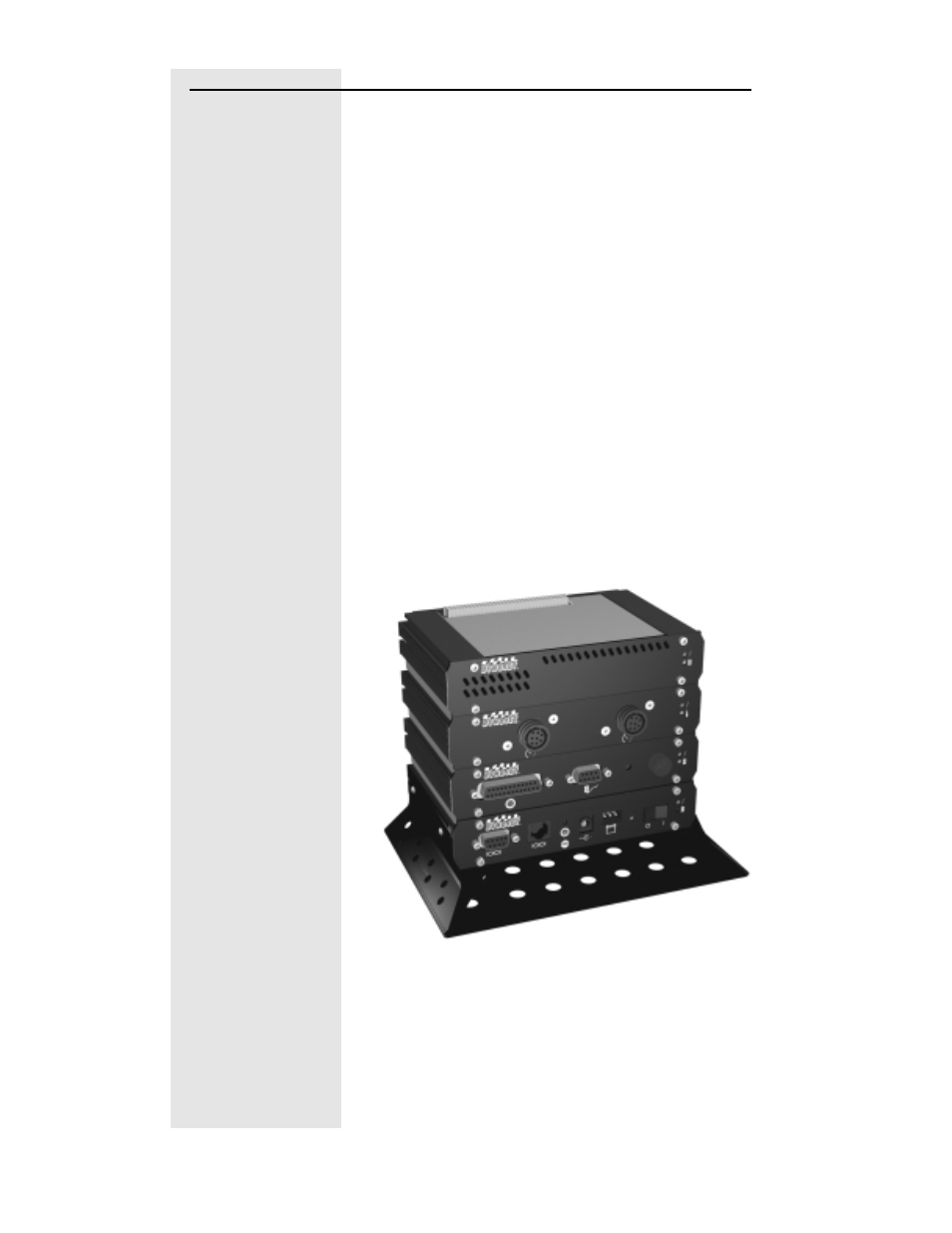

DynoWare EX+ Placement
The DynoWare EX+ system is comprised of four
modules: the CPU module, the Dynamometer
Input/Output module, the RPM module and the
Atmospheric module. The Dynamometer
Input/Output module connects to the
dynamometer. (A 20 foot (6.1 meter) long cable
is provided.) The CPU module connects to a
personal computer. (A 12 foot (3.7 meter) long
cable is provided.) RPM Pickups and a Hand
Held Pendant also connect to the modules. These
modules need to be located where they will be
visible during a dyno run. It is recommended that
they be mounted on a shelf on the wall or on a cart
along side the PC. An optional extended Hand
Held Pendant cable is available if needed.
