Dynojet 248x: Pit Installation Guide User Manual
Page 33
Document #98219100 3 - 11

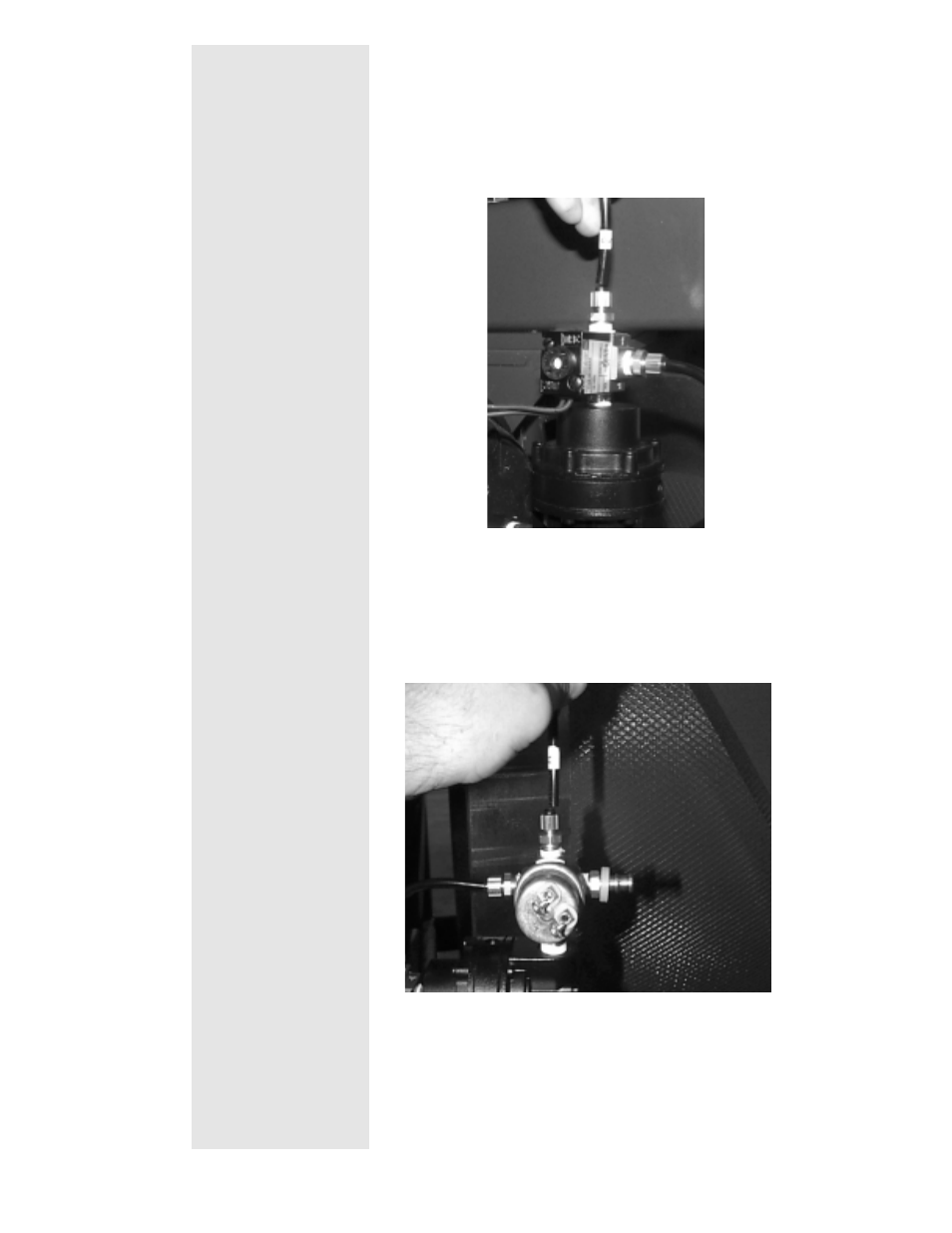

The line labeled "OUT" is connected to the 3-
way valve. Push the hose in then hand tighten
the fitting. Pull on the hose to ensure it is
seated properly. If it moves, tighten the fitting
more.
The line labeled "IN" is connected to the brass
cross. Push the hose in then hand tighten the
fitting. Pull on the hose to ensure it is seated
properly. If it moves, tighten the fitting more.
