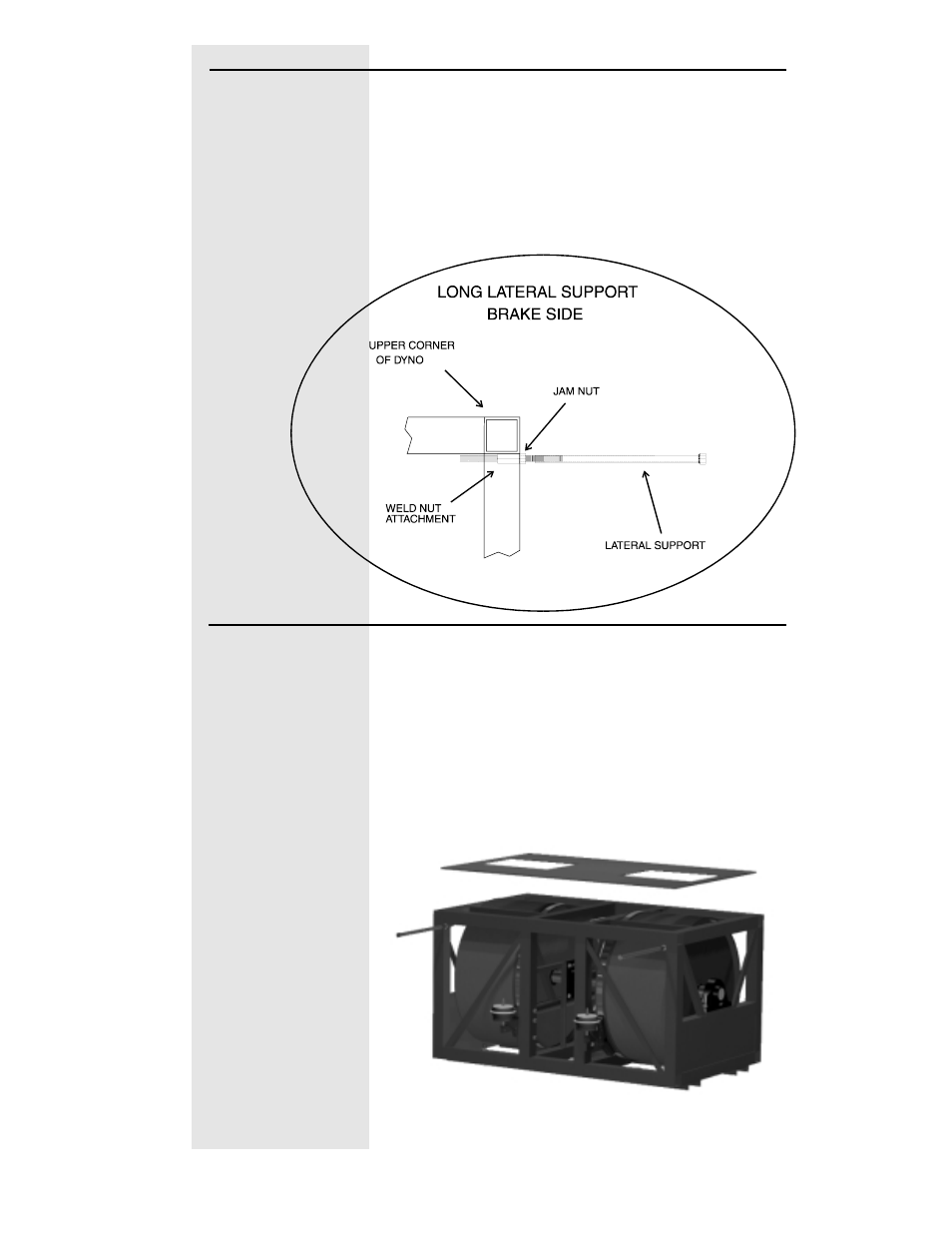

Installing the Long Lateral Supports.

Install both of the Long Lateral Supports on the

brake side of the dyno. Thread the supports all the

way into the dyno providing clearance during the

pit installation.

Lowering the Dyno Into the Pit

Step 1

Remove the screws holding the dynamometer

cover in place and remove the cover.
