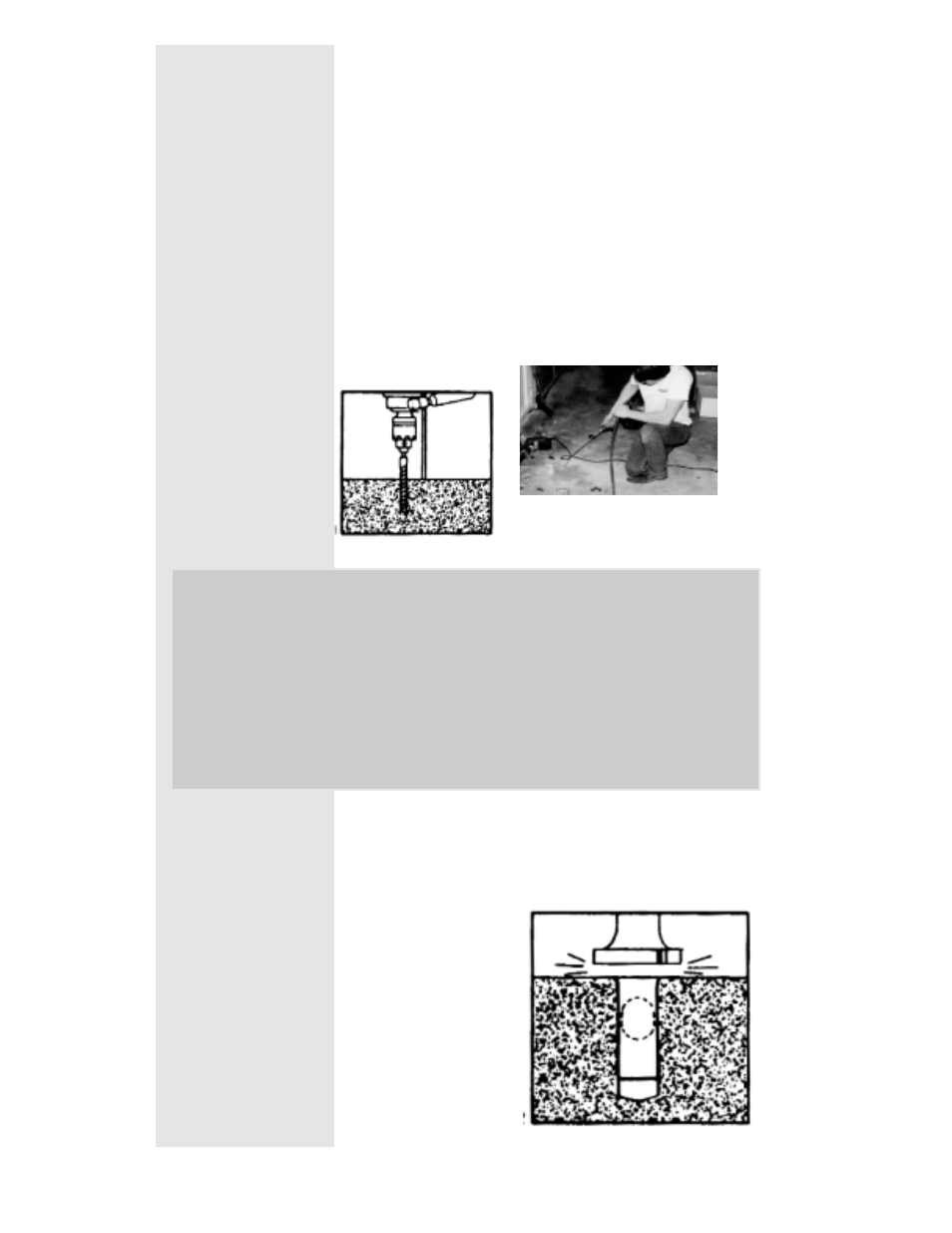

Installing the Anchors
Step 1
Using an Impact Drill, drill the two holes in the
cement at each location on the drawing in
Appendix A. (Use a ring plate as a template for
the precise hole placement.) You will need a
1/2" drill bit to drill a hole to a minimum depth
of 1 5/8". Clean the cuttings and debris from the
hole.
Clean out Debris
Note: (1) The use of a carbide drill bit is
recommended for the installation of this
anchor.
(2) Do not use core drills to drill hole for
this anchor.
(3) Always wear safety glasses and other
necessary protective devices or apparel
when installing or working with anchors.
Step 2
Drive anchor into the hole flush with the surface
of the concrete.
