Dynojet 248x: Pit Installation Guide User Manual

Page 7

Document #98219100 1 - 3

Note:

The Dynamometer drums can rotate in
either direction

Choose the Dyno placement that best matches

your shop and types of vehicles you work on.

Note:

Refer to the technical drawings in
Appendix A.

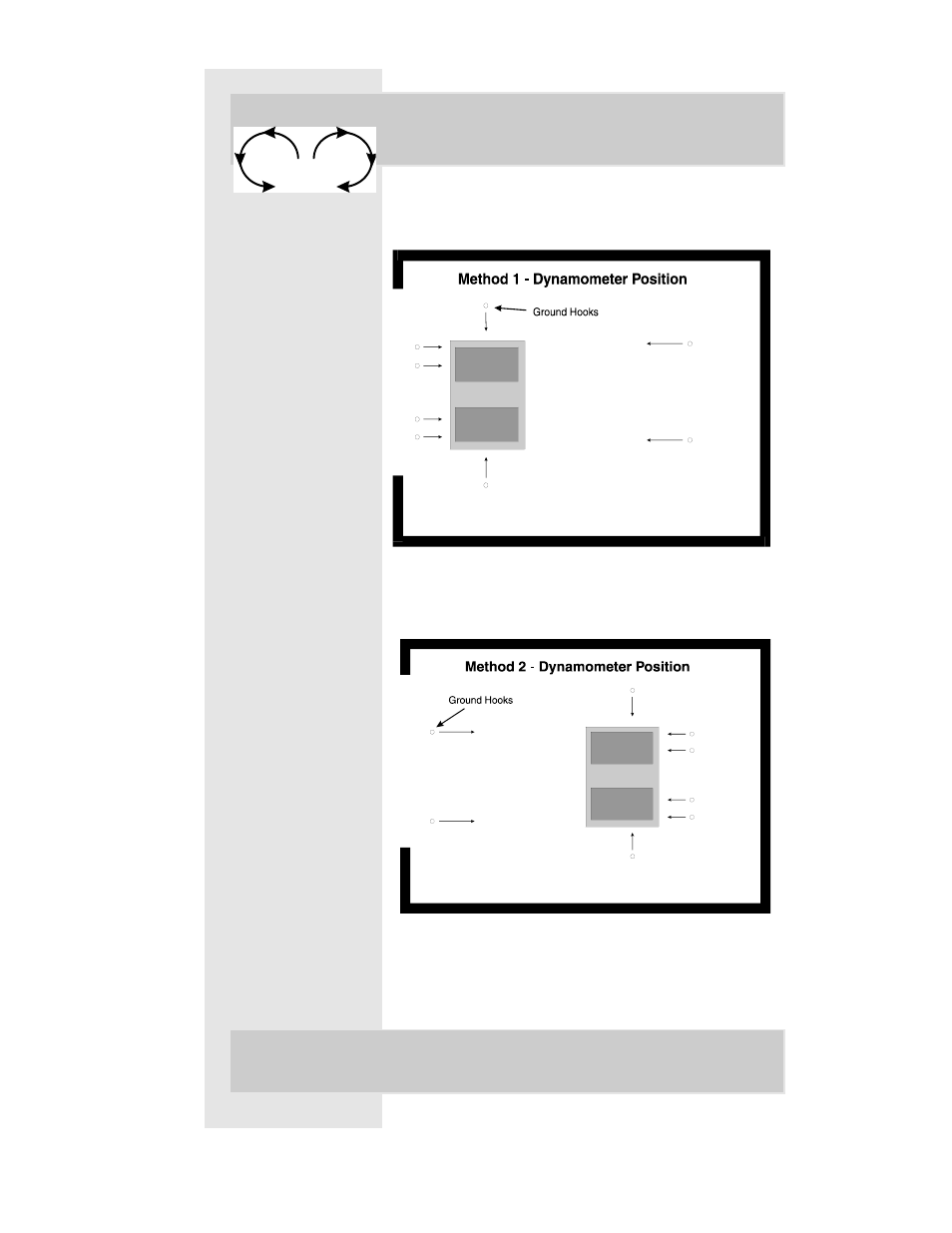

This image represents a dyno near the garage door.

This image represents a dyno away from the garage

door.
