Document #98219100 3 - 9

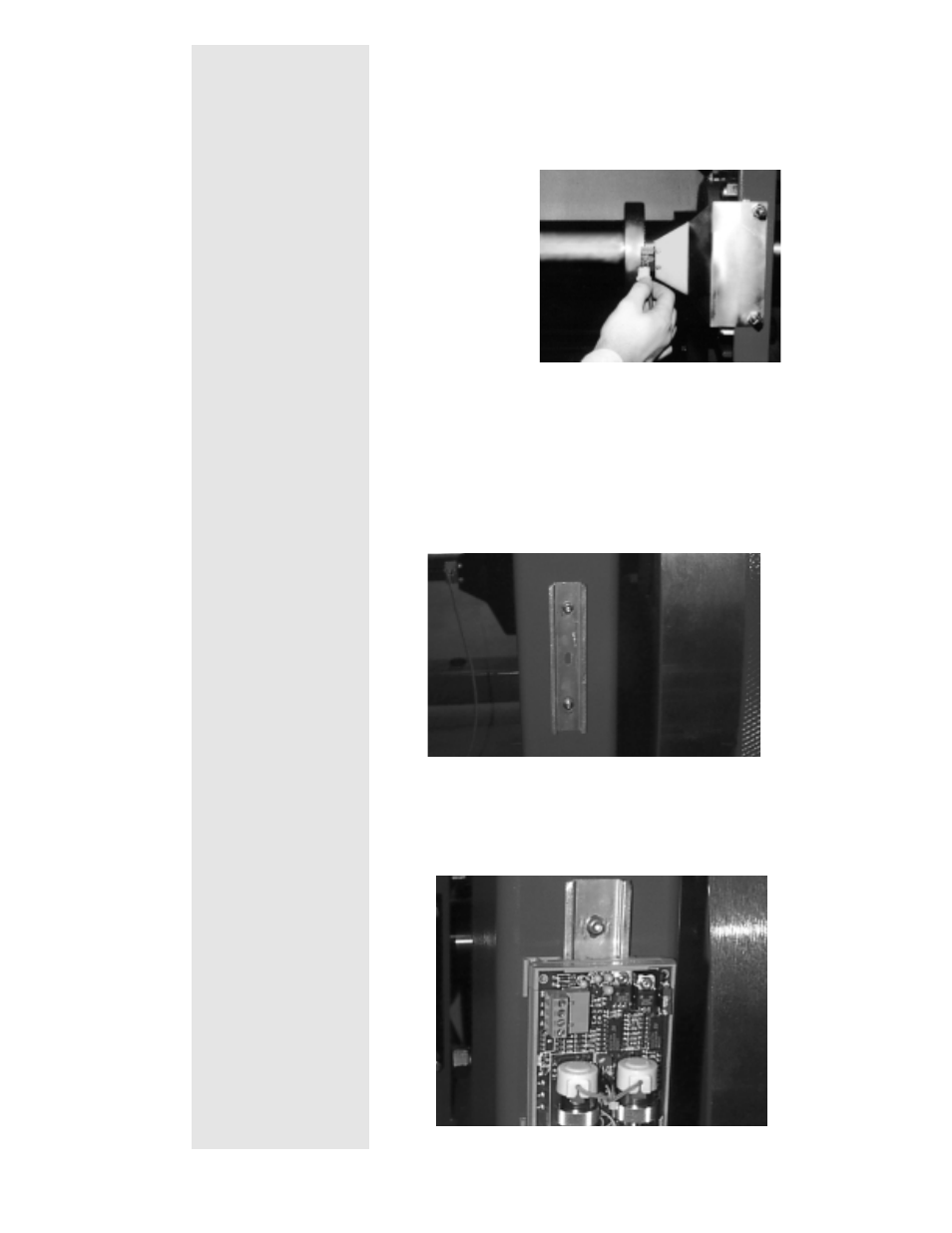

- The Data Acquisition Cable is coiled around the
Breakout Board. Uncoil the cable and Plug the
cable into the Pickup Card on the dyno.
Standard Air Step 3
(Skip to Step 4)
Proportional Air Step 3
Install the electronic regulator.
Locate the DIN rail on the right side 4X4 post.
The electronic pressure regulator snaps onto
the DIN rail. Hook one side on the DIN rail
then rotate electronic pressure regulator toward
the DIN rail until it snaps into place.
