Document #98219100 3 - 1
Chapter 3
Installing Dynamometer
Now that you have the Dyno unpacked, you may begin
the installation of the Dynamometer.
Preparing Pit For Dyno
Step 1

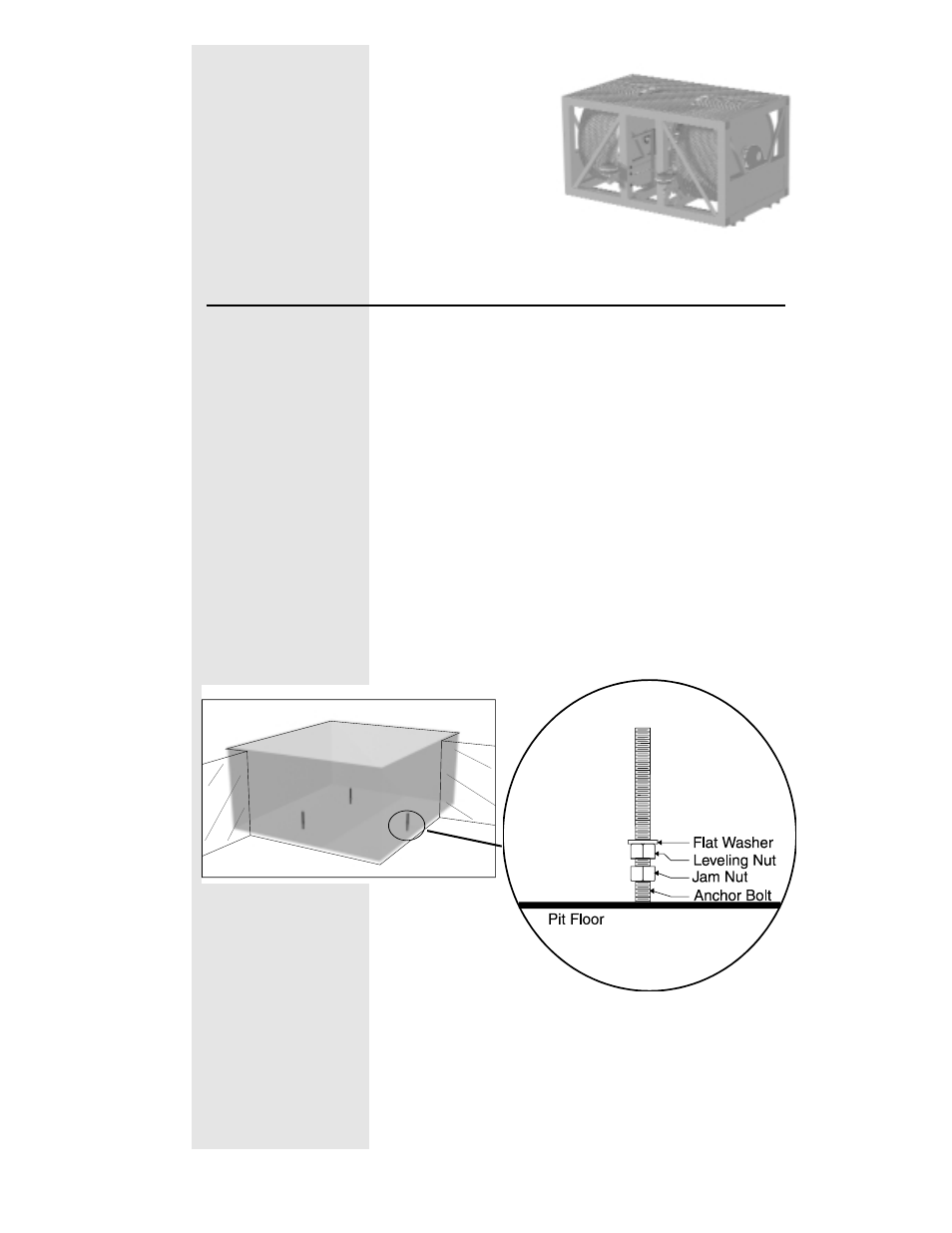

Your Dynojet Car Dynamometer is designed to sit
on three anchor bolts cemented into the floor of
the pit. Thread one jam nut (1" UNC nut) on each
of the three anchor bolts in the floor.
Step 2
Thread one leveling nut (1" UNC nut) on one of
the three anchor bolts. Place a flat washer on top
of this nut.
Step 3
Adjust this leveling nut so that the distance from
the top of the washer to the top of the pit is 48
3/
8" ±
1/
16" (123 cm ± 0.4 cm.) (Shown on
the next page).
