3 - 12 Document #98219100
Standard Air Step 5
(Skip to Step 6)
Proportional Air Step 5

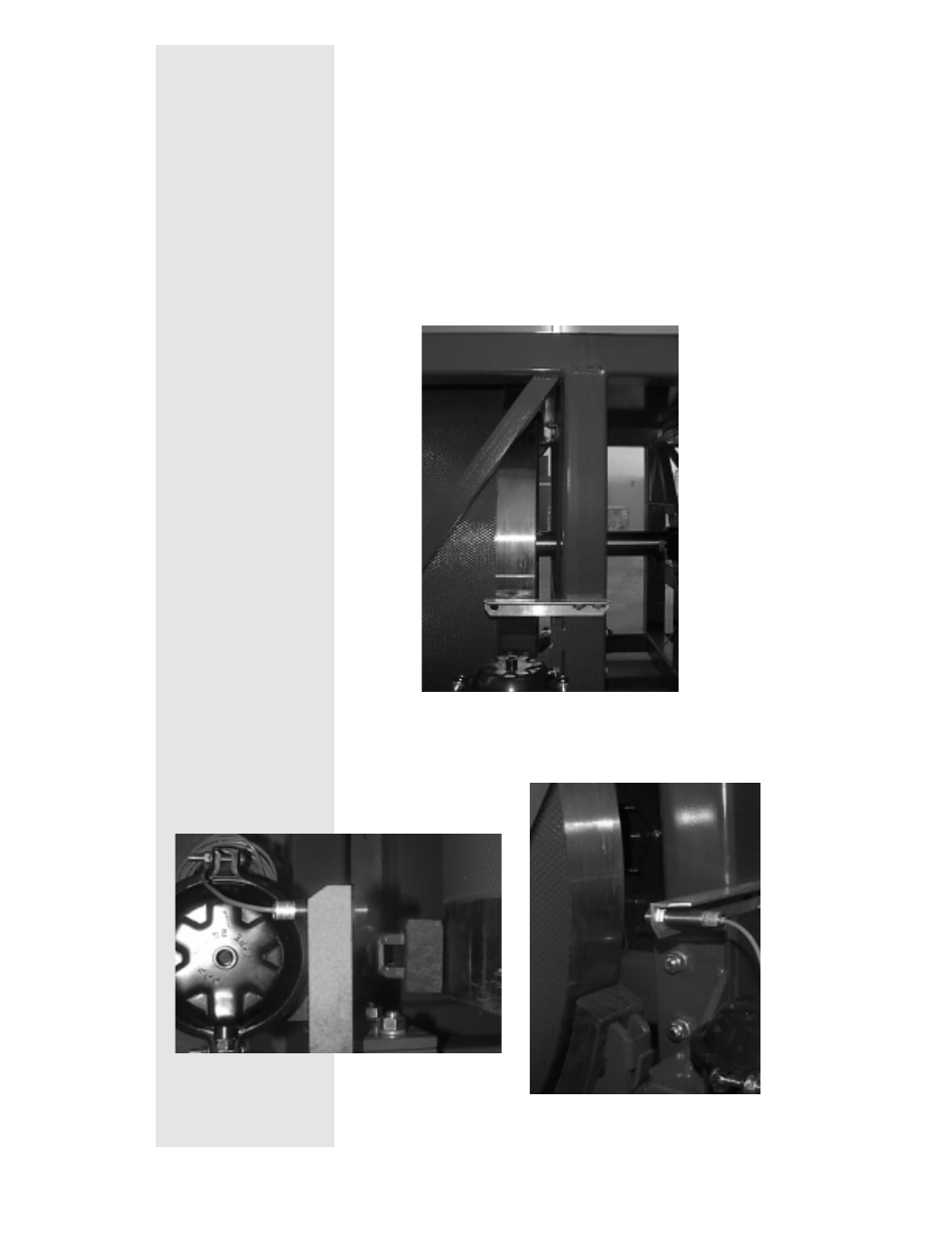

Install the Temperature Sensor on the left 4X4
post.
Locate the temperature sensor bracket on the
left side 4X4 post.
Install the temperature sensor so it is
approximately 3" from the surface of the
drum.
Top View
