Getting
to know
the camcorder

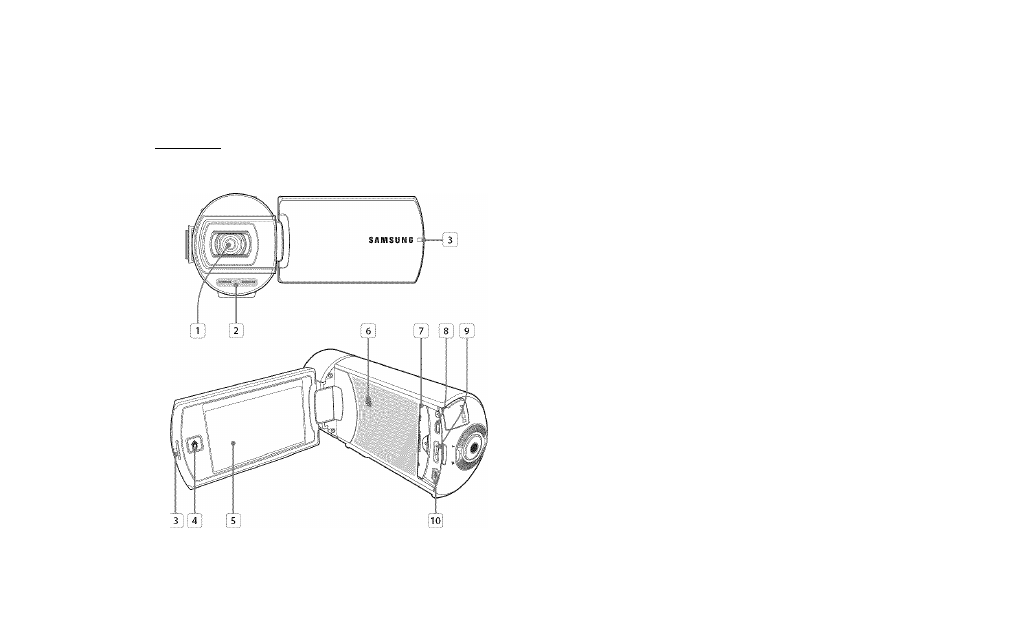

LOCATION OF CONTROLS
I Front/Left___________________
1
I
Lens
2 i Internal microphone
3 I Charging indicator
; 4 i Home (•^) button
5 i LCD screen (Touch screen)
6
I internal speaker
^ 7 I Jack cover (AV/HDMI/USB)
8 j AV (Audio/Video) jack
’
9
I HDMIjack
ilOi USB jack
Be careful not to cover the internal microphone and lens
aunng recording.
15
