Compaq Deskpro 2000 Series of Personal Computers 7-19
7.6 Diskette Drive
IA
1DRV
2CSL
2MST
CS
MA
SL
MD0
120 MB Floppy Drive
Assembly Number 184932

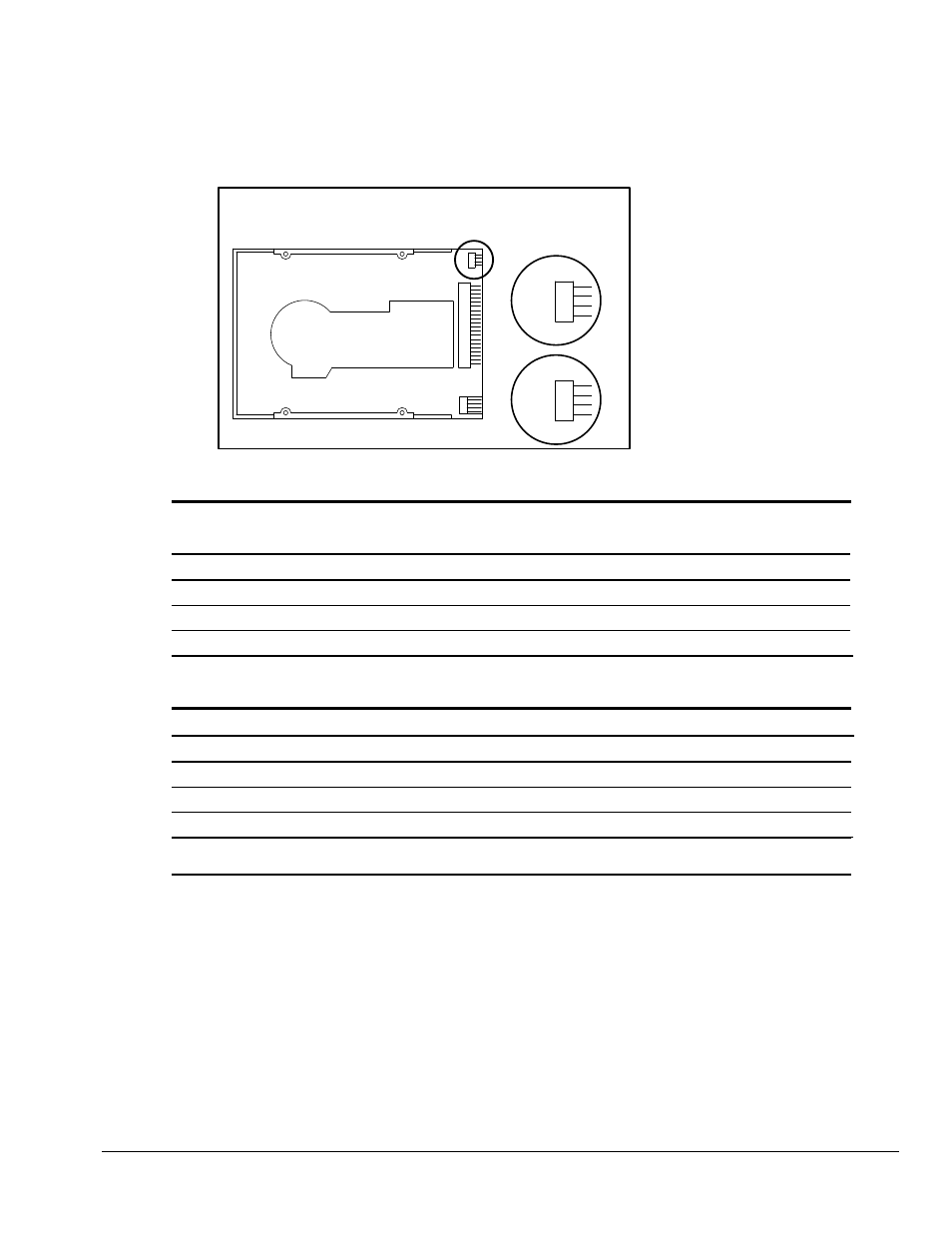

Figure 7-24. LS-120 Diskette Drive Jumper Settings
Table 7-17
Jumper Settings (Top Insert)
Setting IA 1DRV 2CSL 2MST
Cable Select Off Off On Off
Device 0 (Primary) Off Off Off On
Device 1 (Secondary) Off Off Off Off
Jumper IA is for factory use only.
Jumper 1DRV does not need to be used.
Jumper Settings (Bottom Insert)
Setting MDO CS SL MA
Cable Select Off On Off Off
Device 0 (Primary) Off Off Off On
Device 1 (Secondary) Off Off On Off
Jumper MDO is for factory use only.
