Compaq Deskpro 2000 User Manual
Page 177
Compaq Deskpro 2000 Series of Personal Computers
6-35
5. Remove the two wafer screws on the left of the drive that secure the drive into the chassis.
6. Pull the drive straight out of the chassis.

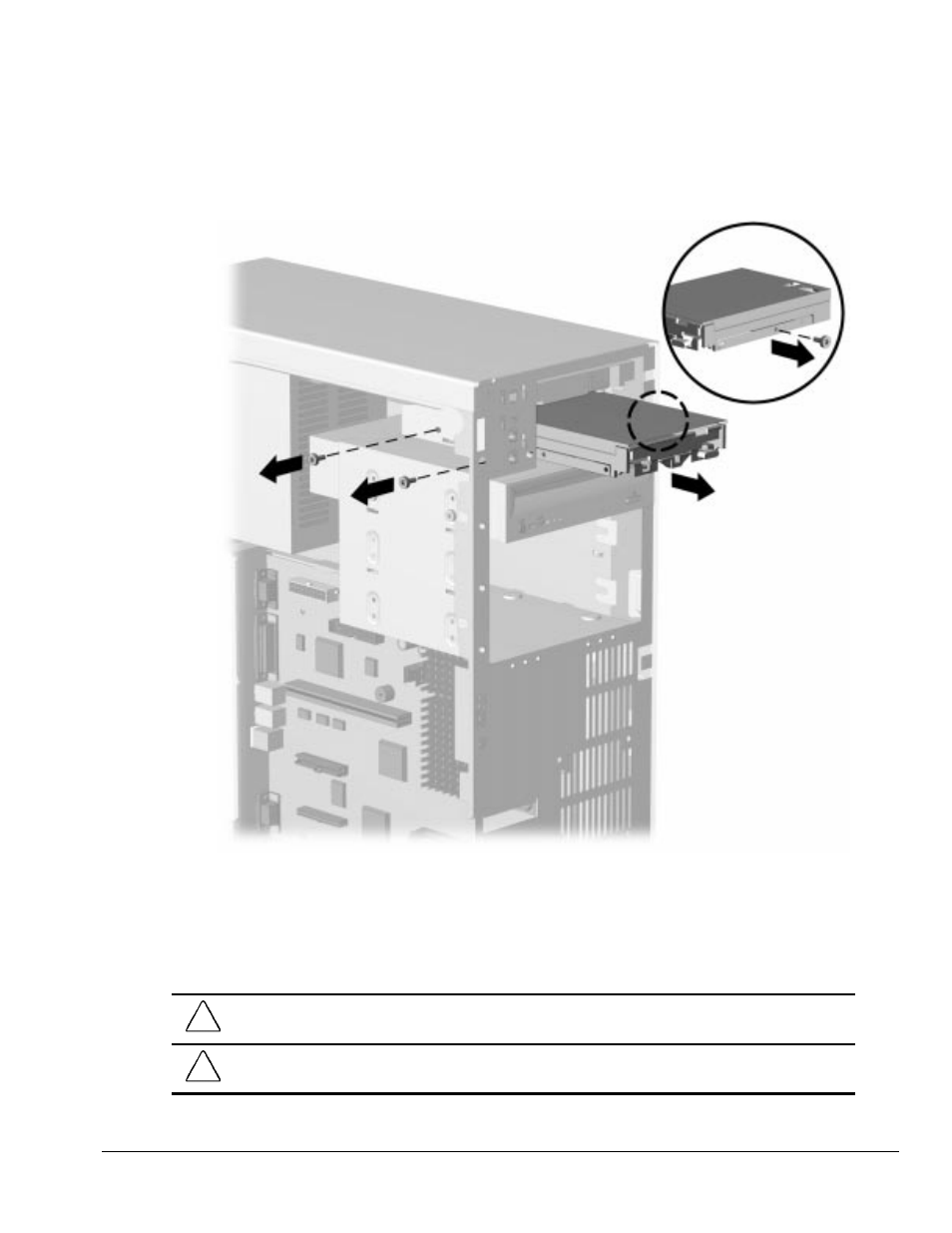

Figure 6-35. Removing the 3.5-Inch Diskette Drive
When replacing this drive, transfer the single wafer screw that takes the place of a drive rail from the
old drive to the new one. This screw is located on the right side of the drive in the middle.
To replace the 3.5-inch drive, reverse the above procedure.
CAUTION: When servicing the computer, ensure that cables are placed in their proper locations during
the reassembly process. Improper cable placement can damage the computer.
CAUTION: Use only 3/16-inch or 5-mm long screws as guide screws. Longer screws can damage the
internal components of the drive.
