Compaq Deskpro 2000 Series of Personal Computers 6-29
6.17 Power Supply Assembly
6.17.1 Power Supply Switch Assembly
To remove the power supply switch, complete the following steps:
1. Remove the access panel (section 6.6.1).
2. Remove the front bezel (Section 6.16.1).
3. Remove the plastic switch holder from the chassis. To remove the plastic switch holder from the
chassis:
❏ Place your thumb on top of the chassis 3 and your index finger on the release tab 1.
❏ Squeeze the tab toward the top of the chassis.
❏ While squeezing the tab, pull the holder up 2 and out of the chassis.
4. Remove the wires from the switch.

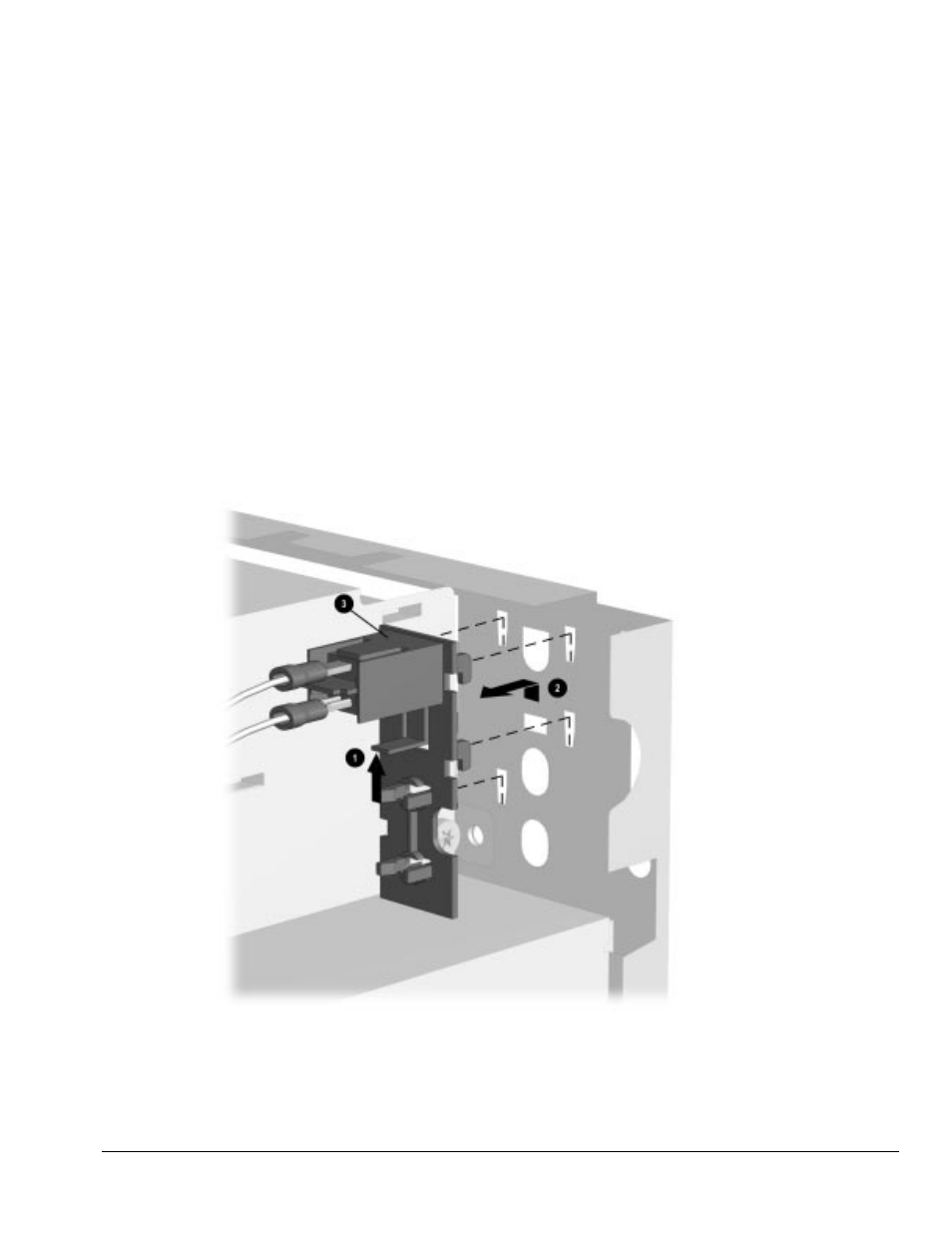

Figure 6-29. Removing the Power Supply Switch and Bracket
