Compaq Deskpro 2000 Series of Personal Computers
5-29
5.15.2 Power
Supply
To remove the power supply, complete the following steps:
1. Remove the system unit cover (Section 5.6).
2. Remove the front bezel (Section 5.14.1).
3. Remove the power switch (Section 5.15.1).
4. Disconnect all power cables from the mass storage devices and the system board.
✎
All power connectors are keyed for correct installation. Note the orientation of each cable
connector and the routing of the cables to facilitate reassembly.
5. Remove the three screws that secure the power supply to the back of the chassis.
6. Slide the power supply towards the front of the computer and lift up to remove it from the chassis.

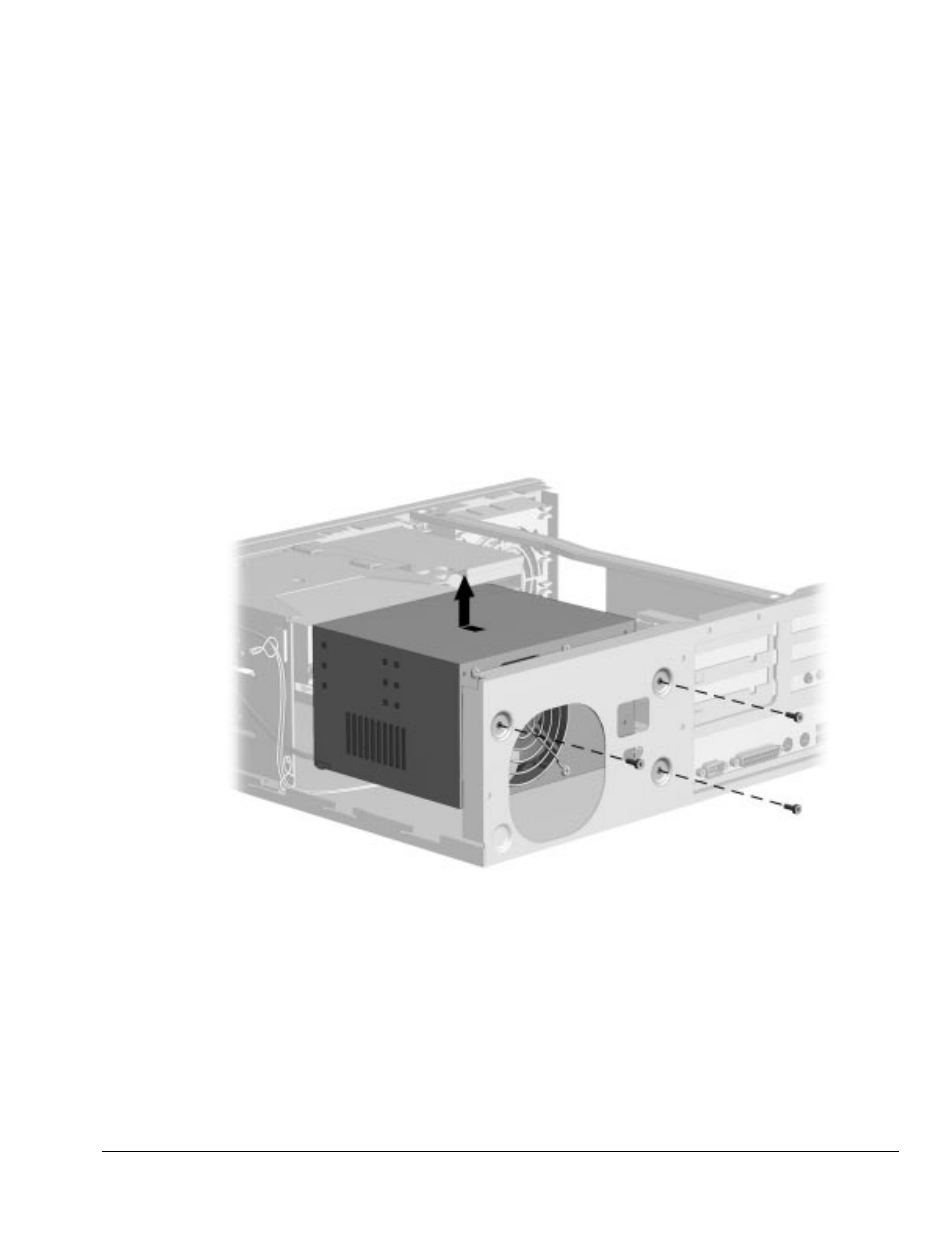

Figure 5-27. Removing the Power Supply
To replace the power supply, reverse the above procedure.
