5-2

Removal and Replacement Procedures - Desktop

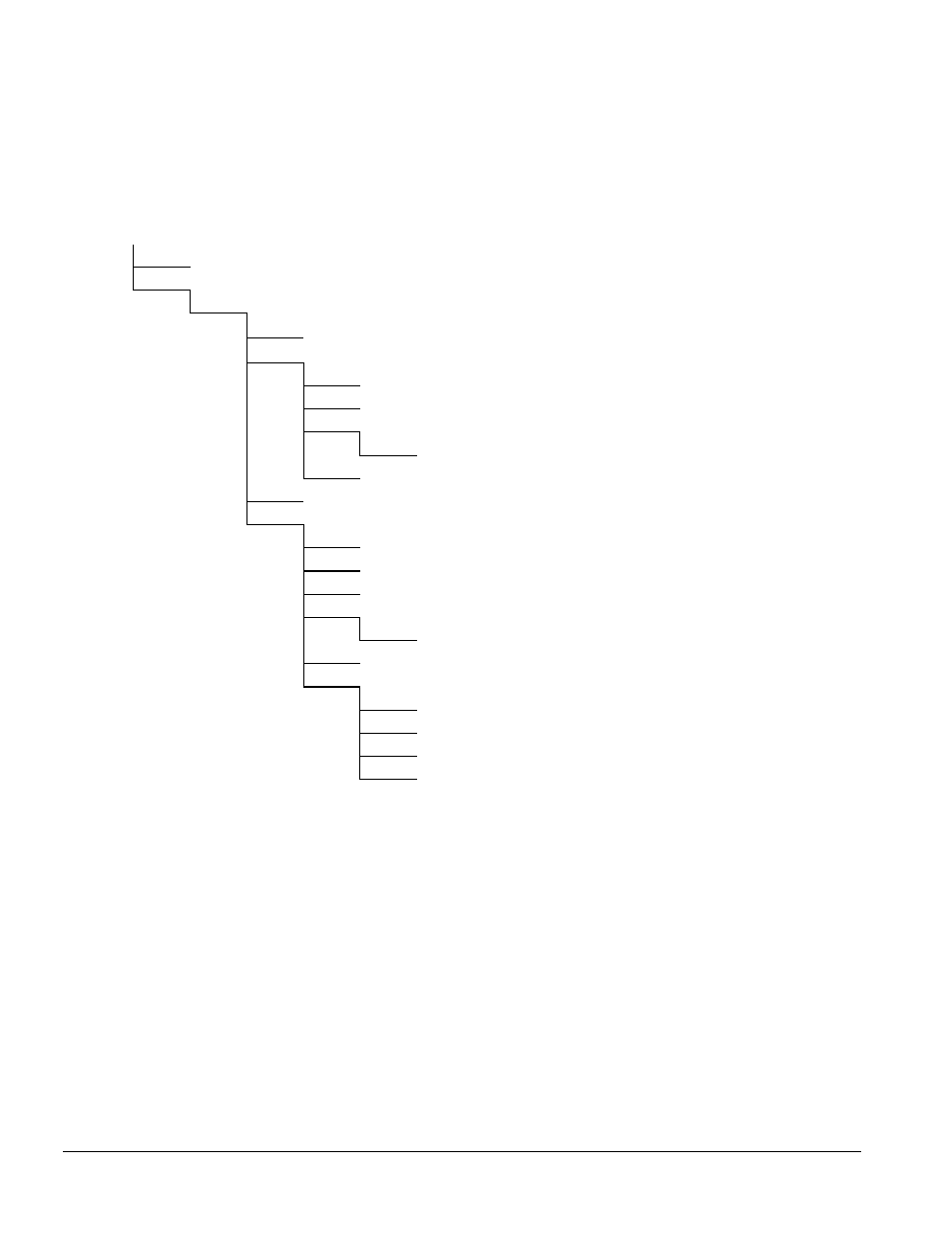

5.2 Disassembly Sequence Chart

Use the chart below to determine the disassembly sequence for removing components from the
computer.

5.4

Computer Feet

5.5

Cable Lock

5.6

System Unit Cover

5.7

Speaker

5.8

Expansion Board

5.9.1

Memory Module

5.9.2

System Board Graphics Memory Module

5.10

Riser Board

5.11

Riser Brace

5.12

Expansion Board Guide

5.13

Replacement Battery

5.14.1

Front Bezel

5.14.2

Power Button

5.14.3

Bezel Blank

5.14.4

Compaq Logo

5.15.1

Power Switch Assembly

5.15.2

Power Supply

5.16

Mass Storage Devices

5.17

Drive Cage

5.9.3

Microprocessor (for Pentium II, remove expansion boards also)

5.9.4

Cache Memory (Pentium only, remove expansion boards also)

5.18

LED Cable

5.19

System Board (remove Riser Board also)
