5-10 Removal and Replacement Procedures - Desktop
5.8.1 Inboard Expansion Board
To remove an inboard expansion board, complete the following steps:
1. Remove the system unit cover (Section 5.6).
2. Remove the retaining screw and board retainer bracket that secure the board to the rear of the
computer chassis.
3. Remove the expansion board.

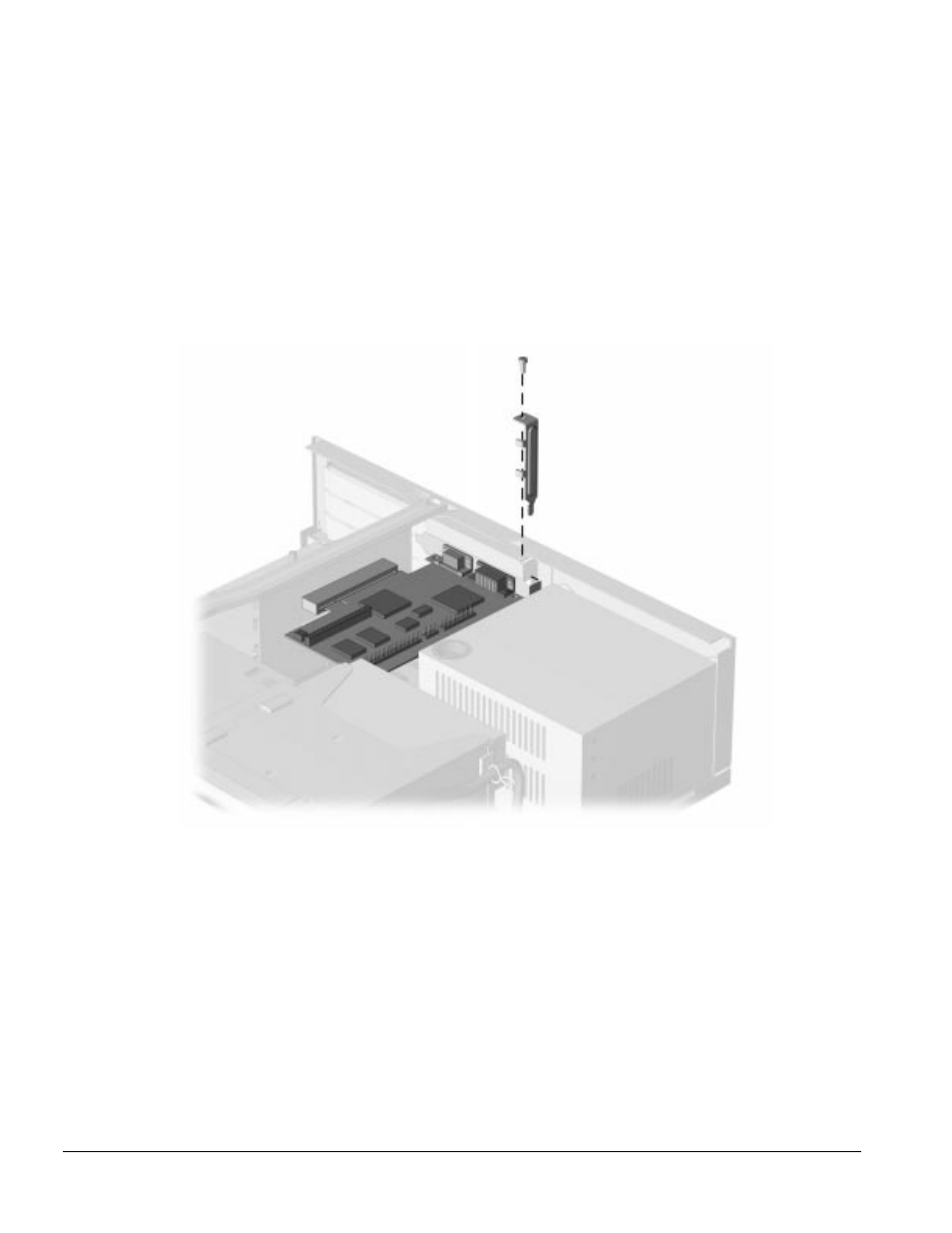

Figure 5-8. Removing the Expansion Board from an Inboard Position
To replace the expansion board, reverse the above procedure.
✎
If you are installing an expansion board for the first time, remove the slot cover before
installing the board.
The computer should automatically recognize the added Plug and Play board.
