Compaq Deskpro 2000 Series of Personal Computers 5-27
5.15 Power Supply Assembly
The power supply assembly is divided into two sections: one for the power switch assembly and one
for the power supply.
5.15.1 Power Switch Assembly
To remove the power switch assembly, complete the following steps:
1. Remove the system unit cover (Section 5.6).
2. Remove the front bezel (Section 5.14.1).
3. Remove the plastic switch holder from the chassis. To remove the plastic switch holder from the
chassis:
❏ Place your thumb on top of the holder 3 and your index finger on the release tab 1.
❏ Squeeze the tab toward the top of the holder.
❏ While squeezing the tab, push the holder down 2 and out of the chassis.

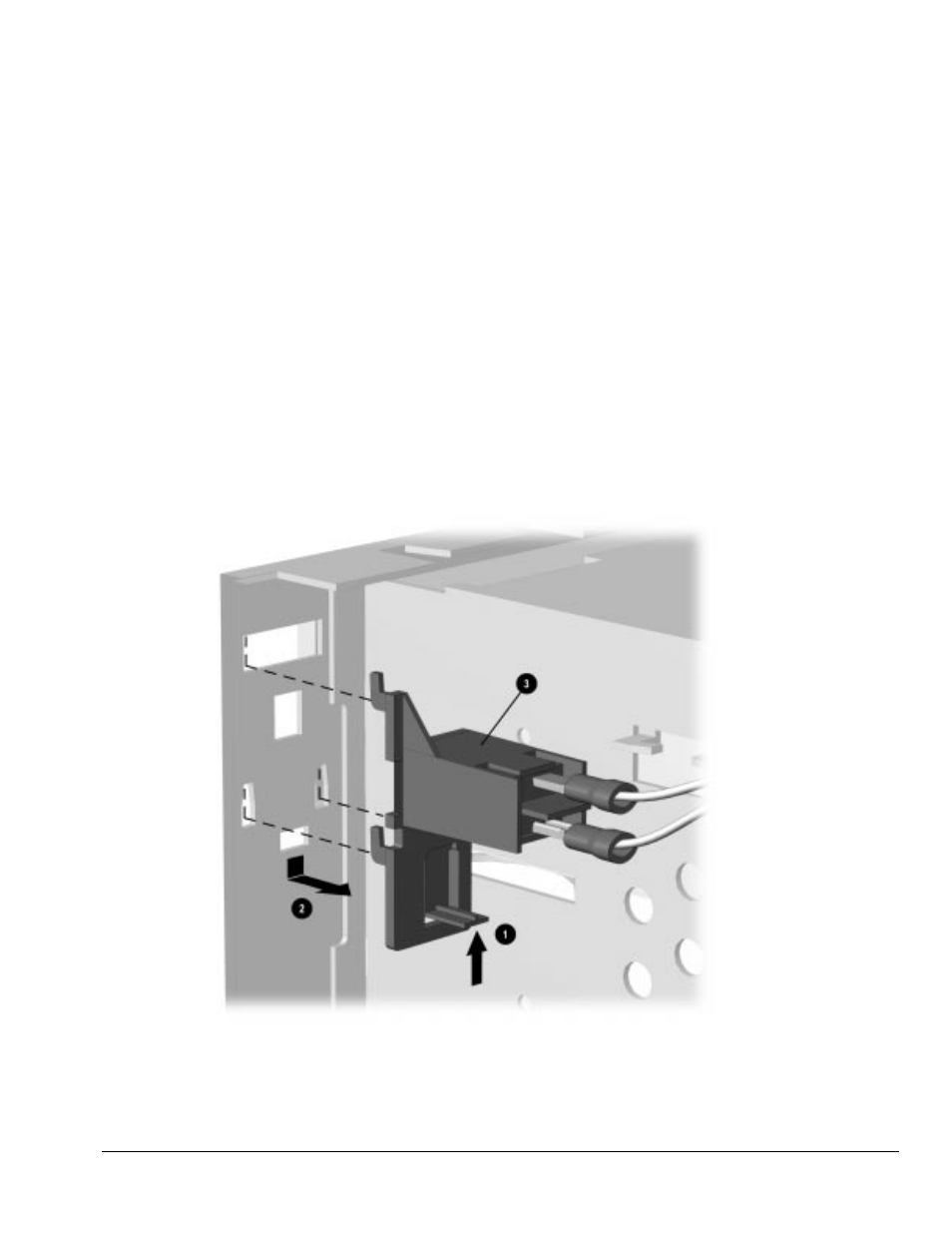

Figure 5-25. Removing the Power Switch
4. Remove the wires from the switch.
