Compaq Deskpro 2000 Series of Personal Computers 5-35
If you are installing a 3.5-inch diskette drive into a 5.25-inch drive bay, use Compaq bracket spare
part number 243230-001, which comes with a preinstalled bezel.
If you are installing a 3.5-inch hard drive into a 5.25-inch drive bay, use Compaq bracket spare part
number 243231-001.
To install a 3.5-inch drive/bracket assembly, begin with step 1.
To install a 5.25-inch drive, begin with step 3.
1. Place the 3.5-inch drive into the bracket.
2. Insert two screws into the bracket holes on each side of the bracket to secure the drive.

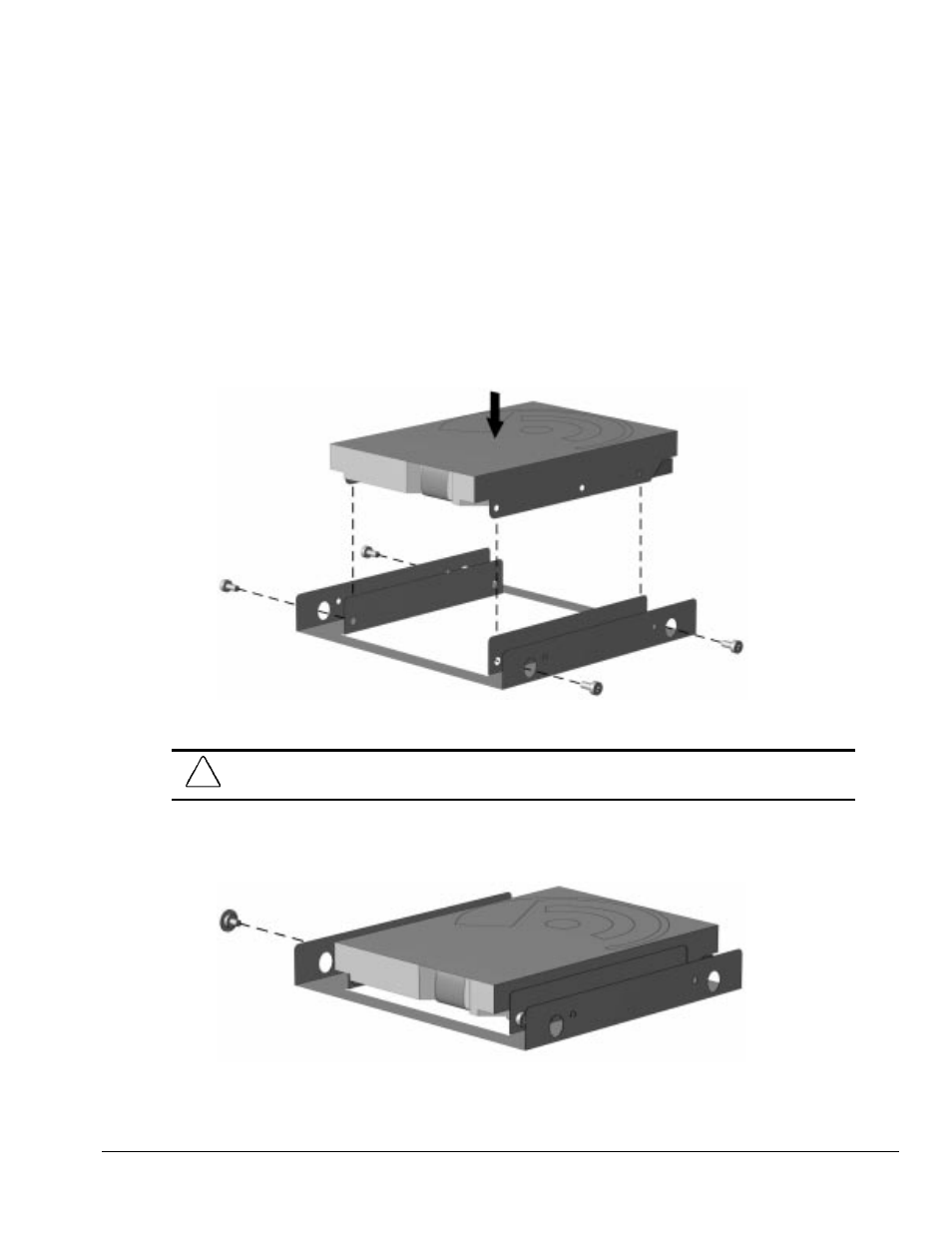

Figure 5-33. Installing the Hard Drive into the Mounting Bracket
CAUTION: Use only 3/16-inch or 5-mm long screws as guide screws. Longer screws can damage the
internal components of the drive.
3. Install one wafer screw on the left side of the drive or bracket assembly. This acts as a guide rail
to align the bracket in the drive bay.
Figure 5-34. Inserting the Wafer Screw on the Left Side of the Bracket
