6-34 Removal and Replacement Procedures - Minitower
6.19 Mass Storage Devices
This section discusses the removal and replacement procedures for the mass storage devices that are
supported on the Deskpro 2000 Series of Personal Computers. Refer to Chapter 1, Section 1.5.2,
“Drive Positions.”
6.19.1 3.5-Inch Drive Bays
To remove a 3.5-inch drive from the 3.5-inch drive bay, complete the following steps:
1. Remove the access panel (Section 6.6.1).
2. Remove the front bezel (Section 6.16.1).
3. Remove the power switch assembly (Section 6.17.1).
4. Disconnect the cables from the back of the drive.

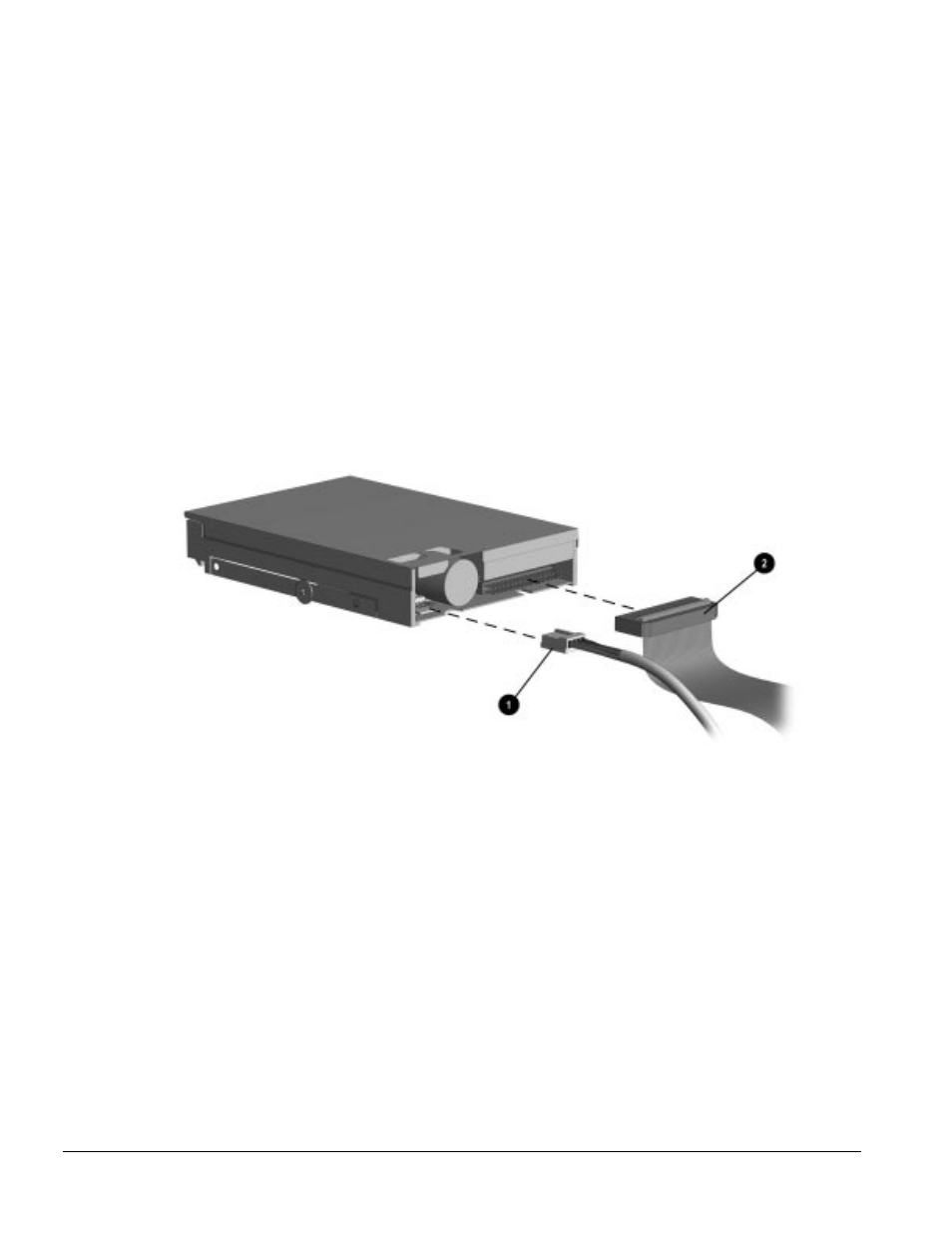

Figure 6-34. Disconnecting the Power 1 and Signal 2 Cables from the 3.5-Inch Diskette Drive
✎
When installing a second diskette drive, it is necessary to configure the computer using
Computer Setup.
Refer to Chapter 7, “Jumper and Switch Information,” for the location of the ribbon cable
connections on the system board.
