Compaq Deskpro 2000 - Manual (Page 111)

Compaq Deskpro 2000 Series of Personal Computers 5-11
5.8.2 Outboard Expansion Board
To remove an outboard expansion board, complete the following steps:
1. Remove the system unit cover (Section 5.6).
2. Remove the retaining screw that secures the board to the rear of the computer chassis.
3. Remove the expansion board.

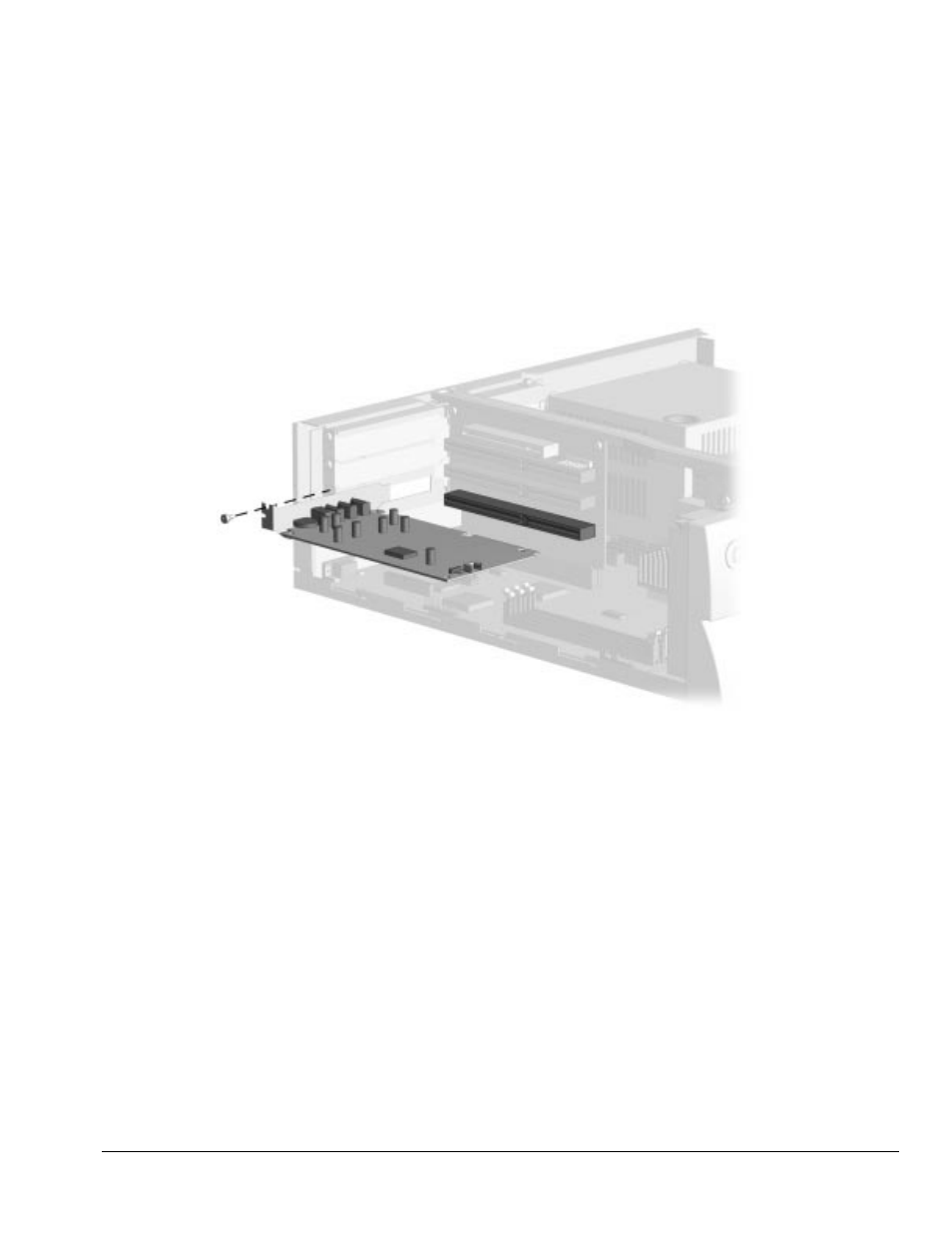

Figure 5-9. Removing the Expansion Board from an Outboard Position
To replace the expansion board, reverse the above procedure.
✎
If you are installing an expansion board for the first time, remove the slot cover before
installing the board.
When the computer starts, it should automatically recognize the added Plug and Play board.
