Compaq Deskpro 2000 - Manual (Page 190)

Compaq Deskpro 2000 Series of Personal Computers 7-7
7.2.1 Setting Power-On Password Jumpers
The power-on password feature is enabled or disabled by moving the jumper on the password
header located on the system board. The password header is labeled “E6 Password” on the Pentium
system board and labeled “Password” on the Pentium II system board.
The password header has three pins. The power-on password comes enabled by default with the
jumper on pins 5 and 6. To clear or disable the power-on password, move the jumper to pins 6 and 7.

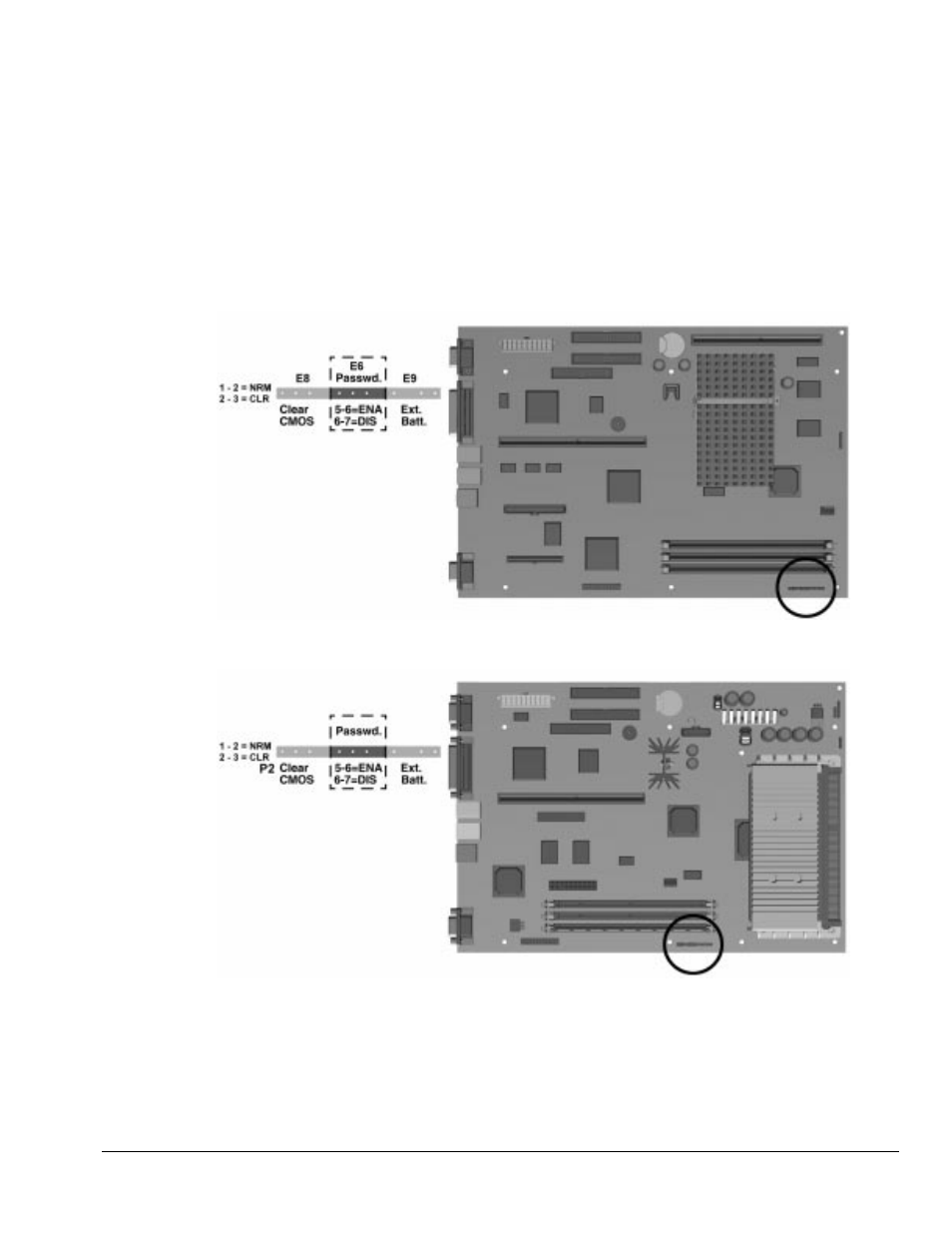

Figure 7-5. Password Header (E6) Location, Pentium System Board
Figure 7-6. Password Header Location, Pentium II System Board
✎
To set a new password, move the password header back to pins 5 and 6, restart the
computer, and reestablish your password through Security Management.
