Rally Armor Mitsubishi EVO 8, IX, MR User Manual
Page 2

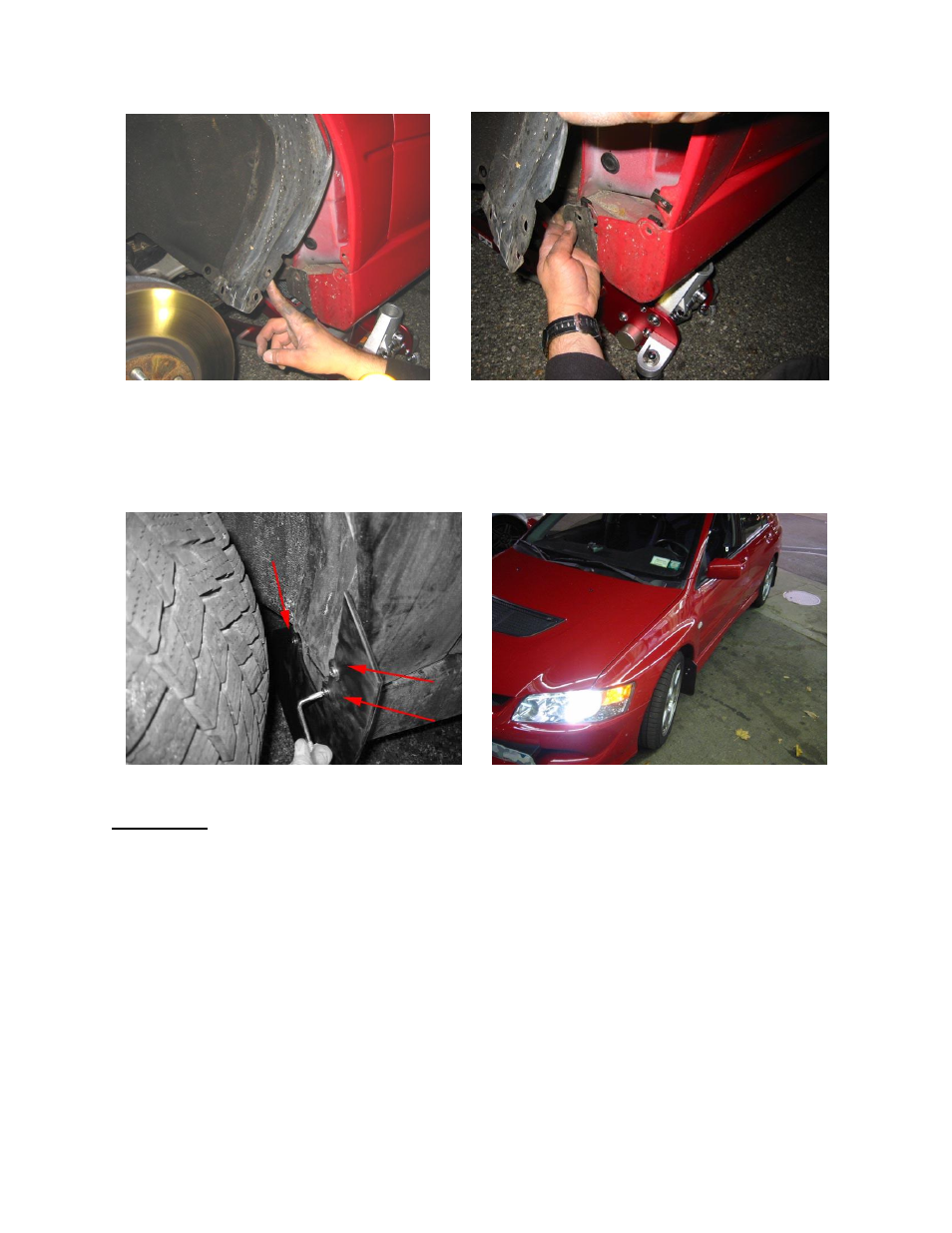

C)
D)
Step 5: Place 3 clips over A, B, and C (note "B" is behind the side skirt).
Step 6: Replace liner as it was before (covering the clips) Bolt the 10mm wheel liner bolt back (D). Refer to
the other side of the car if you need to recall how it is put back together. Carefully replace the liner as it was
before the install to avoid rubbing.
Step 7: Bolt the mud flap as follows (note the long bolt on the side skirt bolt). Install the two side skirt
screws as well.
E)
F)
Rear Flaps
Step 1: Begin by removing the rear wheel and placing the car on jack stands (fig. G) - if you can jack
up the car enough to reach the inner bolt you may also choose to install without removing the tires.
Step 2: Remove the two rear bolts that hold the liner then prepare a long screw with a washer (fig. I).
