Installing Optional Fast Ethernet Interface Modules
2H28-08R SmartSwitch 2208 User’s Guide C-7
1. Remove the coverplate from the port slot where the Fast Ethernet
Interface Module will be installed. Refer to
Figure C-4 and proceed as
follows:
a. Remove the two screws fastening the coverplate to the standoffs.
Save the screws.
b. Lift and remove the coverplate from the top of the front standoffs.

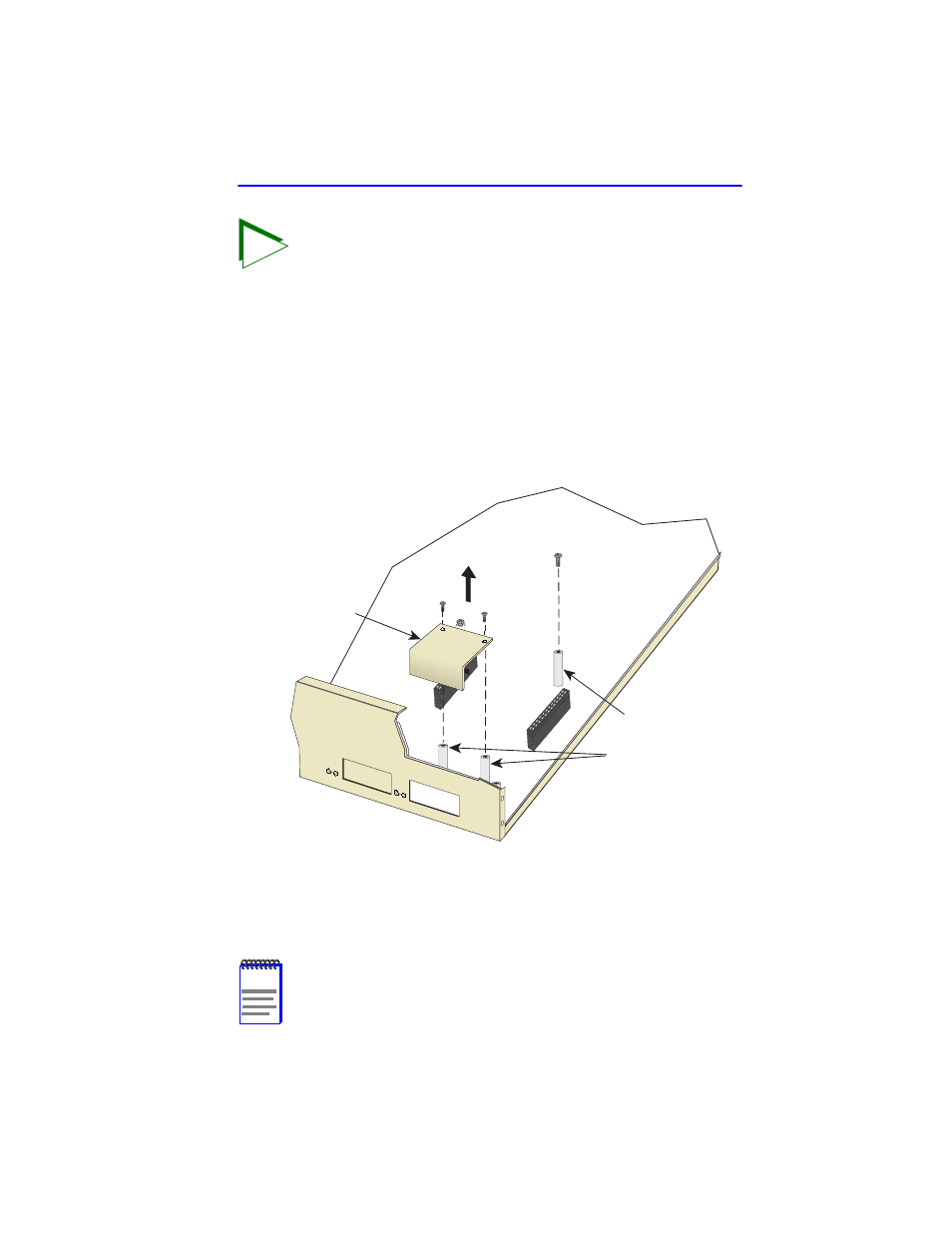

Figure C-4 Coverplate Removal
2. Remove the screw from the rear standoff. Save the screw.
TIP
When installing Fast Ethernet Interface Modules in both port
slots 7 and 8, remove the coverplates from both slot openings.
In the following instructions, the optional module is shown
being installed in port slot 8.
NOTE
When installing an FE-100FX or FE-100F3 module into the
2H28-08R, remove the rubber plug on the module before
proceeding.
2251-38
Front
Standoffs
Rear
Standoff
Coverplate
7
8
