82
Installing System Components
Removing a Power Supply
NOTE:
You may have to unlatch and lift the optional cable management arm if it
interferes with power supply removal. For information about the cable management
arm, see the system’s rack documentation.
1 Disconnect the power cable from the power source and the power supply
you intend to remove, and remove the cables from the Velcro strap.
2 Press the lever release latch and slide the power supply out of the chassis.
See Figure 3-2.

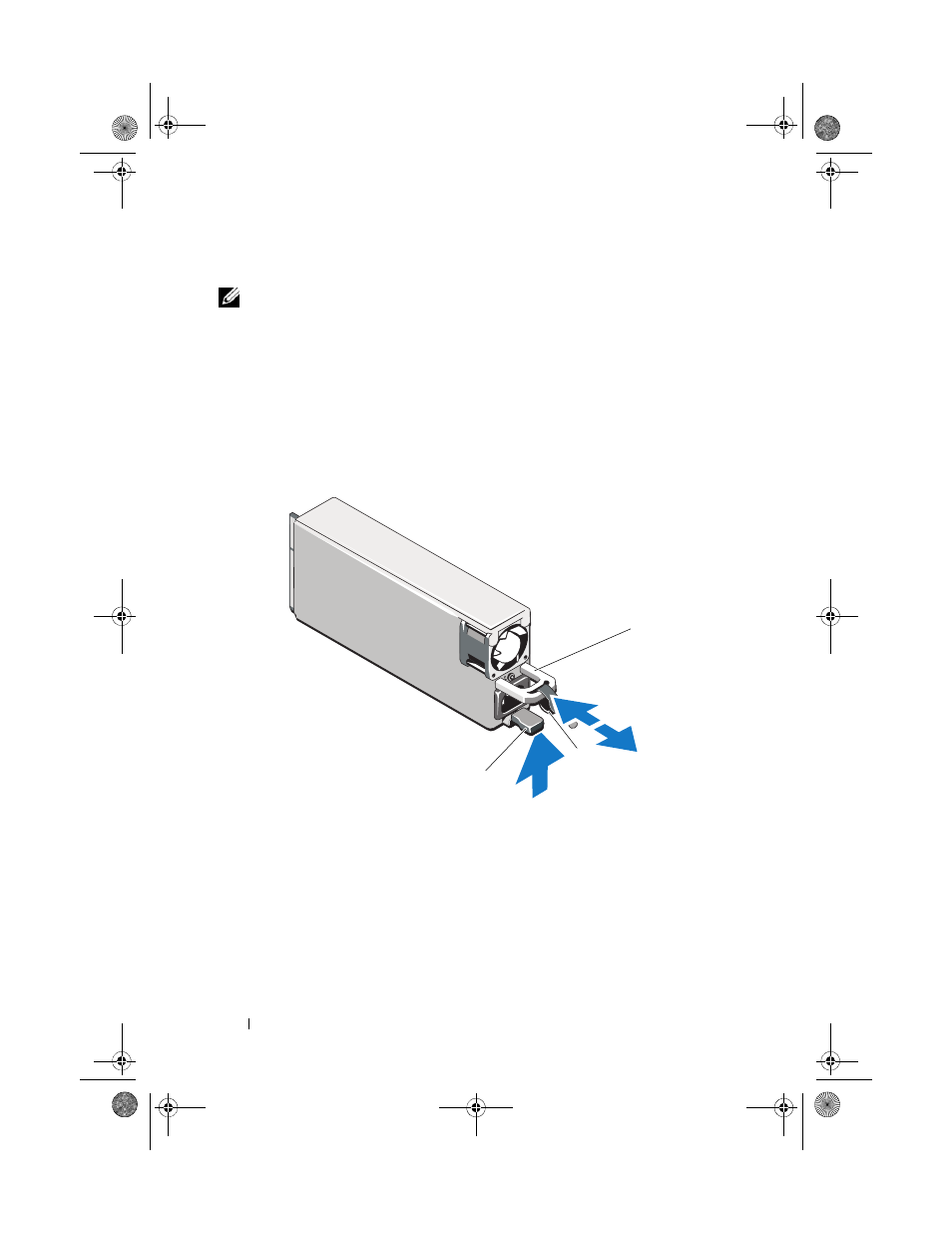

Figure 3-2. Removing and Installing a Power Supply
1 power-supply handle 2 Velcro strap
3 release latch
1
2
3
