Installing System Components
105

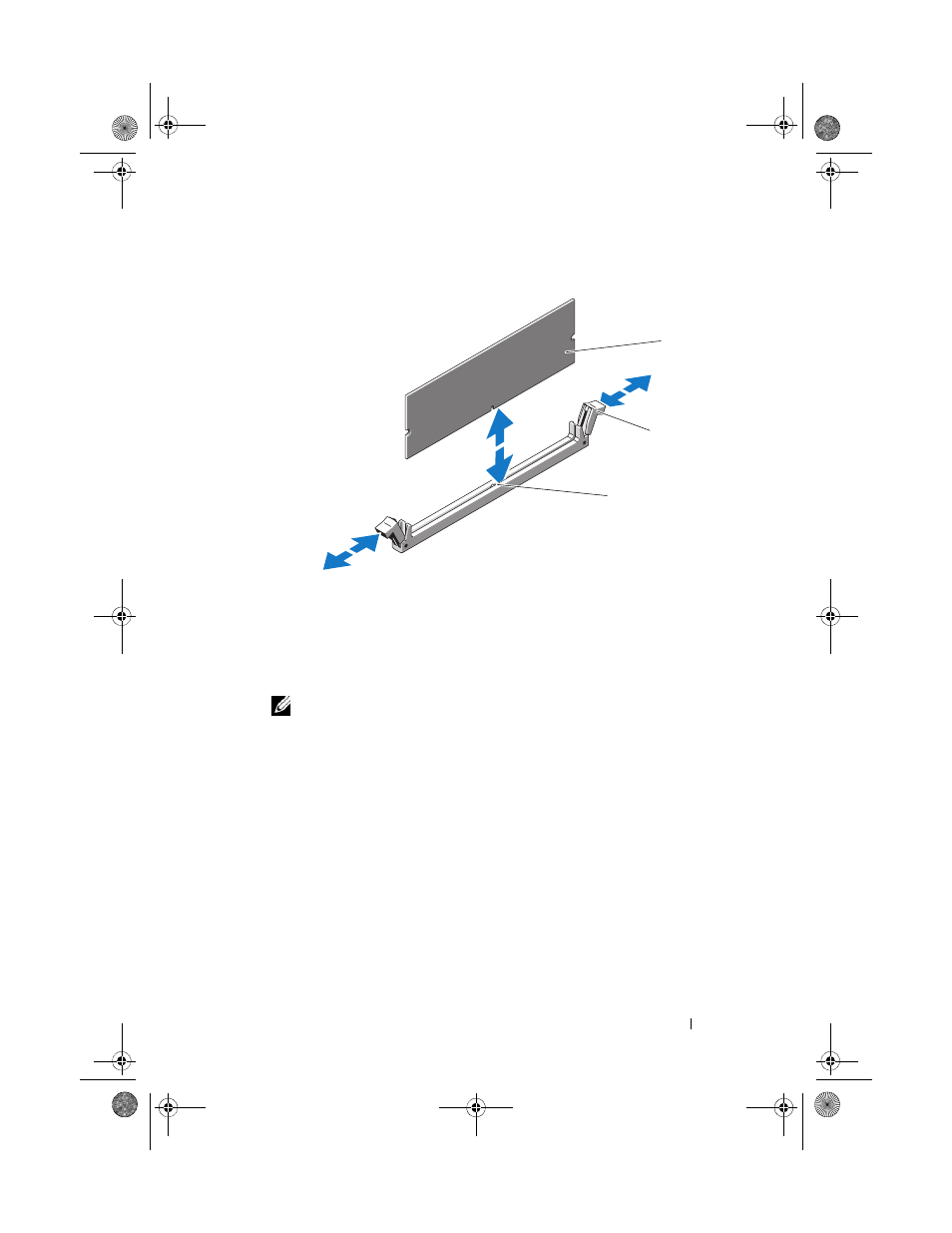

Figure 3-11. Installing and Removing a Memory Module
7 Align the memory module's edge connector with the alignment key of the
memory module socket, and insert the memory module in the socket.
NOTE:
The memory module socket has an alignment key that allows you to
install the memory module in the socket in only one way.
8 Press down on the memory module with your thumbs until the socket
levers latch into a locked position.
When the memory module is properly seated in the socket, the levers on
the memory module socket align with the levers on the other sockets that
have memory modules installed.
9 Repeat step 5 through step 8 of this procedure to install the remaining
memory modules. See Table 3-1 or Table 3-2.
10 Install the cooling shroud. See "Installing the Cooling Shroud" on page 88.
11 Close the system. See "Closing the System" on page 86.
12 Place the system upright and on its feet on a flat, stable surface.
13 Rotate the system feet outward.
1 memory module 2 memory module socket levers (2)
3 alignment key
2
1
3
