142
Installing System Components

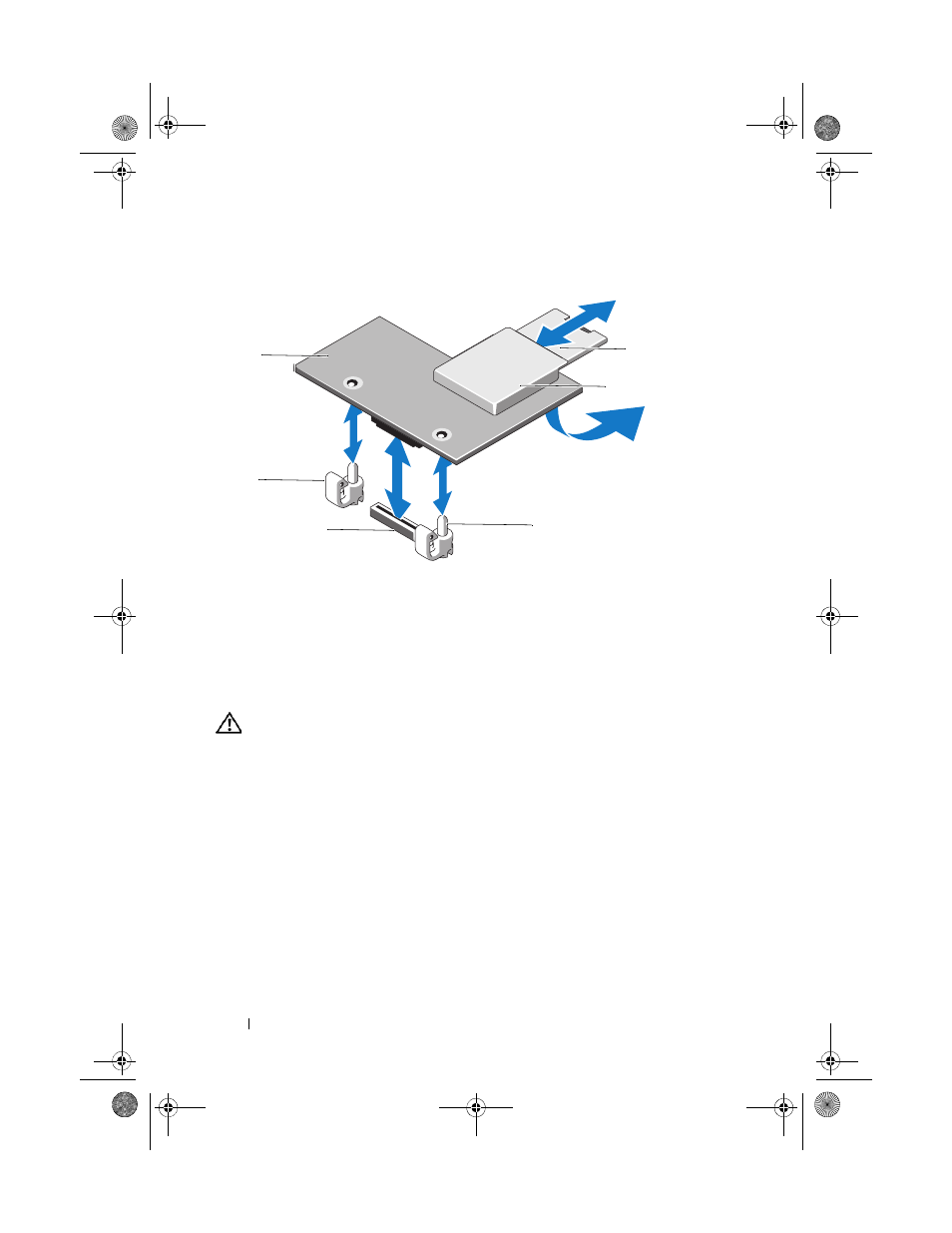

Figure 3-26. Removing and Installing an iDRAC6 Enterprise Card
Removing an iDRAC6 Enterprise Card
WARNING:
Only trained service technicians are authorized to remove the system
cover and access any of the components inside the system. Before you begin this
procedure, review the safety instructions that came with the system.
1 Turn off the system, including any attached peripherals, and disconnect
the system from its electrical outlet.
2 Rotate the system feet inward and lay the system on a flat surface.
3 Open the system. See "Opening the System" on page 85.
4 Remove the cooling shroud. See "Removing the Cooling Shroud" on
page 87.
5 Remove the fan modules. See "Removing a Cooling-Fan Module" on
page 136.
6 Remove the fan cage. See "Removing the Fan Cage" on page 138.
1 iDRAC6 Enterprise card 2 retention standoff tabs (2)
3 iDRAC6 Enterprise card connector 4 retention standoff posts (2)
5 VFlash media slot 6 VFlash SD card
1
2
3
6
5
4
