120
Installing System Components

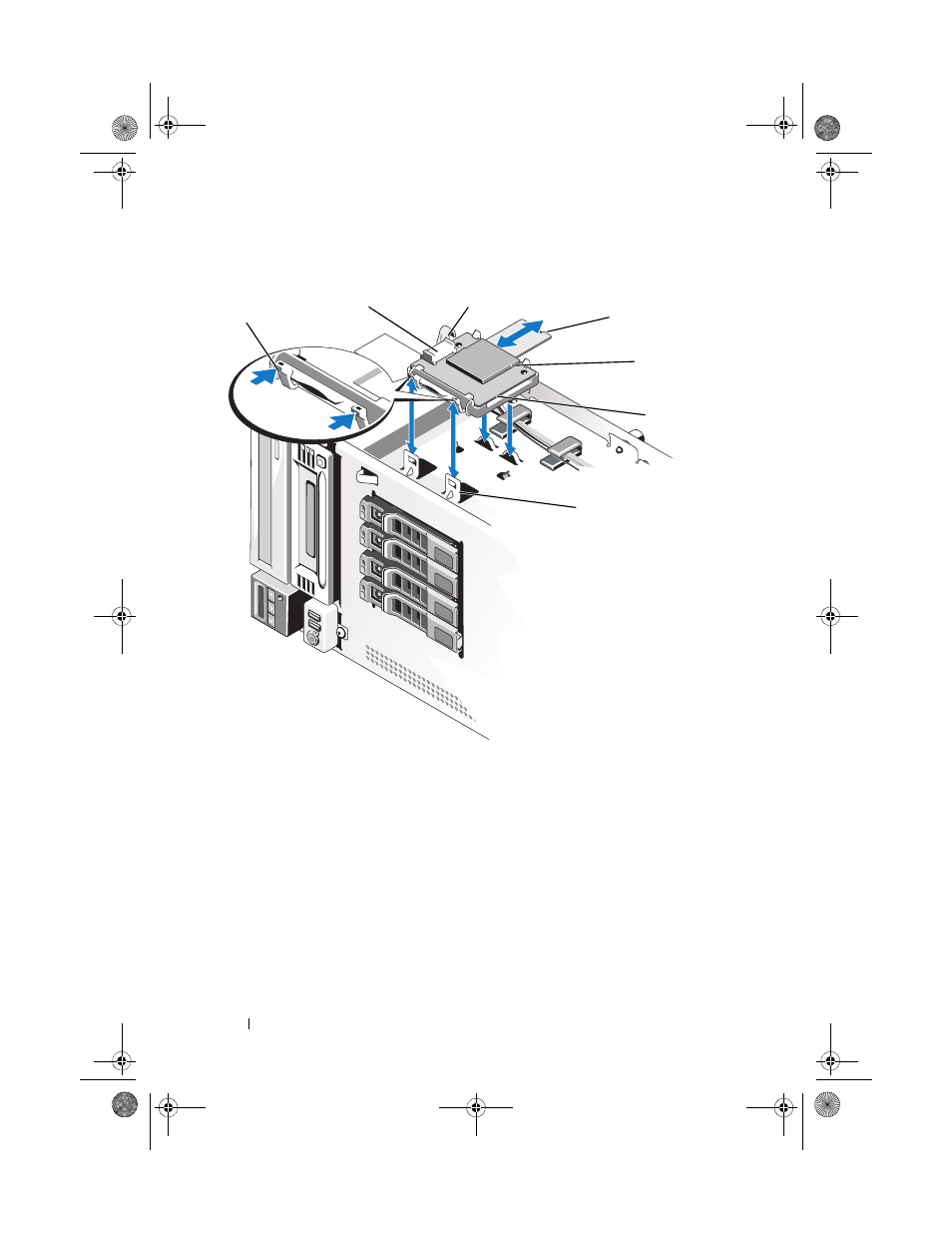

Figure 3-18. Installing the Internal SD Module
5 Connect the internal SD module cable between the connector on the
module and the UIPS connector on the system board. See Figure 6-1 for
the location of the connector on the system board.
6 Close the system. See "Closing the System" on page 86.
1 release tab 2 internal SD module cable connector
3 latch 4 SD flash card
5 SD card slot (SD connector) 6 internal SD module
7 hooks (2)
6
7
4
1
2
3
5
