Installing System Components
147

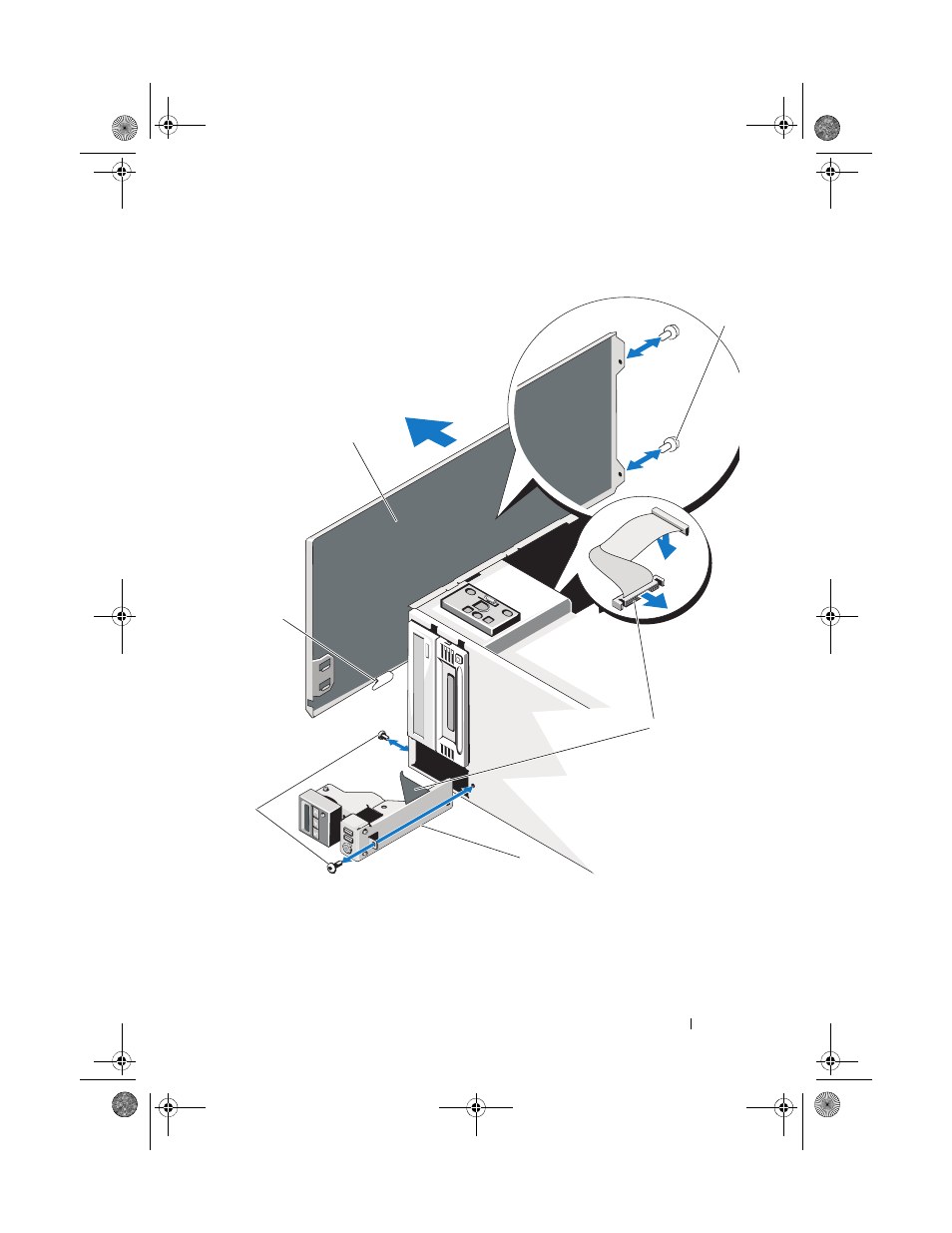

Figure 3-28. Removing and Installing the Control Panel
1 control panel screws (2) 2 cover tabs
3 chassis outer cover 4 cover screws (2)
5 control panel cable 6 control panel assembly
5
3
4
6
1
2
