The AGS Setup menu contains the following general settings that define the AGS routines.
The MATE uses the AUX output of an FX or FLEXnet DC relay to control the generator. The
MATE is connected to this FX either directly or through a HUB.
If a HUB is used:
• Use the and soft keys to set the AGS Port value to the HUB FX or FLEXnet
DC Port controlling the generator
If no HUB is used and the MATE is directly plugged into an FX, then the AGS Port needs to be
set to 0 (zero).

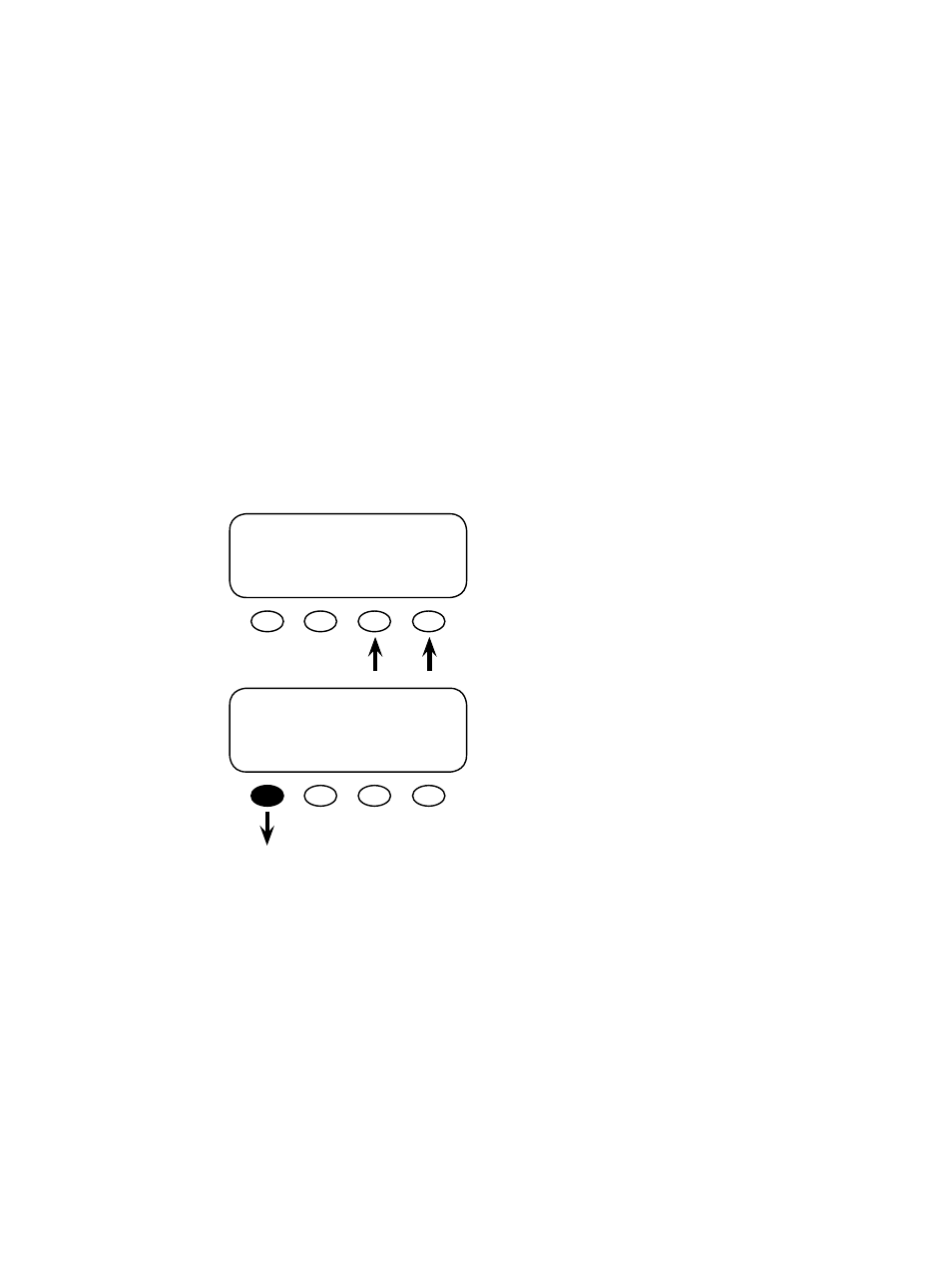

MATE/AGS/SETUP-----------------
ags port: 0
DOWN AGS INC DEC
MATE/AGS/SETUP-------------------
ags port: 3
DOWN AGS INC DEC
Example:
A MATE is connected to a HUB-10 that has four
FXs and three Charge Controllers connected to it.
The FXs are plugged into Ports 1 – 4, as labeled on
the HUB, and the Charge Controllers are plugged
into Ports 5 – 7. Any FX can have its AUX output
wired to a relay whose contacts are wired to the
starting circuitry of the generator. The AGS Port
must be set to the port of the chosen FX.
After setting the AGS Port, press the
soft key. The next screen allows you to enable the
AGS Mode.
AGS Port
