OUTBACK CHARGE CONTROLLER STATUS MODE Screens
To view the CC STATUS screens, return to the MAIN Menu, press the soft key and then choose
the CC on the STATUS choose product screen. The STATUS screens include MODE, METER, and SET (SET
POINT). In STATUS Mode, these Charge Controller functions can be viewed by the MATE, but not changed.

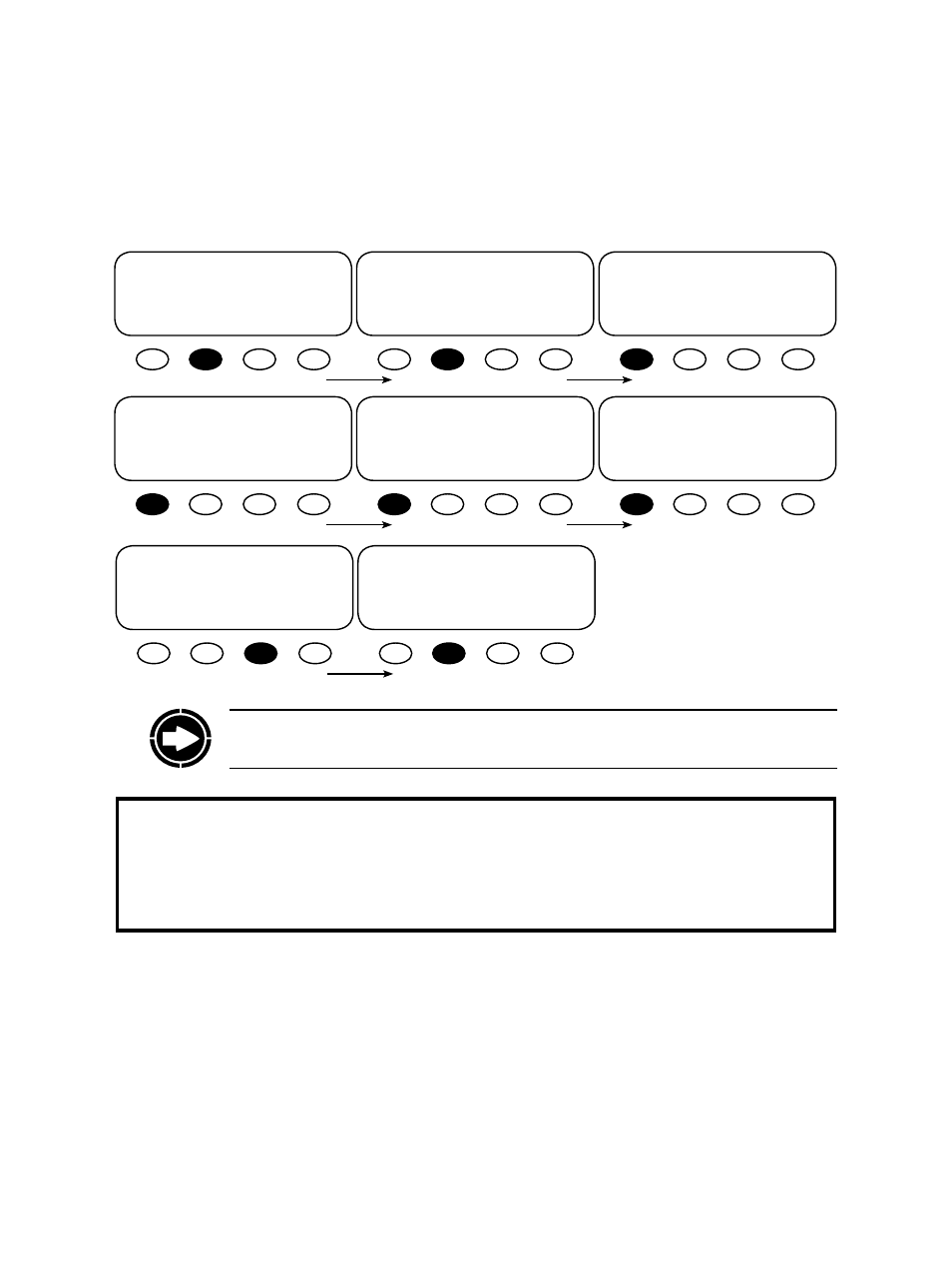

MAIN--------------------------------
12:00:30P
SUM STATUS SETUP ADV
STATUS/CC/PAGE1------------------
MODE METER SETP MAIN
STATUS-------------------------------
choose device:
FX CC DC MAIN
STATUS/CC/MODE-------------P00
charger mode: Silent
DOWN STATUS PORT
STATUS/CC/MODE------------P00
aux relay state: ON
DOWN UP TOP PORT
STATUS/CC/MODE-------------P00
aux relay mode:
Low Batt
DOWN UP TOP PORT
STATUS/CC/MODE-----------------
end of mode menu
UP TOP STATUS
STATUS/CC---------------------------
MODE METER SETP MAIN Press to view
the CC METER screens.
CHARGE CONTROLLER MODE Screens
• charger mode: displays one of five charging stages (Bulk, Absorption, Float, Silent, or Equalization)
• aux relay mode: displays one of eight Charge Controller AUX modes (Vent Fan, PV Trigger, ERROR
OUTPUT, Night Light, Float, Diversion:Relay, Diversion:Solid St, Low Batt(ery) Disconnect, or
Remote)
• aux relay state: indicates if the AUX is ON or OFF
NOTE: All OutBack Charge Controller screens are displayed as CC screens on a MATE with
software code revision 402 and higher.
