OUTBACK CHARGE CONTROLLER STATUS METER Screens

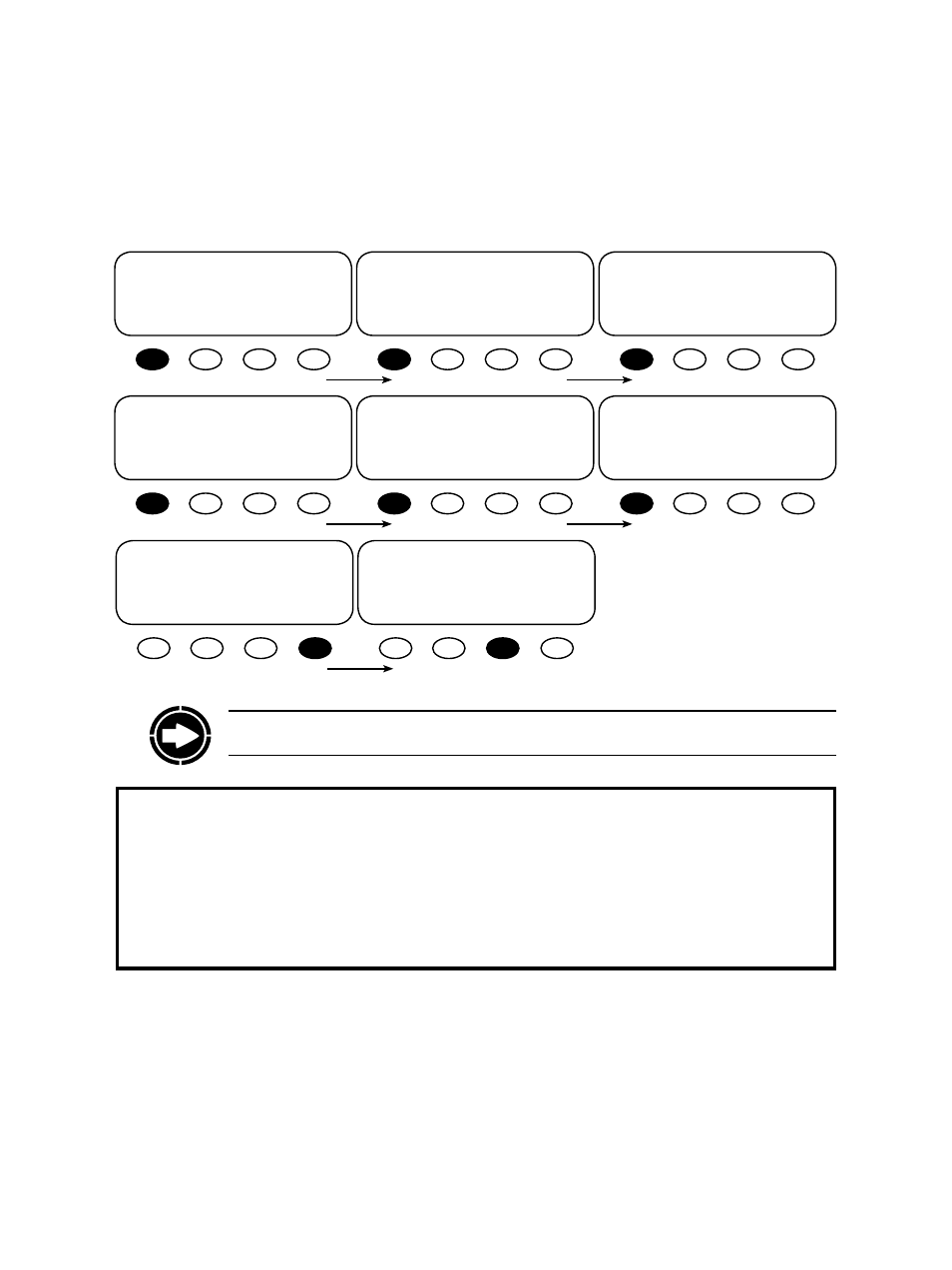

To view the CC STATUS screens, return to the MAIN Menu, press the soft key and then choose
the CC on the STATUS choose product screen. The STATUS screens include MODE, METER, and SET (SET
POINT). In STATUS Mode, these Charge Controller functions can be viewed by the MATE, but not changed.
mode: Silent P00
in 33.2 vdc 0 adc
out 38.8 vdc 0 adc
DOWN STATUS PORT
STATUS/CC/METER----------P00
charger .0 kwh
kwhrs
DOWN UP TOP PORT
STATUS/CC/METER-----------P00
charger 0 w
watts
DOWN UP TOP PORT
STATUS/CC/METER-------------P00
charger +000 adc
amps dc
DOWN UP TOP PORT
STATUS/CC/METER-----------P00
panel 33 vdc
voltage
DOWN UP TOP PORT
STATUS/CC/METER-----------P00
battery 38.7 vdc
voltage
DOWN UP TOP PORT
STATUS/CC/METER---------------
end of meter menu
UP TOP STATUS
STATUS/CC-----------------
MODE METER SETP MAIN
Press to view the
SET POINT screens
CHARGE CONTROLLER METER Screens
• Mode/pv/in/bat/out: displays the charger mode, the PV array voltage, the incoming PV amps, the
battery voltage, and the outgoing amps to the battery
• charger watts: charger output measured in watts
• charger kwhrs: kilowatt hours produced in the last 60 minutes by the Charge Controller
• charger amps dc: the amount of amperage the Charge Controller is sending to the battery
• battery voltage: current battery voltage
• panel voltage: current voltage from the PV array
NOTE: All OutBack Charge Controller screens are displayed as CC screens on the MATE.
