Outback Power Systems MATE2 - Manual (Page 43)

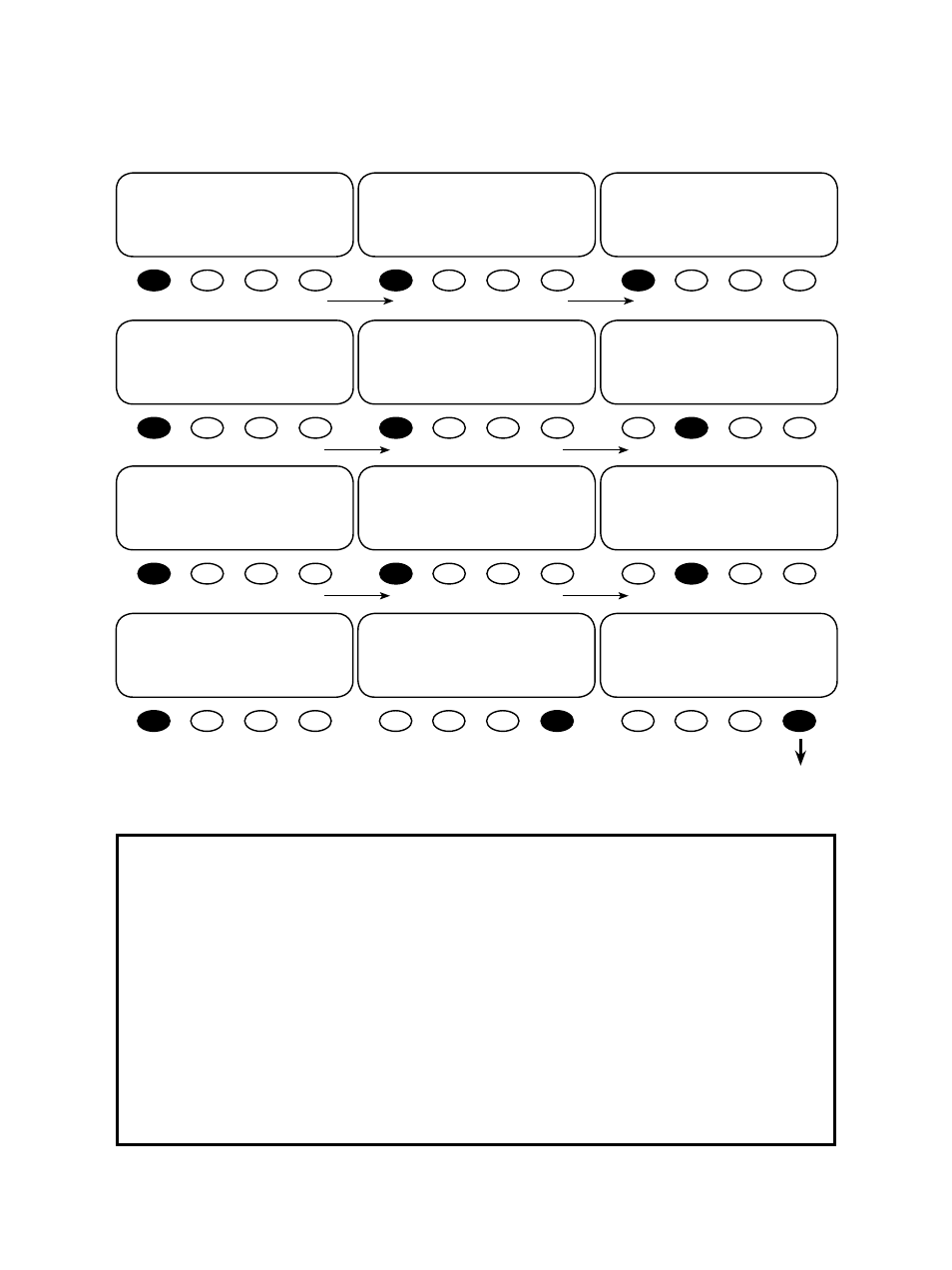

FX STATUS Batt(ery) Screens
STATUS/FX/MODE-------------P00
battery 13.6 vdc
actual
DOWN
STATUS PORT
STATUS/FX/METER-------------P00
battery 14.4 vdc
set point
DOWN
UP TOP PORT
STATUS/FX/MODE-------------P00
battery 13.6 vdc
temp compensated
DOWN
UP TOP PORT
STATUS/FX/BATT---------------P00
absorb 00.0 hrs
time remaining
DOWN
UP TOP PORT
STATUS/FX/BATT---------------P00
float 24.0 hrs
time remaining
DOWN
UP TOP PORT
STATUS/FX/BATT---------------P00
float 13.6 vdc
set point
DOWN
UP TOP PORT
BATT(ERY) Screens
• battery actual: battery voltage as measured by the FX
• battery temp compensated: the Remote Temperature Sensor (RTS) must be connected to this value to be
measured
• absorb set point: charger set point for absorb recharging cycle
• absorb time remaining: time remaining in absorb recharging cycle
• float set point: battery set point for float recharging cycle
• refloat set point: at this battery voltage, the charger restarts the float recharging cycle
• equalize set point: charger set point for equalize recharging cycle
• equalize time remaining: time remaining in equalize recharging cycle
• batt temp: this value, which reflects the battery temperature, is used by the charger when an RTS is connected
to the FX
The BATT MODE values cannot be changed in the STATUS screens.
STATUS/FX/BATT---------------P00
refloat 12.5 vdc
set point
DOWN
UP TOP PORT
STATUS/FX/BATT---------------P00
equalize 00.0 hrs
time remaining
DOWN
UP TOP PORT
STATUS/FX/BATT---------------P00
equalize 14.4 vdc
set point
DOWN
UP TOP PORT
STATUS/FX/BATT---------------P00
batt temp. 255
(not in degree C/F)
DOWN
UP TOP PORT
STATUS/FX/PAGE1-------------------
choose catagory:
MODES METER BATT PG2
STATUS/FX/BATT---------------------
end of battery menu
UP TOP STATUS
Pressing the soft key
brings up more STATUS
categories.
