Hard-Drive Indicator Codes
If an optional SAS backplane is installed in the system, two indicators on each of the hard-drive carriers provide information on the status of the hard drives.
See
Figure 1
-4
and
Table 1
-5
. The SAS backplane firmware controls the drive power
-on/fault indicator.

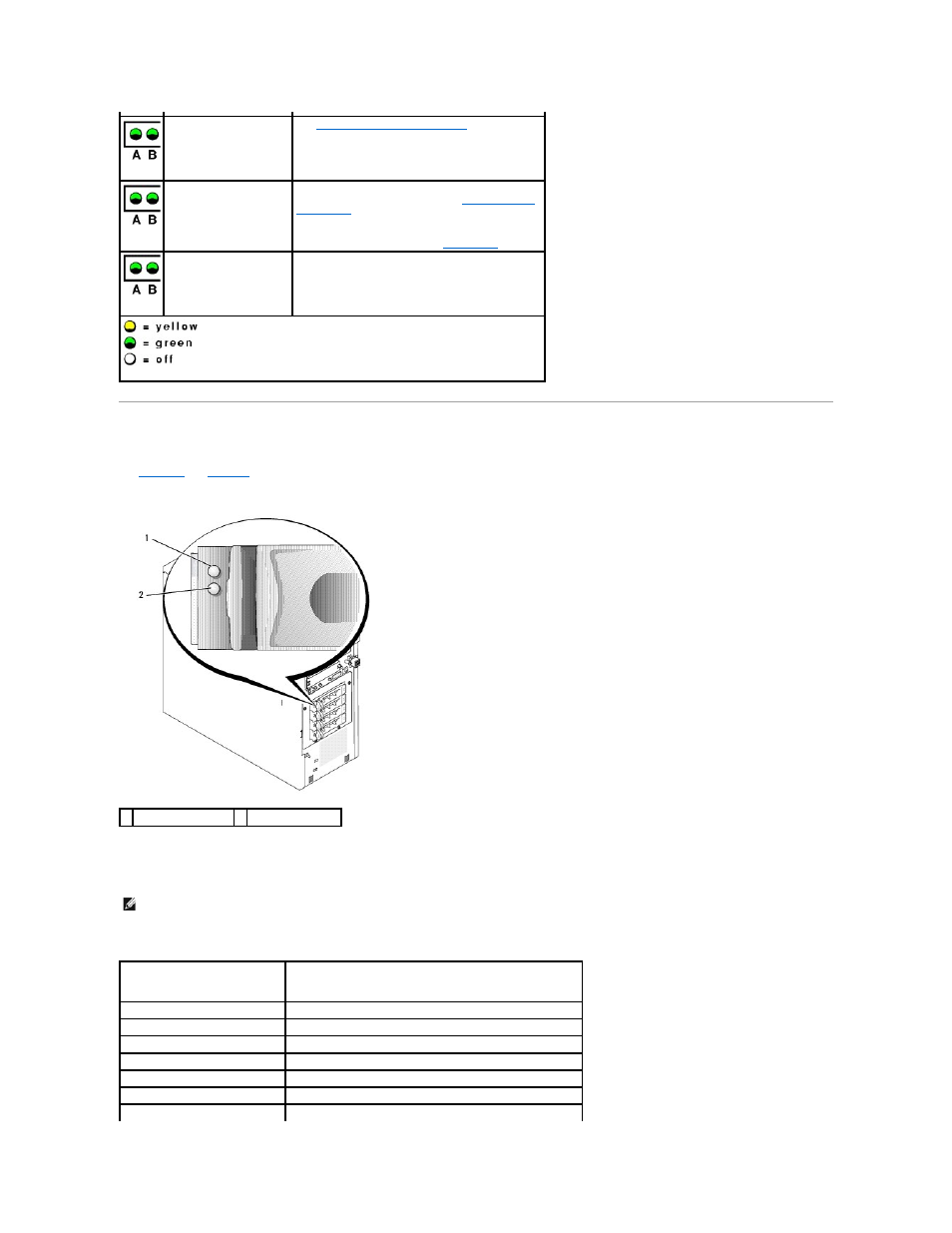

Figure 1-4. Hard-Drive Indicators
Table 1
-5 lists the drive indicator patterns. Different patterns are displayed as drive events occur in the system. For example, if a hard drive fails, the "drive
failed" pattern appears. After the drive is selected for removal, the "drive being prepared for removal" pattern appears, followed by the "drive ready for
insertion or removal" pattern. After the replacement drive is installed, the "drive being prepared for operation" pattern appears, followed by the "drive online"
pattern.
Table 1-5. System Messages
Possible expansion card
failure.
See
Troubleshooting Expansion Cards
.
Other failure.
Ensure that the diskette drive, optical drive, and hard
drive(s) are properly connected. See
Troubleshooting
Your System
" for the appropriate drive(s) installed in
your system.
If the problem persists, see See
Getting Help
."
The system is in a normal
operating condition after
POST.
Information only.
1 drive status indicator 2 drive busy indicator
NOTE:
If a RAID controller is not installed, only the "drive online" indicator pattern
appears. The drive-activity indicator also blinks when the drive is being accessed.
Condition
Indicator Pattern
Identify drive
The green power-on/fault indicator blinks four times per second.
Drive being prepared for removal
The green power-on/fault indicator blinks two times per second.
Drive ready for insertion or removal Both drive indicators are off.
Drive being prepared for operation The green power-on/fault indicator is on.
Drive predicted failure
The power-on/fault indicator slowly blinks green, amber, and off.
Drive failed
The amber power-on/fault indicator blinks four times per second.
Drive rebuilding
The green power-on/fault indicator blinks slowly.
