94 Installing System Components

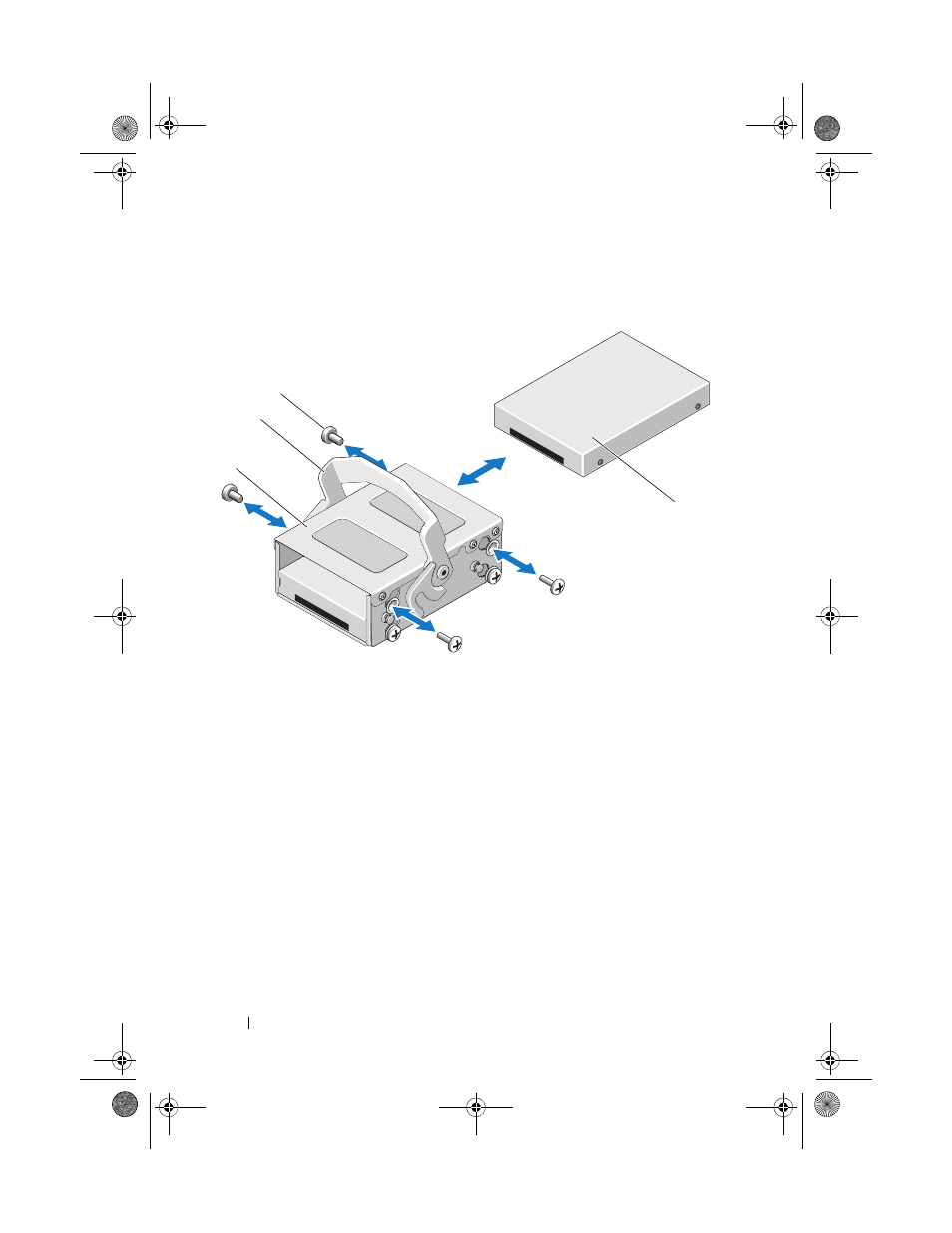

Figure 3-11. Removing and Installing an Internal Hard Drive From the Internal
Hard-Drive Bay
*Screws are supplied along with the hard drives ordered from Dell.
Installing a Hard Drive Into a Hard-Drive Bay
1 Insert the hard drive into the internal hard-drive bay with the connector
end of the drive at the back, until it is flush with the back of the hard-drive
bay. See Figure 3-11.
2 Attach the four screws to secure the hard drive to the hard-drive bracket.
1 internal hard-drive bay 2 release latch
3 screws (4) * 4 internal hard drive
3
1
2
4
