About Your System
LCD Panel Features (Optional)
NOTE:
This section is applicable only to eight–hard-drive systems.
The system's LCD panel provides system information and status and error
messages to signify when the system is operating correctly or when the system
needs attention. See "LCD Status Messages (Optional)" on page 27 for
information on specific status codes.
The LCD backlight lights blue during normal operating conditions and lights
amber to indicate an error condition. When the system is in standby mode,
the LCD backlight switches off after five minutes of inactivity, and can be
turned on by pressing the Select button on the LCD panel. The LCD
backlight remains off if LCD messaging is turned off through the BMC or
iDRAC6 utility, the LCD panel, or other tools.

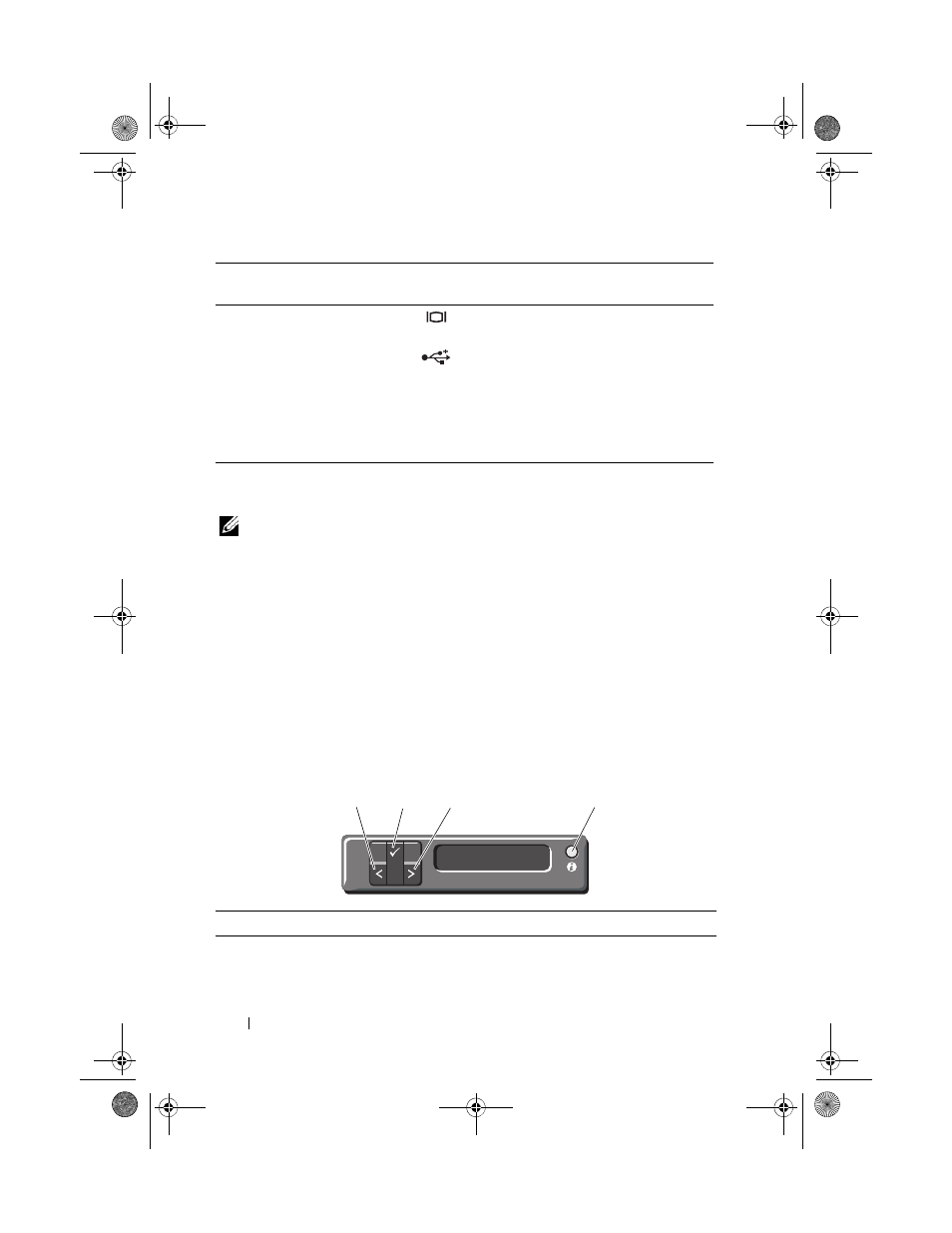

Figure 1-3. LCD Panel Features
6
Video connector
Connects a monitor to the system.
7
USB connector
Connect USB devices to the system.
The ports are USB 2.0-compliant.
8
System identification
panel
A slide-out panel for system information
including the Express Service tag,
embedded NIC MAC address, and
iDRAC6 Enterprise card MAC address.
Item
Buttons
Description
1
Left
Moves the cursor back in one-step increments.
2
Select
Selects the menu item highlighted by the cursor.
Item
Indicator, Button,
or Connector
Icon
Description
1
2
4
3
