142 Installing System Components
5 Disconnect the display module cable from the control panel board. See
Figure 3-28.
6 Remove the two screws that secure the control panel board to the system
chassis and remove the board.

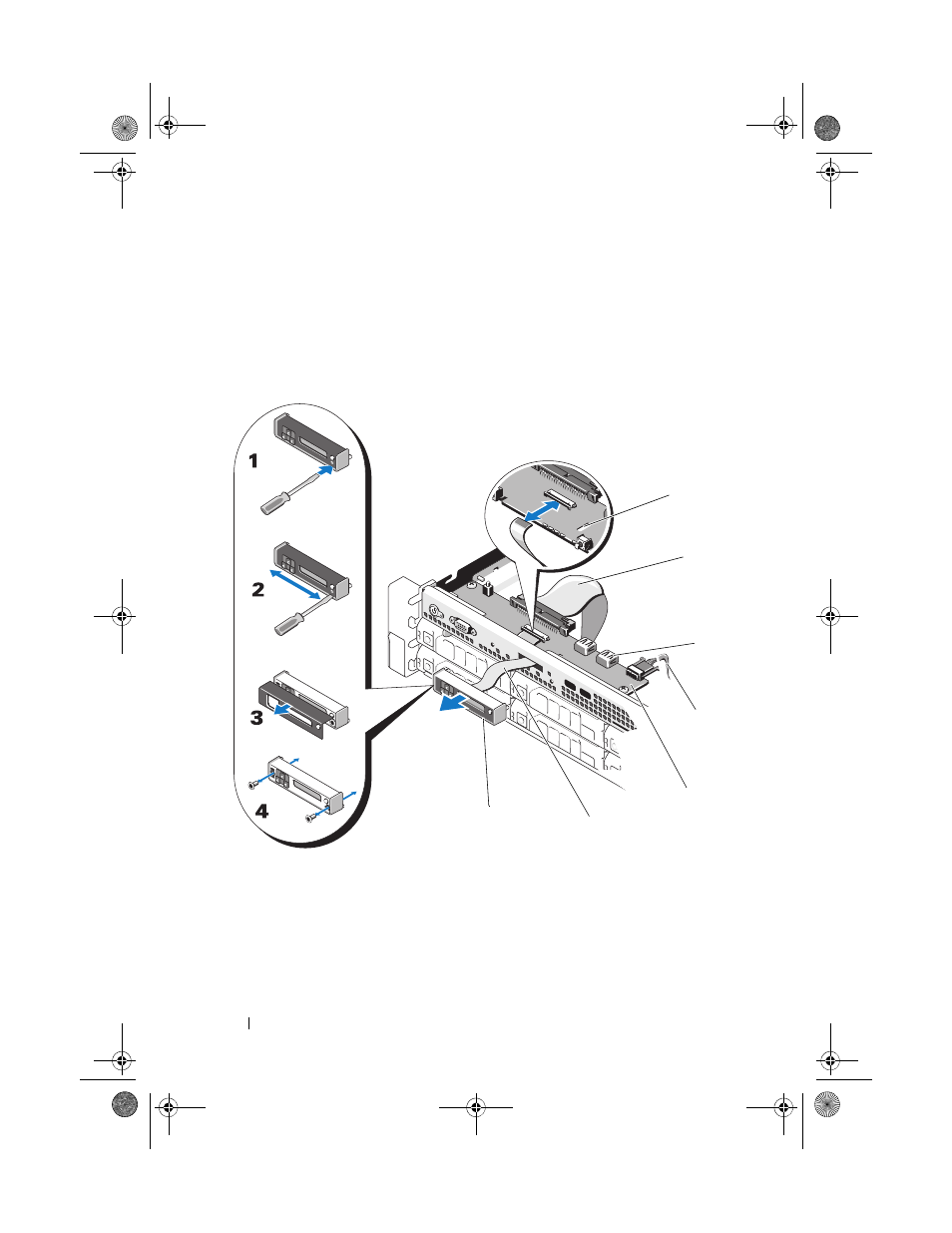

Figure 3-28. Removing and Installing the Control Panel—LCD
1 slot 2 control panel cable
3 USB memory key connector 4 power cable
5 control panel board 6 display module cable
7 LCD display module
1
6
5
2
7
4
3
