Power Indicator Codes

The power supplies have an indicator that shows whether power is present or

whether a power fault has occurred.

• Not lit—AC power is not connected.
• Green—In standby mode, indicates that a valid AC source is connected

to the power supply, and that the power supply is operational. When the

system is on, it also indicates that the power supply is providing DC power

to the system.

• Amber—Indicates a problem with the power supply.
• Alternating green and amber—When hot-adding a power supply, this

indicates that the power supply is mismatched with the other power

supply. Replace the power supply that has the flashing indicator with a

power supply that matches the capacity of the other installed power

supply.

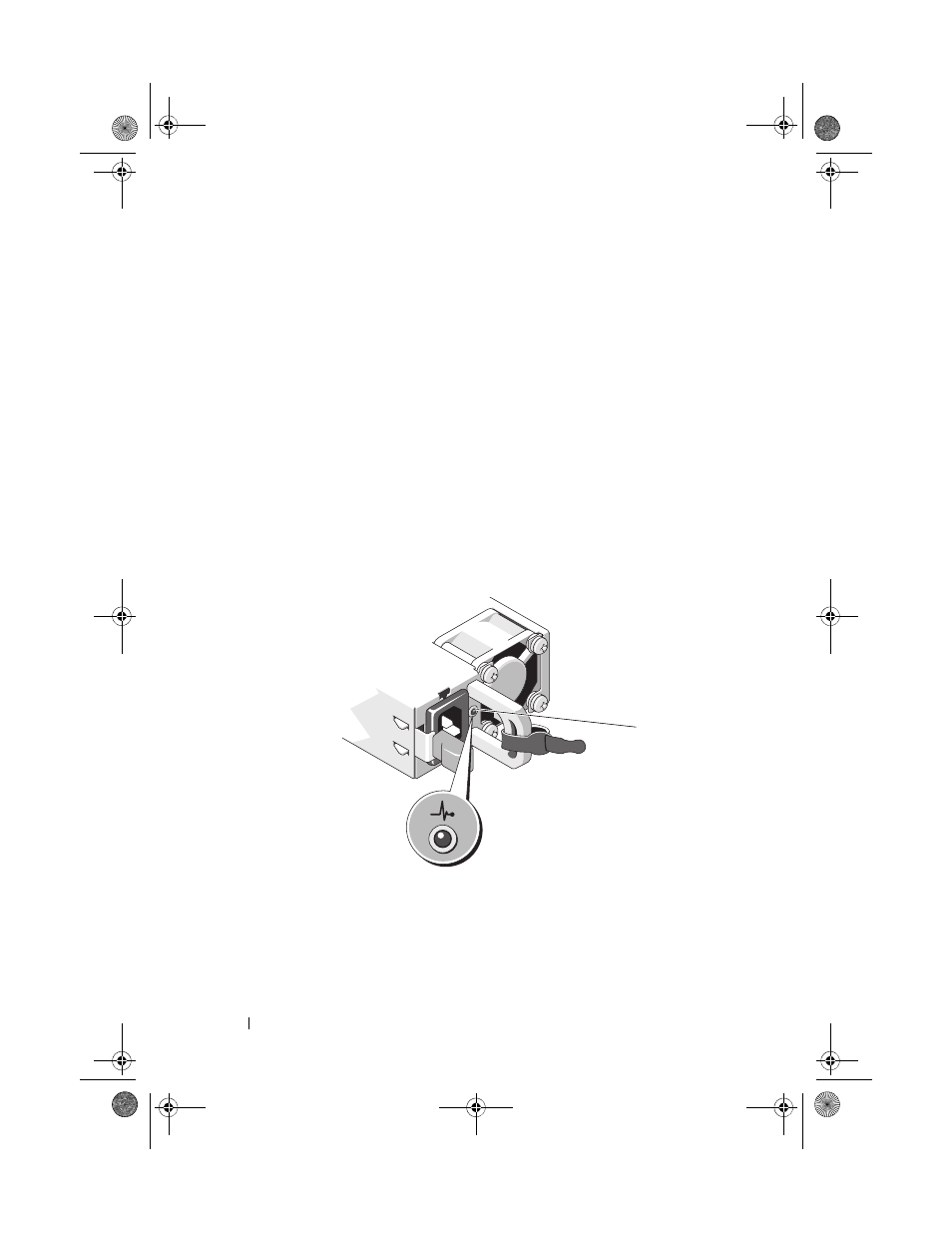

Figure 1-7. Power Supply Status Indicator

1

power supply status

1
