88 Installing System Components

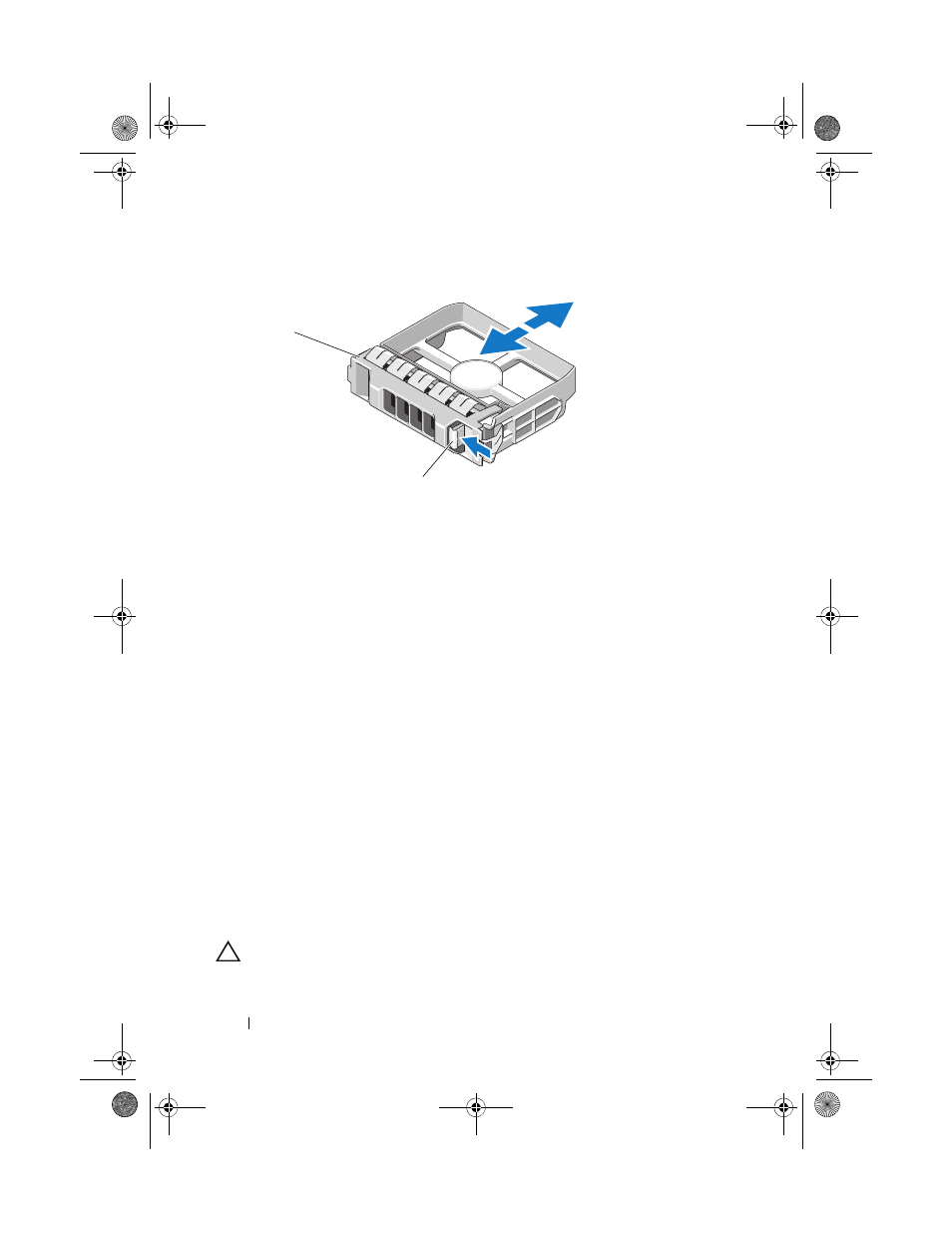

Figure 3-7. Removing and Installing a Hard-Drive Blank
Installing a Hard-Drive Blank
Align the hard-drive blank with the drive bay and insert the blank into the
drive bay until the release lever clicks into place. See Figure 3-7.
Removing a Hard Drive
1 If applicable, remove the front bezel. See "Removing the Front Bezel" on
page 82.
2 Using the RAID management software, prepare the drive for removal. Wait
until the hard-drive indicators on the drive carrier signal that the drive can
be removed safely. See "Hard-Drive Indicator Patterns" on page 19.
If the drive has been online, the green activity/fault indicator flashes as
the drive is powered down. When the drive indicators are off, the drive is
ready for removal.
3 Press the release button and open the drive carrier release handle to
release the drive. See Figure 3-8.
4 Slide the hard drive out of the drive bay.
5 Insert a drive blank in the vacated drive bay. See "Installing a Hard-Drive
Blank" on page 88.
CAUTION: To maintain proper system cooling, all empty hard-drive bays must
have hard-drive blanks installed.
1 hard-drive blank 2 release lever
1
2
