82 Installing System Components
Front Bezel (Optional)
A lock on the bezel restricts access to the power button, optical drive,
and hard drive(s). The LCD panel and navigation buttons are accessible
through the front bezel.
Removing the Front Bezel
1 Using the system key, unlock the bezel.
2 Lift the release latch next to the key lock.
3 Rotate the left end of the bezel away from the front panel.
4 Unhook the right end of the bezel and pull the bezel away from
the system.

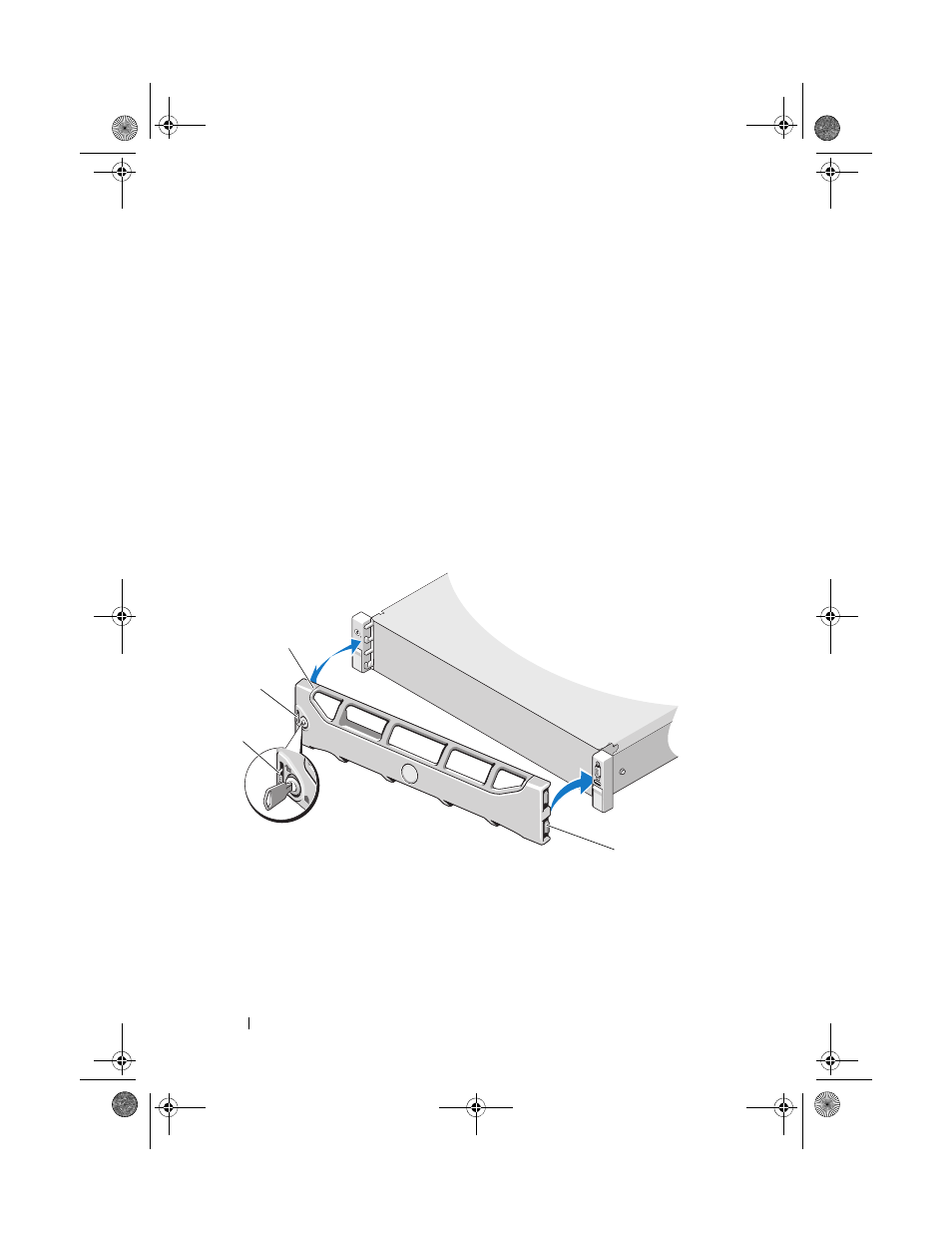

Figure 3-3. Removing and Replacing the Front Bezel
1 release latch 2 keylock
3 bezel 4 hinge tab
3
2
1
4
