Installing System Components 149
11 Pull the blue tab, lift the power distribution board, and move it toward the
front of the system to disengage from the tabs on the power supply bay.
See Figure 3-31 and Figure 3-32.

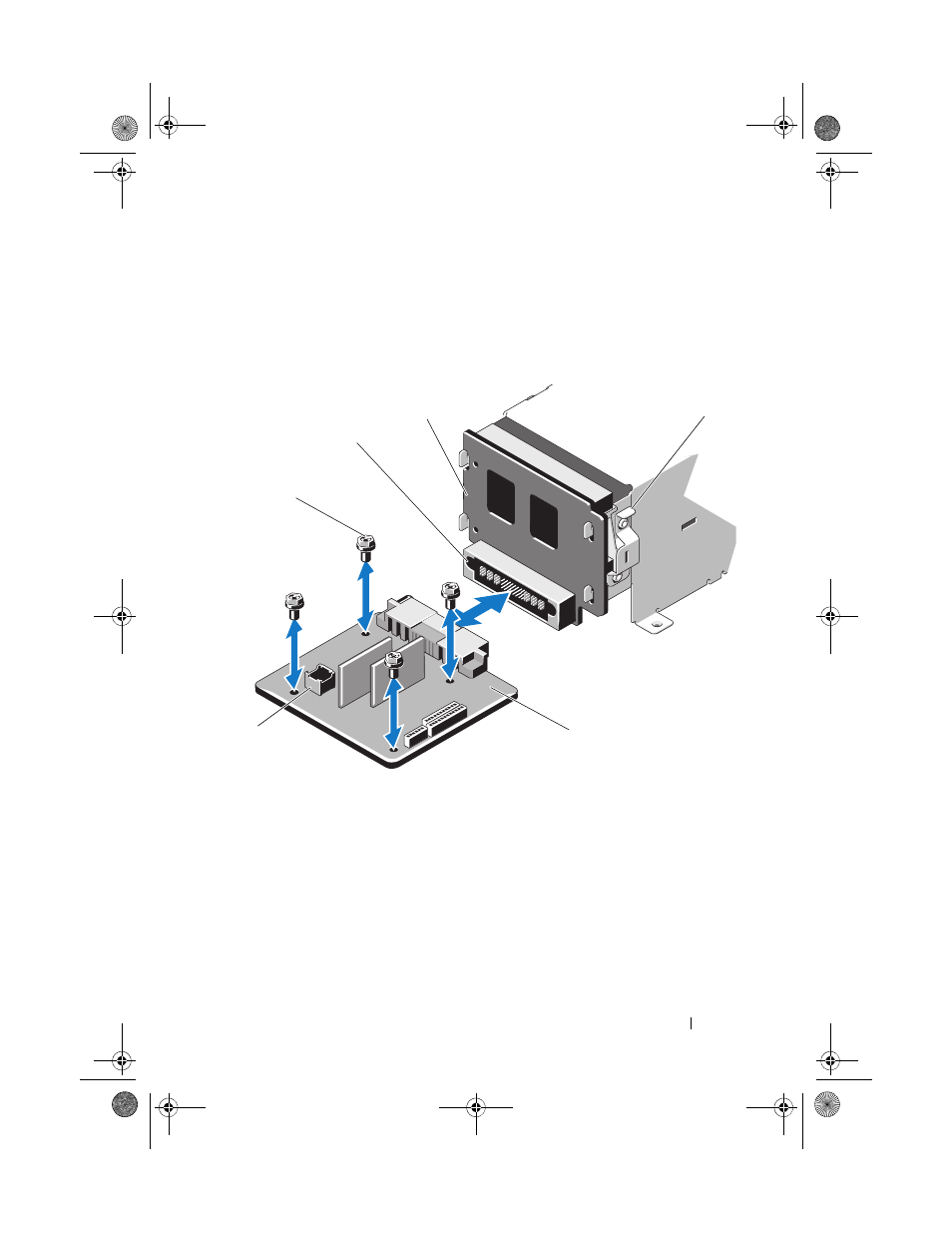

Figure 3-31. Removing and Installing the Power Distribution Board (Eight–Hard-Drive
System)
1 screws (4) 2 power supply connector
3 power-interposer board 4 blue tab
5 power-distribution board 6 fan module cable connector
6
2
1
5
4
3
