Installing System Components

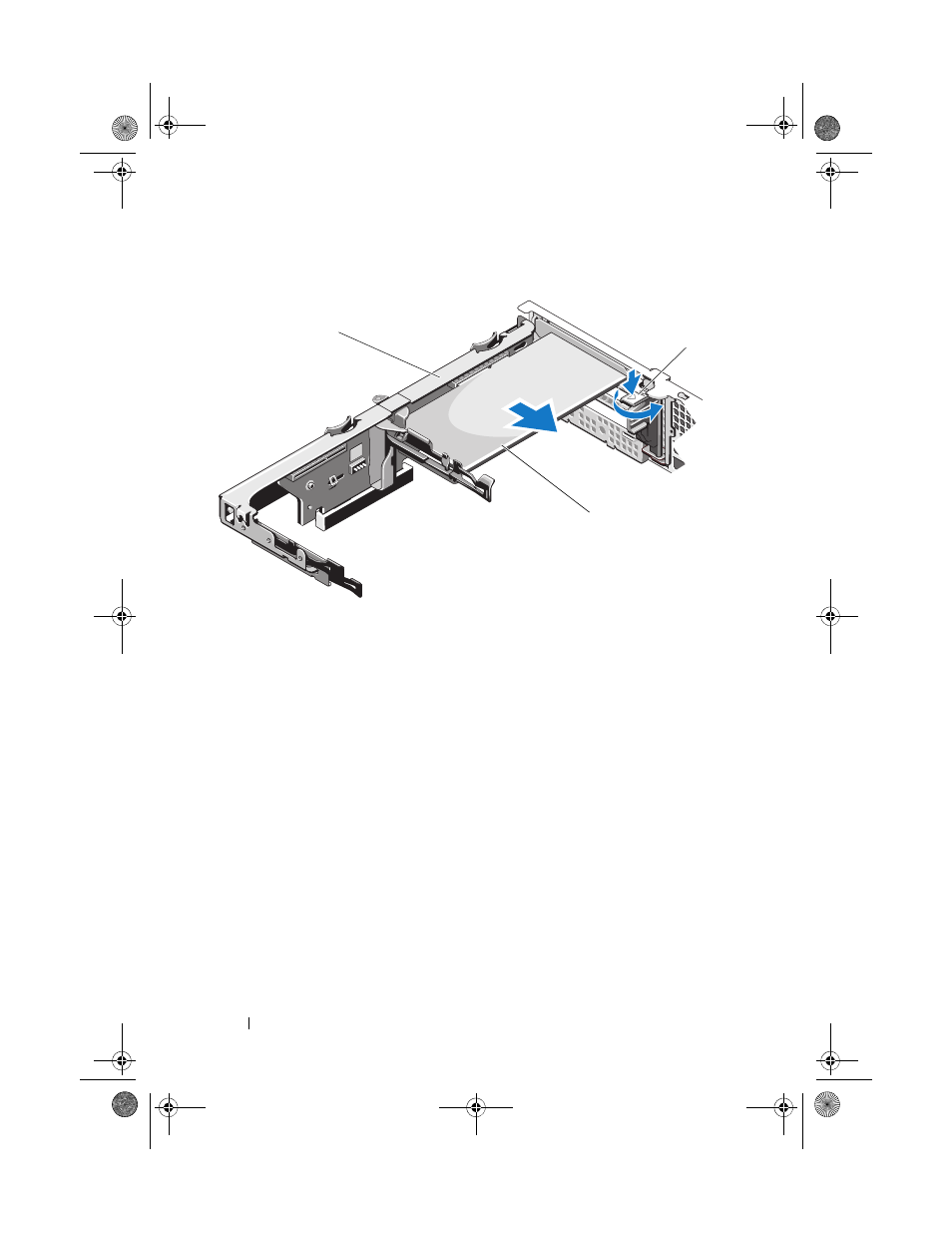

Figure 3-17. Removing and Installing an Expansion Card

9 Connect any cables to the expansion card.

10 Close the system. See "Closing the System" on page 85.
11 Reconnect the system to its electrical outlet and turn the system on,

including any attached peripherals.

1

expansion-card riser

2

expansion-card latch

3

expansion card

3

2

1
