Adding and Replacing Parts 187
2 Remove the hard drive (see "Removing the Hard Drive" on page 160).
3 Remove the hinge cover (see "Removing the Hinge Cover" on page 174).
4 Remove the display assembly (see "Removing the Display Assembly" on
page 179).
5 Remove the keyboard (see "Removing the Keyboard" on page 176).
6 Remove any installed Mini-Cards (see "Removing a Mini-Card" on
page 171).
7 Disconnect the touch pad cable.

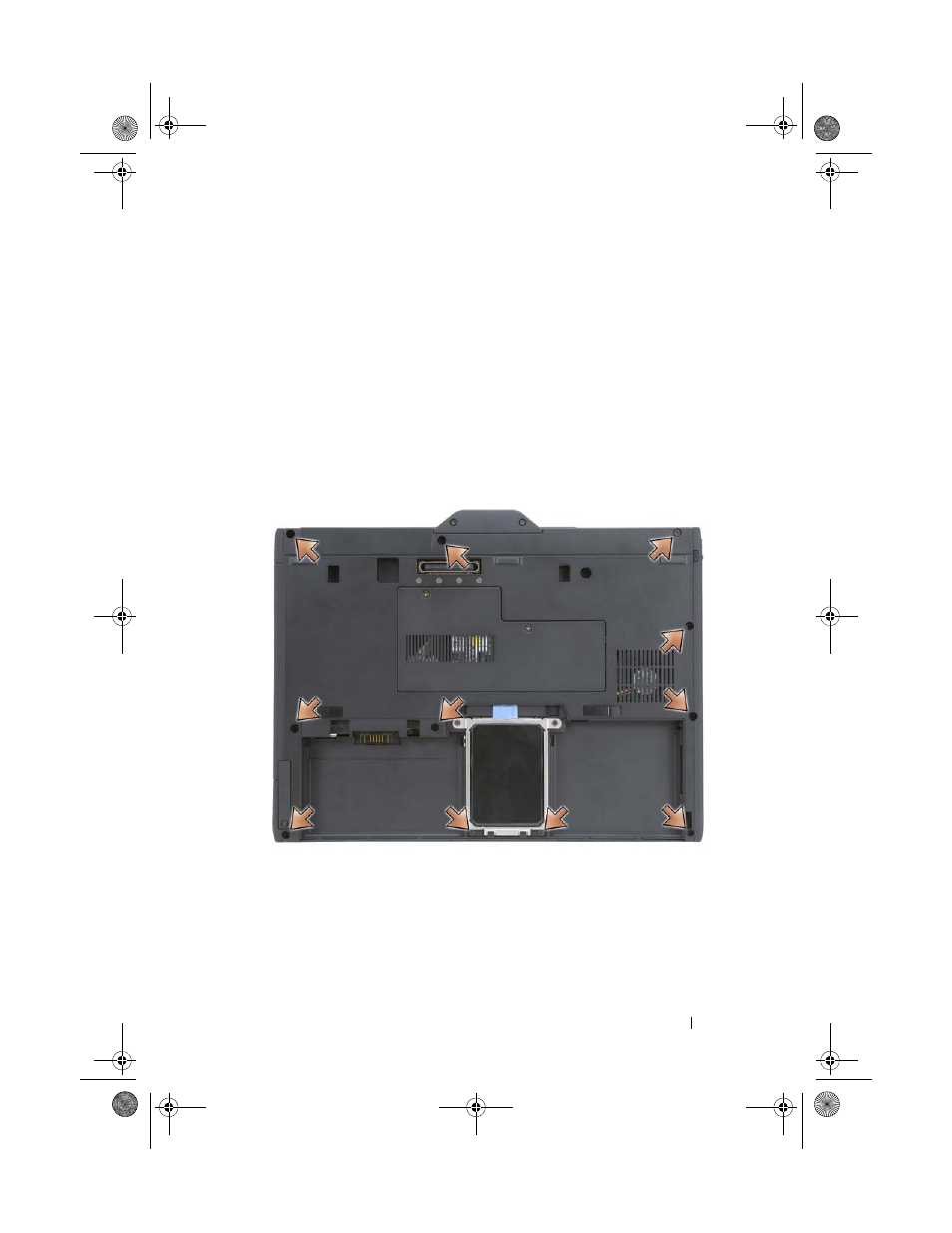

8 Turn the Tablet-PC upside down and remove the eleven M2.5 x 5-mm
screws.
9 From the top side of the Tablet-PC, remove the four M2.5 x 5-mm screws
labeled with a "P".
