176 Adding and Replacing Parts
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as the
back panel) on the Tablet-PC.
Removing the Keyboard
1 Follow the instructions in "Before You Begin" on page 155.
2 Remove the hinge cover (see "Removing the Hinge Cover" on page 174).
NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-
consuming to replace. Be careful when removing and handling the keyboard.
3 Remove the two M2 x 3-mm screws to either side of the rotating hinge at
the top of the keyboard.

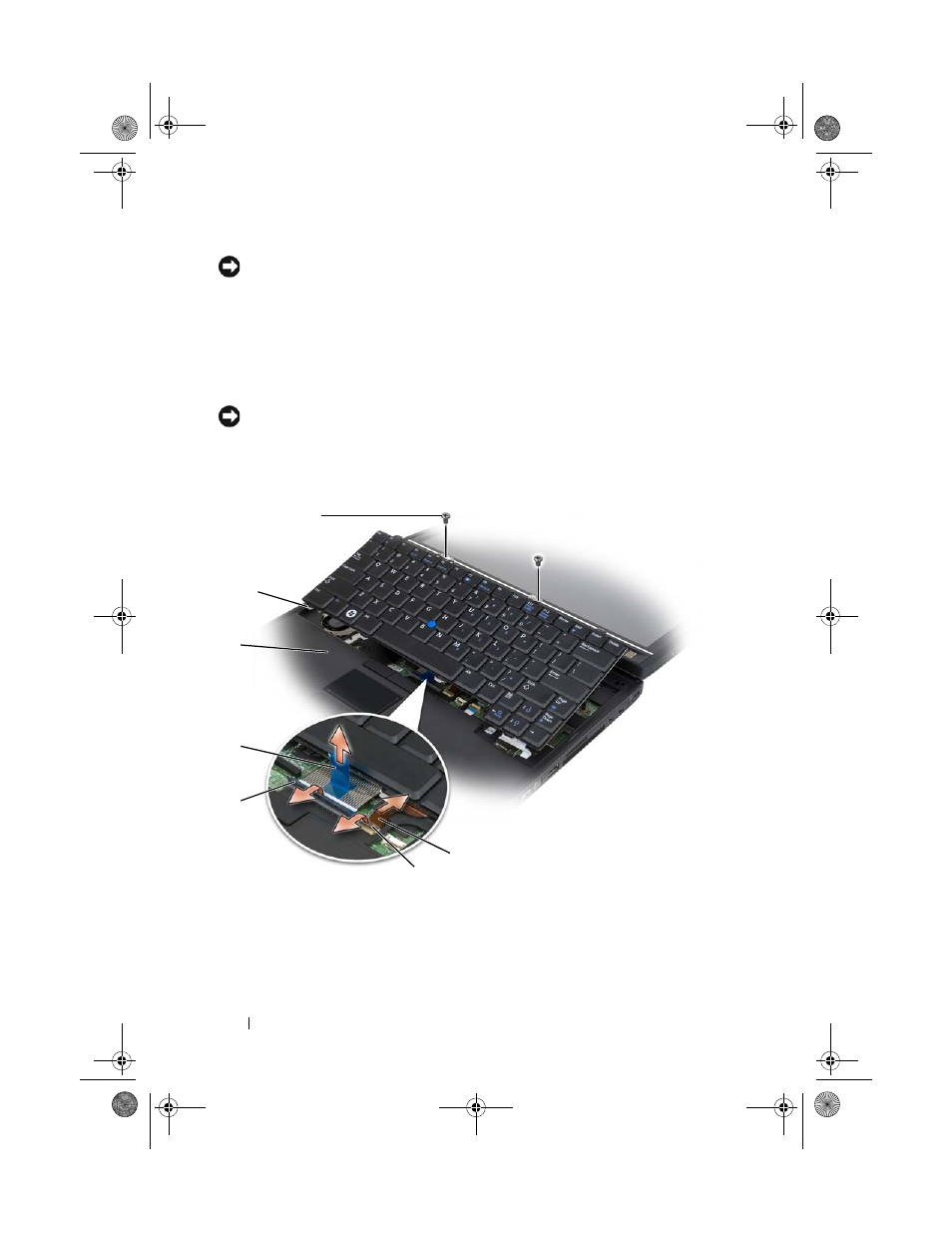

1 screws (2) 2 keyboard tabs (4)
3 palm rest 4 keyboard-cable pull-tab
5 keyboard-cable locking arm 6 track stick-cable locking arm
7 track stick cable
2
1
3
4
5
6
7
